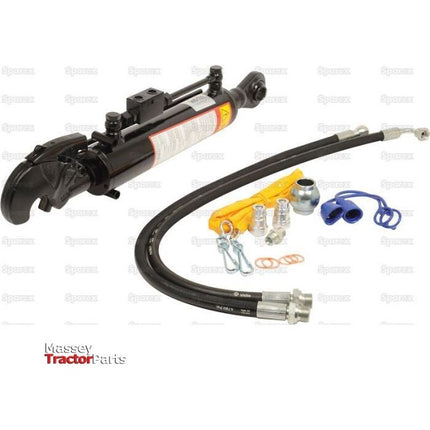

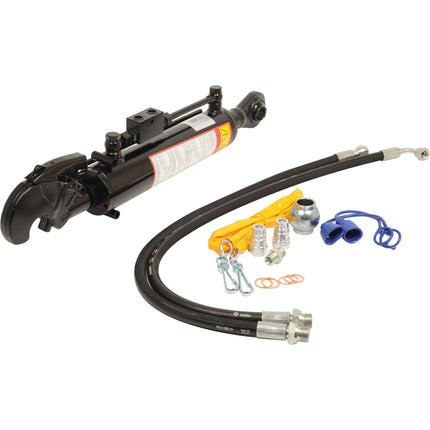

Introducing the Hydraulic Top Link (Cat.1/2) with a robust Cylinder Bore of 50mm. This versatile hydraulic top link is designed for optimal performance, featuring a minimum length of 520mm and a maximum length of 735mm. It comes complete with a hose set, chain & ball, and a marker label equipped with a Q.R CBM Hook for easy attachment.
Product Specifications
-
A (mm): 60
-
Brand: Sparex
-
Category Implement End: 2
-
Category Tractor End: 1
-
Category: 1/2
-
Check Valve Position: Side
-
Cylinder Bore (mm): 50
-
Implement End: Q.R CBM Hook
-
Lift Capacity @ 180 bar: 2300 kg
-
Maximum Length (mm): 735
-
Minimum Length (mm): 520
-
Related Products: 32251, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
-
Rod Diameter (mm): 30
-
Suitable for Tractors up to: 60hp (45kW)
-
Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
-
Tariff Code: 8412212090
-
Thrust @ 180 bar: 3600 kg
-
Tractor End Fixing: Ball End
-
Tractor End: Ball
Compatibility Information
This hydraulic top link is designed for universal compatibility and is not associated with any specific make or model.
Manufacturer Information
This product does not correspond to any particular OEM part number, ensuring a broad application across various tractor models.
