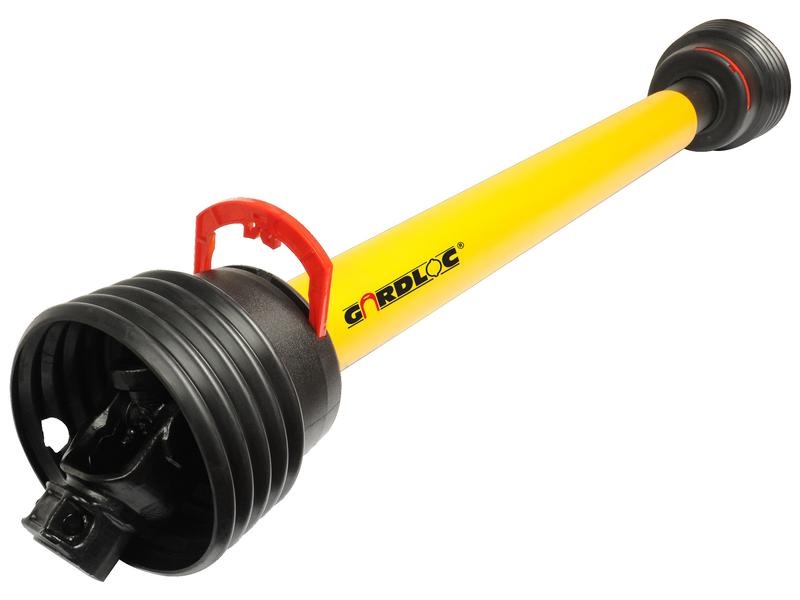

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128674

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128674

SKU:SP-S.128674

Normaler Preis €160,95 EUR
Normaler Preis Verkaufspreis €160,95 EUR
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet

Niedriger Lagerbestand: 45 verbleibend

Anzahl
Default Title

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.128674

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this PTO shaft is compatible with various implements and tractors, making it an essential addition to your equipment.

Key Features:

  • Alternative Part Numbers: 26366, 162392
  • Brand: GARDLOC
  • Guard Type: Gardloc
  • HP Rating: 16 HP @ 540 RPM, 24 HP @ 1000 RPM
  • HP Rating Range: Up to 54 HP @ 540 RPM
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: AB1/A1
  • Kilowatt Power Rating: 12 kW @ 540 RPM, 18 kW @ 1000 RPM
  • Lz Length: 1010 mm
  • PTO Series: AB1/A1
  • Related Products: 166692
  • Replacement Guard: S.163811
  • Tariff Code: 8483908990
  • Torque: 210 Nm (210-334 Nm range)
  • Total Closed Length: 1193 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Tube Reference: 12502/12503
  • Universal Joint Dimensions: 22 x 54 mm

This GARDLOC PTO Shaft is engineered to meet the demands of modern farming, ensuring optimal performance and longevity. Whether you're replacing an old shaft or upgrading your equipment, this product is designed to fit seamlessly into your existing setup.

For more information or to purchase, please refer to the Sparex part number: S.128674.

Additional Product Information

Product Specifications

Alternative to: 26366, 162392
Brand: GARDLOC
Guard Type: Gardloc
HP Rating @ 540RPM: 16
HP Rating @ 1000RPM: 24
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: AB1/A1
Kilowatt Power Rating @ 540RPM: 12
Kilowatt Power Rating @ 1000RPM: 18
Lz Length (mm): 1010
PTO Series: AB1/A1
Related products: 166692
Replacement Guard: S.163811
Tariff Code: 8483908990
Torque (Nm): 210
Torque: 210-334Nm
Total Closed Length (mm): 1193
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12502/12503
Universal Joint Dimensions: 22 x 54mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Vollständige Details anzeigen

GARDLOC PTO Shaft - 1010mm, 1 3/8" x 6 Spline Q.R.

- **High HP Rating:** 16 HP @ 540 RPM, 24 HP @ 1000 RPM, up to 54 HP @ 540 RPM
- **Durable Construction:** Triangle tube profile, 12502/12503 tube reference
- **Versatile Compatibility:** 1 3/8'' x 6 Spline Q.R. implement and tractor ends, AB1/A1 PTO series
- **Reliable Performance:** 210 Nm torque, 210-334 Nm range
- **Sparex Part Number:** S.128674 for easy identification and ordering
