Vendor: Sparex - SKU:

Hydraulic Top Link (Cat.-/3) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 635mm. | Sparex Part No.S.32931

Hydraulic Top Link (Cat.-/3) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 635mm. | Sparex Part No.S.32931

SKU:SP-S.32931

Normaler Preis £638.88 GBP
Normaler Preis £638.88 GBP Verkaufspreis £638.88 GBP
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet

Niedriger Lagerbestand: 7 verbleibend

Anzahl
Default Title

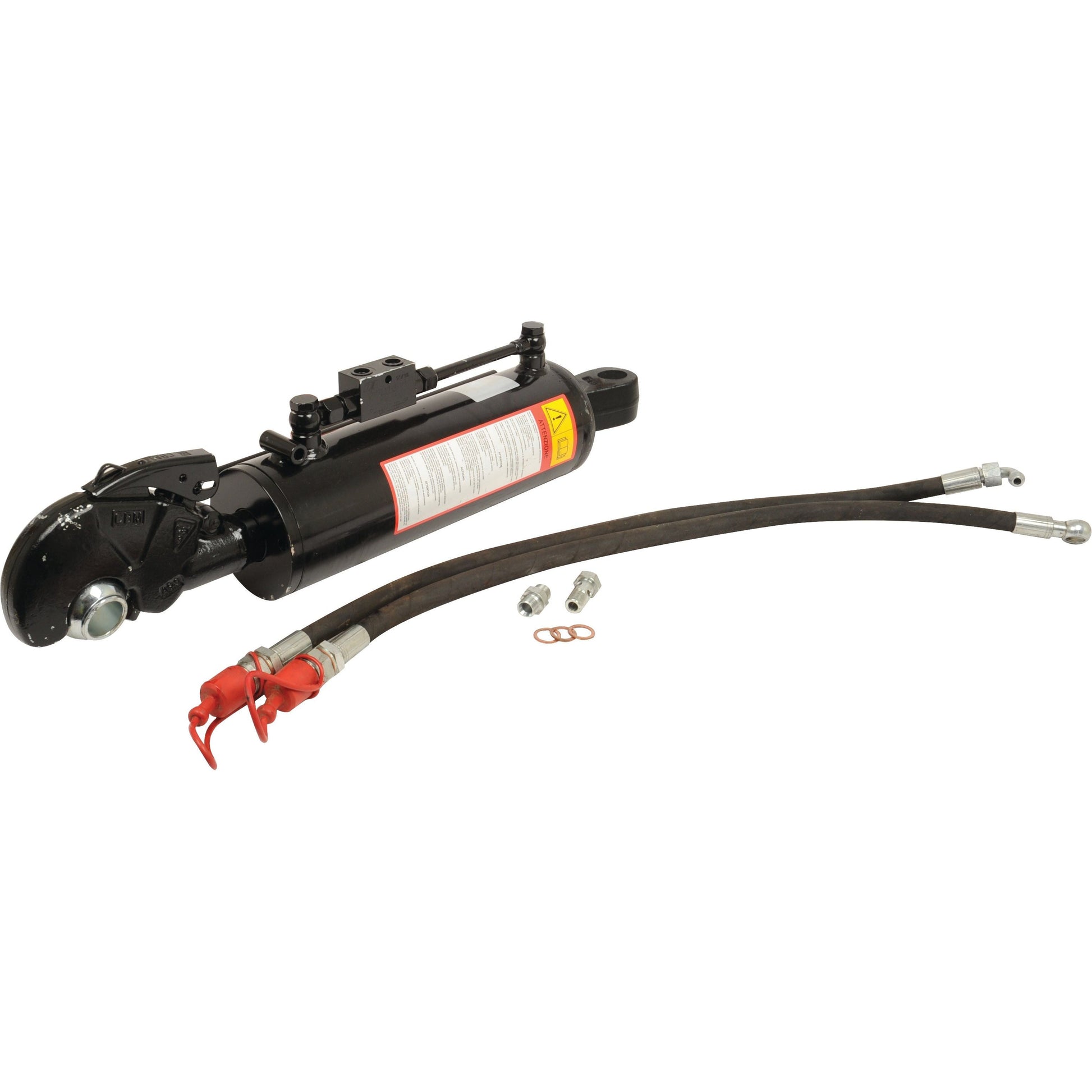

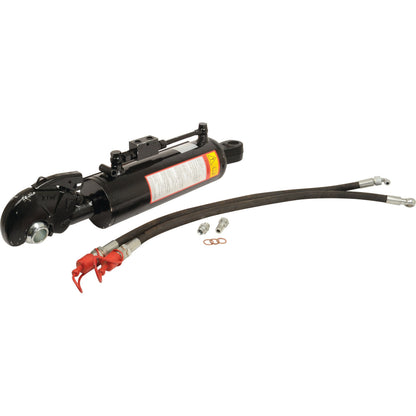

Hydraulic Top Link (Cat.-/3) with Q.R CBM Hook - Sparex Part No. S.32931

Enhance your agricultural equipment with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this hydraulic linkage features a minimum length of 635mm and a maximum length of 905mm. It comes complete with a hose set, chain & ball, and a marker label (without knuckle & pin) for easy installation and operation.

Product Specifications
  • Alternative to: 399711, 399712, 399713, 399714
  • Brand: Sparex
  • Category Implement End: 3
  • Check Valve Position: Top
  • Cylinder Bore: 80mm
  • Implement End: Q.R CBM Hook
  • Lift Capacity @ 180 bar: 6930 kg
  • Maximum Length: 905mm
  • Minimum Length: 635mm
  • Rod Diameter: 40mm
  • Suitable for Tractors up to: 180hp (135kW)
  • Thrust @ 180 bar: 9240 kg
  • Tariff Code: 8412212090
  • Related Products: 10287, 10288, 10289, 10290, 10292, 32255, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 148196, 148197
Compatibility Information

This hydraulic top link is not associated with any specific make or model, making it a versatile choice for various applications.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad compatibility across different machinery.

Additional Product Information

Product Specifications

Alternative to: 399711, 399712, 399713, 399714
Brand: Sparex
Category Implement End: 3
Category: -/3
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 905
Minimum Length (mm): 635
Related products: 10287, 10288, 10289, 10290, 10292, 32255, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 148196, 148197
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label without knuckle & pin
Tariff Code: 8412212090
Thrust kgs @180 (bar): 9240

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Vollständige Details anzeigen

Hydraulic Top Link with Q.R CBM Hook - Sparex S.32931

- **Heavy-duty hydraulic top link with a robust Q.R CBM hook for secure implement attachment.**
- **High lift capacity of 6930 kg at 180 bar, suitable for demanding agricultural tasks.**
- **Durable construction with a cylinder bore of 80mm and a rod diameter of 40mm.**
- **Versatile compatibility, suitable for tractors up to 180hp (135kW) and various agricultural implements.**
- **Complete with a hose set, chain & ball, and a marker label for easy installation and operation.**
