Weasler PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/4'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.155511

Weasler PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/4'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.155511

SKU:SP-S.155511

Normaler Preis €1.209,95 EUR
Normaler Preis Verkaufspreis €1.209,95 EUR
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet

Niedriger Lagerbestand: 9 verbleibend

Anzahl
Default Title

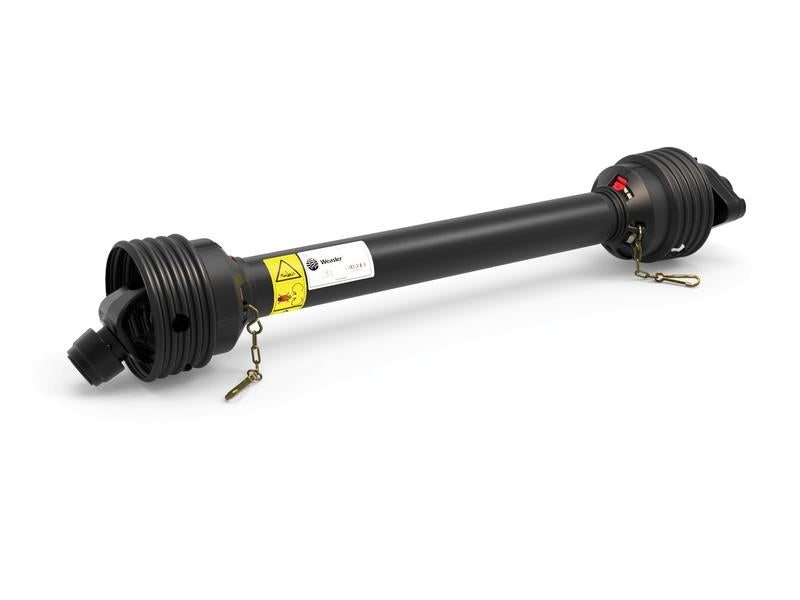

Weasler PTO Shaft - 1210mm Length, 1 3/8'' x 6 Spline Q.R. to 1 3/4'' x 6 Spline Shear Bolt Limiter

Introducing the Weasler PTO Shaft, a high-performance solution designed for optimal power transfer and durability. This PTO shaft is engineered to meet the demands of various agricultural and industrial applications.

Product Specifications:

  • Brand: Weasler
  • Clutch Setting: 4180 Nm
  • Guard Type: Easylock
  • HP Rating @ 540 RPM: 100 HP
  • HP Rating Range @ 540 RPM: 55 to 119 HP
  • Implement End: 1 3/4'' x 6 Spline Shear Bolt Limiter
  • Italian Series: AB8N/A8N
  • Kilowatt Power Rating @ 540 RPM: 75 kW
  • Lz Length: 1210 mm
  • PTO Series: AB8N/A8N
  • Reference: 1680-6818-12124
  • Related Products: 7539, 165467
  • Shearbolt Clutch Bolt Ø: 12 mm
  • Shearbolt Clutch Radius: 56 mm
  • Tariff Code: 8483908990
  • Torque: 2255 - 3225 Nm
  • Total Closed Length: 1498 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Tube Reference: 12512/12522
  • Universal Joint Dimensions: 35 x 106.5 mm

This Weasler PTO Shaft is not associated with any particular OEM part number, making it a versatile choice for various machinery. With its robust construction and reliable performance, it is ideal for those seeking a dependable PTO solution.

For more information or to purchase, refer to the Sparex Part Number: S.155511.

Additional Product Information

Product Specifications

Brand: Weasler
Clutch Setting Nm: 4180
Guard Type: Easylock
HP Rating @ 540RPM: 100
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/4'' x 6 Spline Shear Bolt Limiter
Italian Series: AB8N/A8N
Kilowatt Power Rating @ 540RPM: 75
Lz Length (mm): 1210
PTO Series: AB8N/A8N
Reference: 1680-6818-12124
Related products: 7539, 165467
Shearbolt Clutch Bolt Ø mm: 12
Shearbolt Clutch Radius mm: 56
Tariff Code: 8483908990
Torque (Nm): 2316
Torque: 2255 - 3225Nm
Total Closed Length (mm): 1498
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12512/12522
Universal Joint Dimensions: 35 x 106.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
