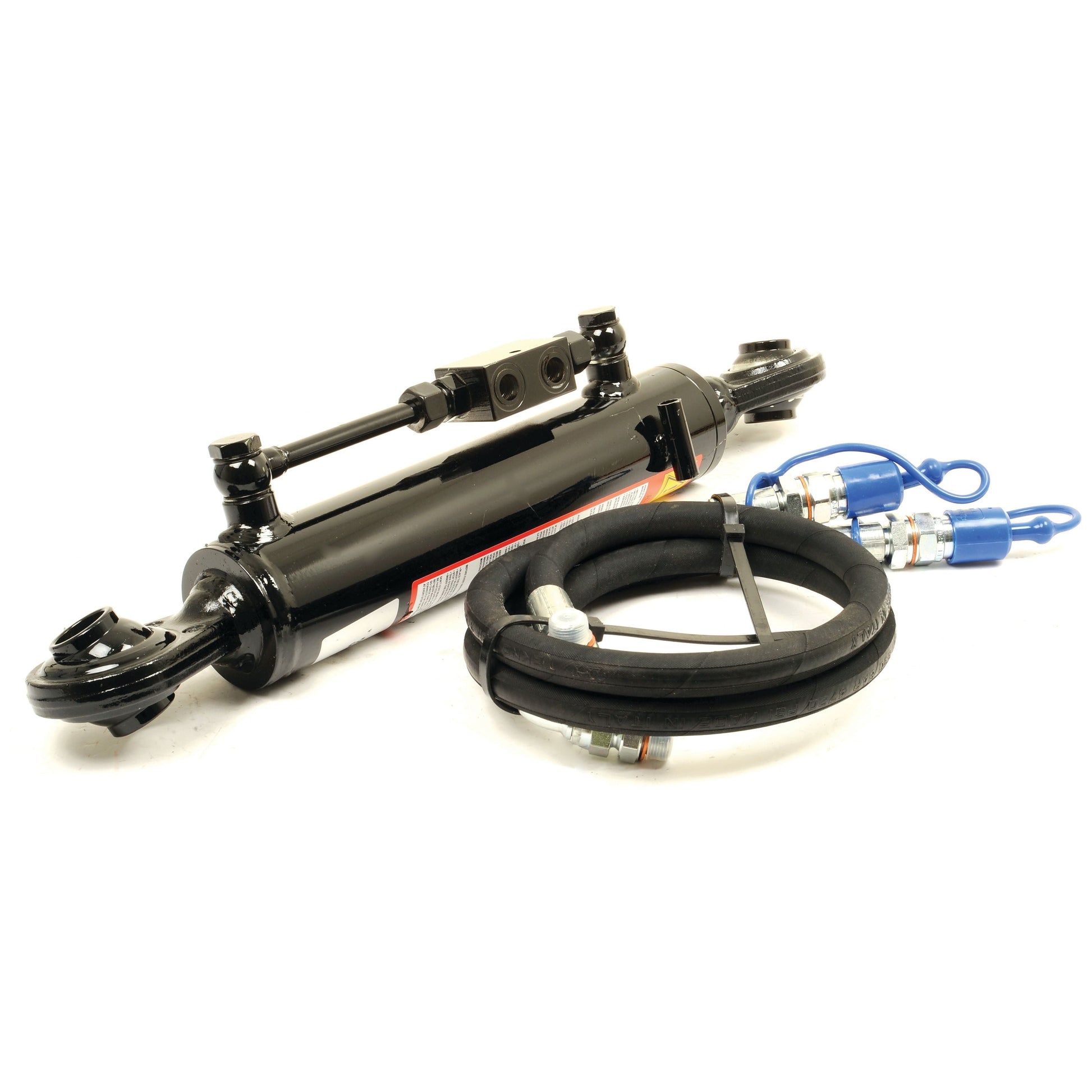

Hydraulic Top Link (Cat.1/1) Ball and Ball, Cylinder Bore: 50mm, Min. Length : 350mm. | Sparex Part No.S.399231

Hydraulic Top Link (Cat.1/1) Ball and Ball, Cylinder Bore: 50mm, Min. Length : 350mm. | Sparex Part No.S.399231

SKU:SP-S.399231

Normaler Preis £225.85 GBP
Normaler Preis £225.85 GBP Verkaufspreis £225.85 GBP
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet

Niedriger Lagerbestand: 6 verbleibend

Anzahl
Default Title

Hydraulic Top Link (Cat.1/1) - Ball and Ball, Cylinder Bore: 50mm

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This versatile top link features a minimum length of 350mm and a maximum length of 440mm, making it suitable for a variety of tractor models. Each unit is supplied with a Hose Set for easy installation and use.

Product Specifications
  • A (mm): 60
  • Brand: Sparex
  • Category Implement End: 1
  • Category Tractor End: 1
  • Category: 1/1
  • Check Valve Position: Top
  • Cylinder Bore (mm): 50
  • Implement End: Ball
  • Lift Capacity (kgs @ 180 bar): 2300
  • Maximum Length (mm): 440
  • Minimum Length (mm): 350
  • Related Products: 32251, 33137, 33144, 33158, 39965, 39966, 39967, 39968
  • Rod Diameter (mm): 30
  • Suitable for Tractors up to: 60hp (45kW)
  • Supplied with: Hose Set
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 3600
  • Tractor End Fixing: Fixed
  • Tractor End: Ball
Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring a broad compatibility across various tractor brands.

Additional Product Information

Product Specifications

A (mm): 60
Brand: Sparex
Category Implement End: 1
Category Tractor End: 1
Category: 1/1
Check Valve Position: Top
Cylinder Bore (mm): 50
Implement End: Ball
Lift kgs @180 bar: 2300
Maximum Length (mm): 440
Minimum Length (mm): 350
Related products: 32251,33137,33144,33158,39965,39966,39967,39968
Rod Ø (mm): 30
Suitable for Tractors up to HP/Kw: 60hp (45kW)
Supplied with: Hose Set
Tariff Code:8412212090
Thrust kgs @180 (bar): 3600
Tractor End Fixing: Fixed
Tractor End: Ball

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Vollständige Details anzeigen

Hydraulic Top Link - Cat.1/1, 50mm Bore, 350mm Min. Length

- **Heavy-duty hydraulic top link with a 50mm cylinder bore for powerful lifting capacity.**
- **High lift capacity of 2300 kgs @ 180 bar, ideal for demanding agricultural tasks.**
- **Universal fitment, compatible with a wide range of tractors up to 60hp (45kW).**
- **Adjustable length from 350mm to 440mm, providing flexibility for various applications.**
- **Includes a hose set for easy installation and connection to your tractor's hydraulic system.**
