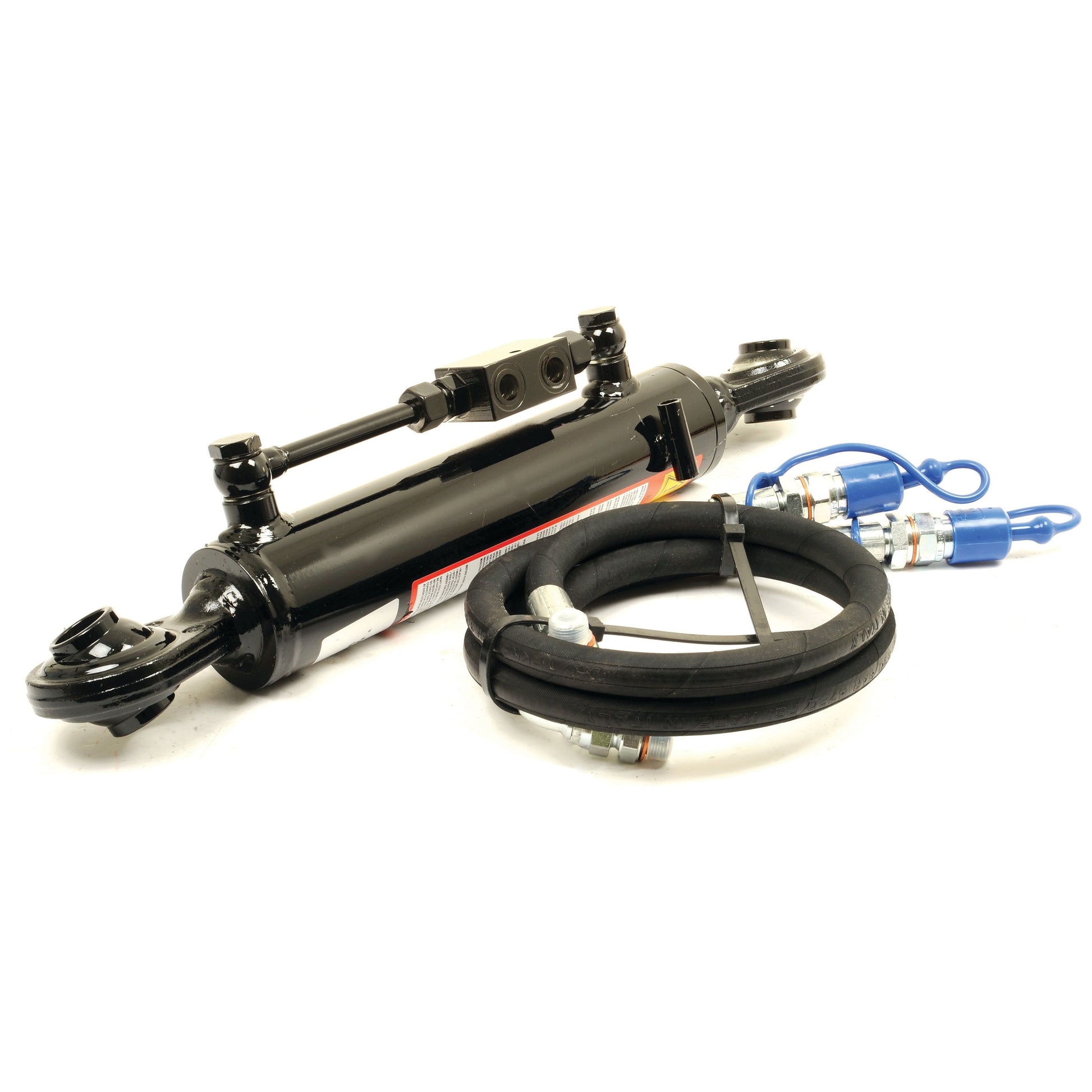

Hydraulic Top Link (Cat.1/1) Ball and Ball, Cylinder Bore: 50mm, Min. Length : 470mm. | Sparex Part No.S.399721

Hydraulic Top Link (Cat.1/1) Ball and Ball, Cylinder Bore: 50mm, Min. Length : 470mm. | Sparex Part No.S.399721

SKU:SP-S.399721

Normaler Preis £225.85 GBP
Normaler Preis £225.85 GBP Verkaufspreis £225.85 GBP
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet

Niedriger Lagerbestand: 23 verbleibend

Anzahl
Default Title

Introducing the Hydraulic Top Link (Cat.1/1) by Sparex, designed for optimal performance in agricultural applications. This robust hydraulic top link features a cylinder bore of 50mm and offers a versatile length range, with a minimum length of 470mm and a maximum length of 680mm. Each unit is supplied with a hose set for easy installation and use.

Product Specifications
  • A (mm): 60
  • Brand: Sparex
  • Category Implement End: 1
  • Category Tractor End: 1
  • Category: 1/1
  • Check Valve Position: Side
  • Cylinder Bore (mm): 50
  • Implement End: Ball
  • Lift Capacity (kgs @ 180 bar): 2300
  • Maximum Length (mm): 680
  • Minimum Length (mm): 470
  • Related Products: 32251, 33137, 33144, 33158, 39965, 39966, 39967, 39968
  • Rod Diameter (mm): 30
  • Suitable for Tractors up to: 60hp (45kW)
  • Supplied with: Hose Set
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 3600
  • Tractor End Fixing: Fixed
  • Tractor End: Ball
Suitable For Information

This hydraulic top link is compatible with the following models: Same DELFINO 30, DELFINO 32, DELFINO 35, SOLARIS 25, SOLARIS 35, SOLARIS 45, SOLARIS 55.

Manufacture Information

Please note that this product is not associated with any particular OEM part number.

Additional Product Information

Product Specifications

A (mm): 60
Brand: Sparex
Category Implement End: 1
Category Tractor End: 1
Category: 1/1
Check Valve Position: Side
Cylinder Bore (mm): 50
Implement End: Ball
Lift kgs @180 bar: 2300
Maximum Length (mm): 680
Minimum Length (mm): 470
Related products: 32251,33137,33144,33158,39965,39966,39967,39968
Rod Ø (mm): 30
Suitable for Tractors up to HP/Kw: 60hp (45kW)
Supplied with: Hose Set
Tariff Code:8412212090
Thrust kgs @180 (bar): 3600
Tractor End Fixing: Fixed
Tractor End: Ball

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

Same
DELFINO 30, DELFINO 32, DELFINO 35, SOLARIS 25, SOLARIS 35, SOLARIS 45, SOLARIS 55
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Vollständige Details anzeigen

Cat.1/1 Hydraulic Top Link - 50mm Bore, 470mm Min. Length

- **Heavy-duty hydraulic top link for tractors up to 60hp (45kW)**
- **Category 1/1 compatibility for wide tractor and implement applications**
- **50mm cylinder bore for powerful lifting capacity (2300 kgs @ 180 bar)**
- **Adjustable length from 470mm to 680mm for versatile use**
- **Includes a hose set for easy installation and connection**
