Hydraulic Top Link (Cat.28mm/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 565mm. | Sparex Part No.S.399893

Hydraulic Top Link (Cat.28mm/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 565mm. | Sparex Part No.S.399893

SKU:SP-S.399893

Normaler Preis £572.40 GBP
Normaler Preis £572.40 GBP Verkaufspreis £572.40 GBP
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet

Niedriger Lagerbestand: 1 verbleibend

Anzahl
Default Title

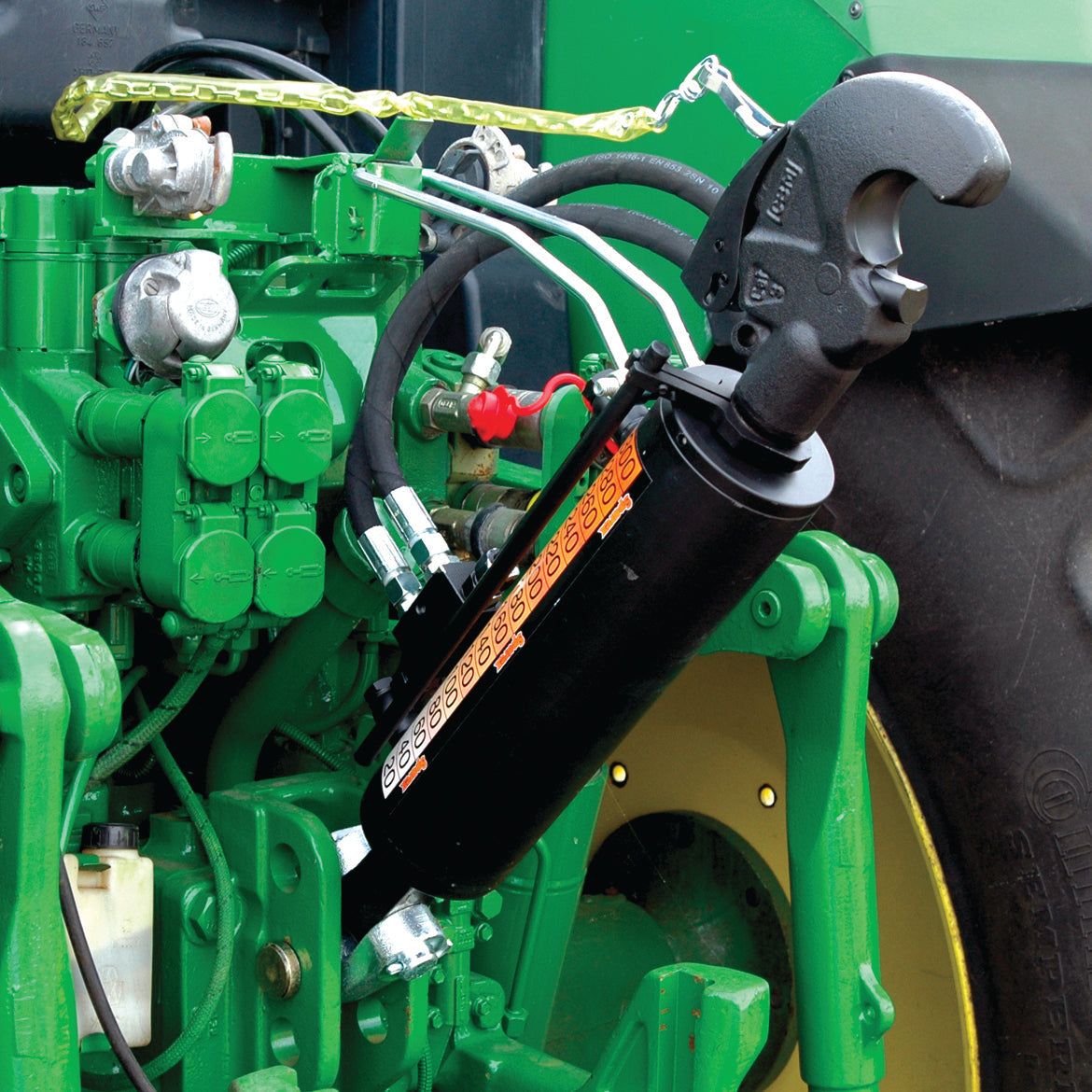

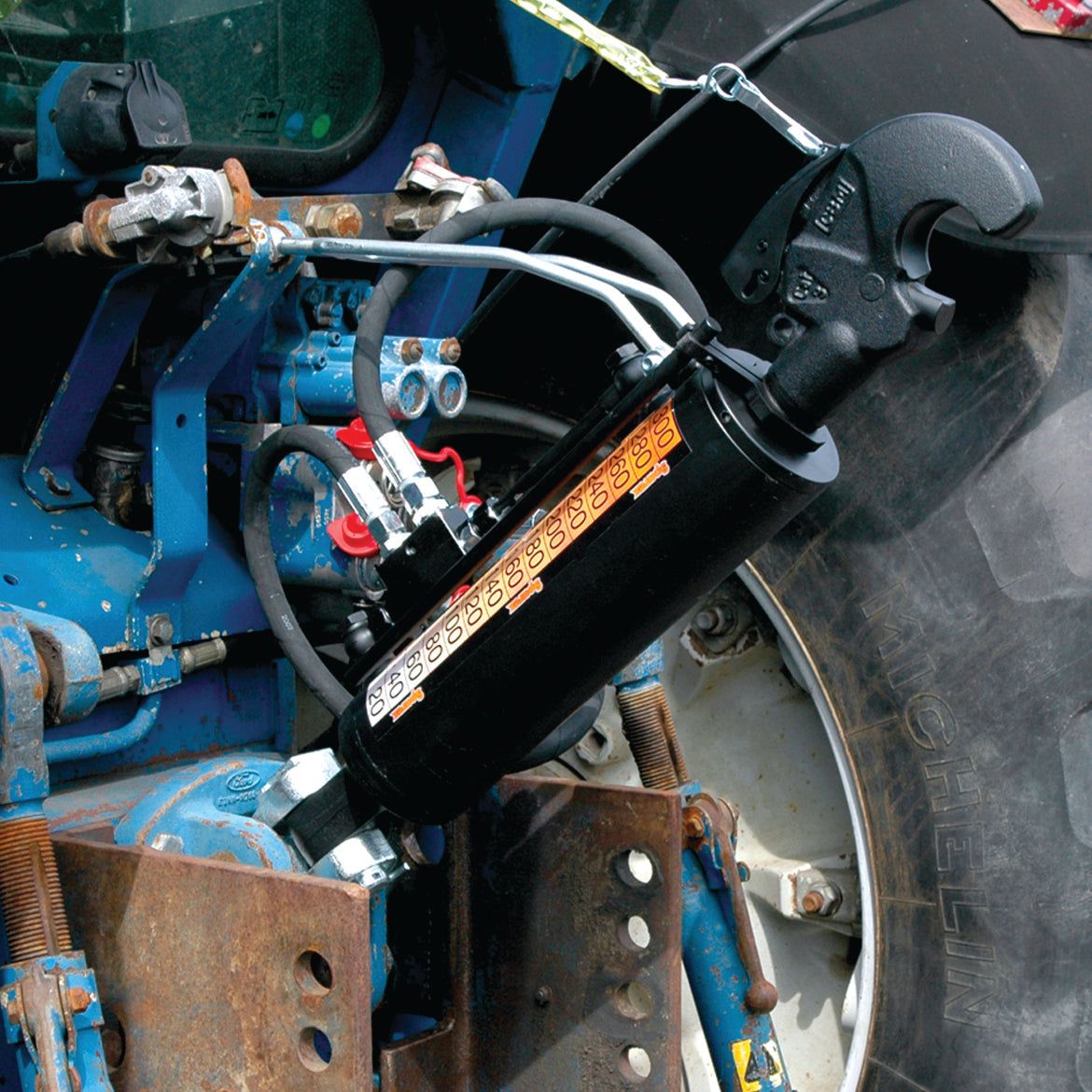

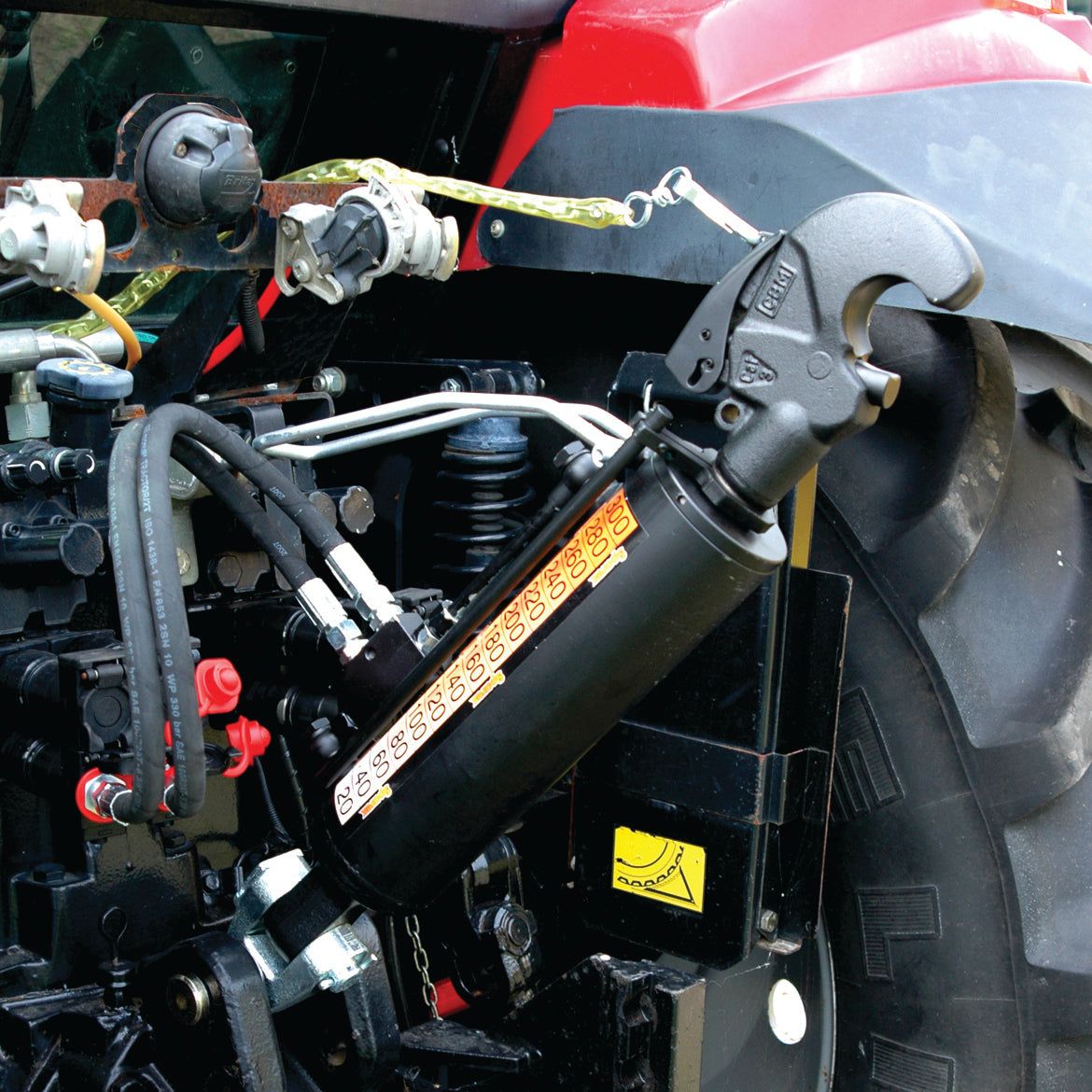

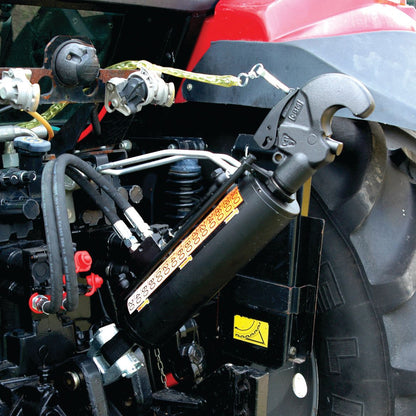

Hydraulic Top Link (Cat.28mm/3) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and versatility in agricultural applications. With a minimum length of 565mm and a maximum length of 706mm, this hydraulic top link is perfect for tractors up to 200hp (147kW).

Key Features:
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Cylinder Bore: 90mm
  • Lift Capacity: 8770 kg @ 180 bar
  • Thrust Capacity: 11700 kg @ 180 bar
  • Rod Diameter: 45mm
  • Check Valve Position: Top

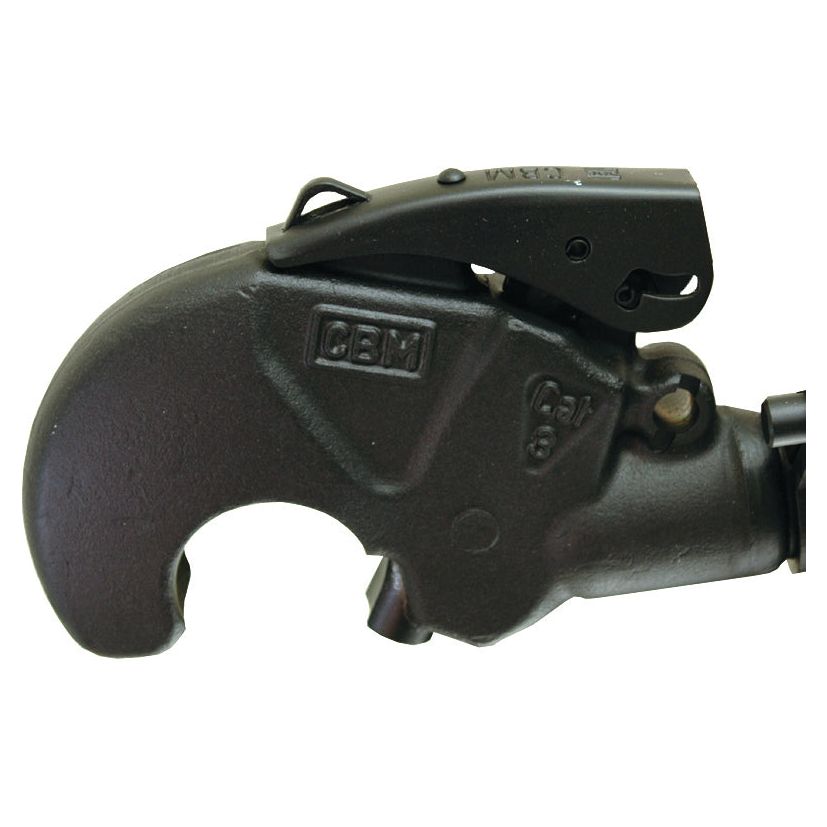

  • Implement End: Q.R CBM Hook

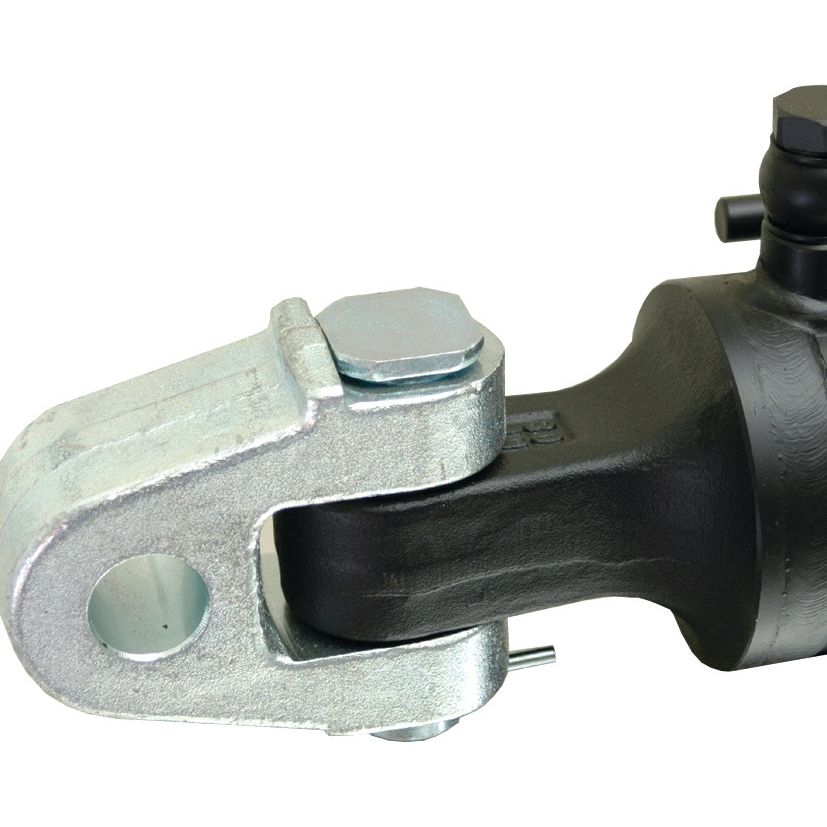

  • Tractor End: Knuckle
  • Tariff Code: 8412212090
Product Specifications:
  • A (mm): 152
  • Alternative to: 56800
  • Category Implement End: 3
  • Category Tractor End: 28mm
  • Category: 28mm/3
  • Related Products: 10289, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
  • Tractor End Fixing: S.10289
Compatibility Information:

This hydraulic top link is not associated with any specific make or model, providing flexibility for various applications.

Manufacturer Information:

This product is not linked to any particular OEM part number, ensuring a broad range of compatibility.

Additional Product Information

Product Specifications

A (mm): 152
Alternative to: 56800
Brand: Sparex
Category Implement End: 3
Category Tractor End: 28mm
Category: 28mm/3
Check Valve Position: Top
Cylinder Bore (mm): 90
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 8770
Maximum Length (mm): 706
Minimum Length (mm): 565
Related products: 10289,10292,32257,33004,33010,33017,33137,33144,33158,33202,39965,39966,39967,39968,148196,148197
Rod Ø (mm): 45
Suitable for Tractors up to HP/Kw: 200hp (147kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code:8412212090
Thrust kgs @180 (bar): 11700
Tractor End Fixing: S.10289
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Vollständige Details anzeigen

Hydraulic Top Link - Cat.28mm, 90mm Bore, Sparex S.399893

- **Heavy Duty Hydraulic Top Link:** Designed for tractors up to 200hp (147kW) with a robust 90mm cylinder bore.
- **High Lift Capacity:** Lifts up to 8770kg at 180 bar, ideal for demanding agricultural tasks.
- **Versatile Implement End:** Features a Q.R CBM Hook for quick and easy attachment of implements.
- **Durable Construction:** Includes a hose set, chain & ball, and a marker label for secure and reliable operation.
- **Wide Compatibility:** Suitable for various tractor models and applications, offering flexibility and convenience.
