Vendor: Sparex - SKU: SP-399812

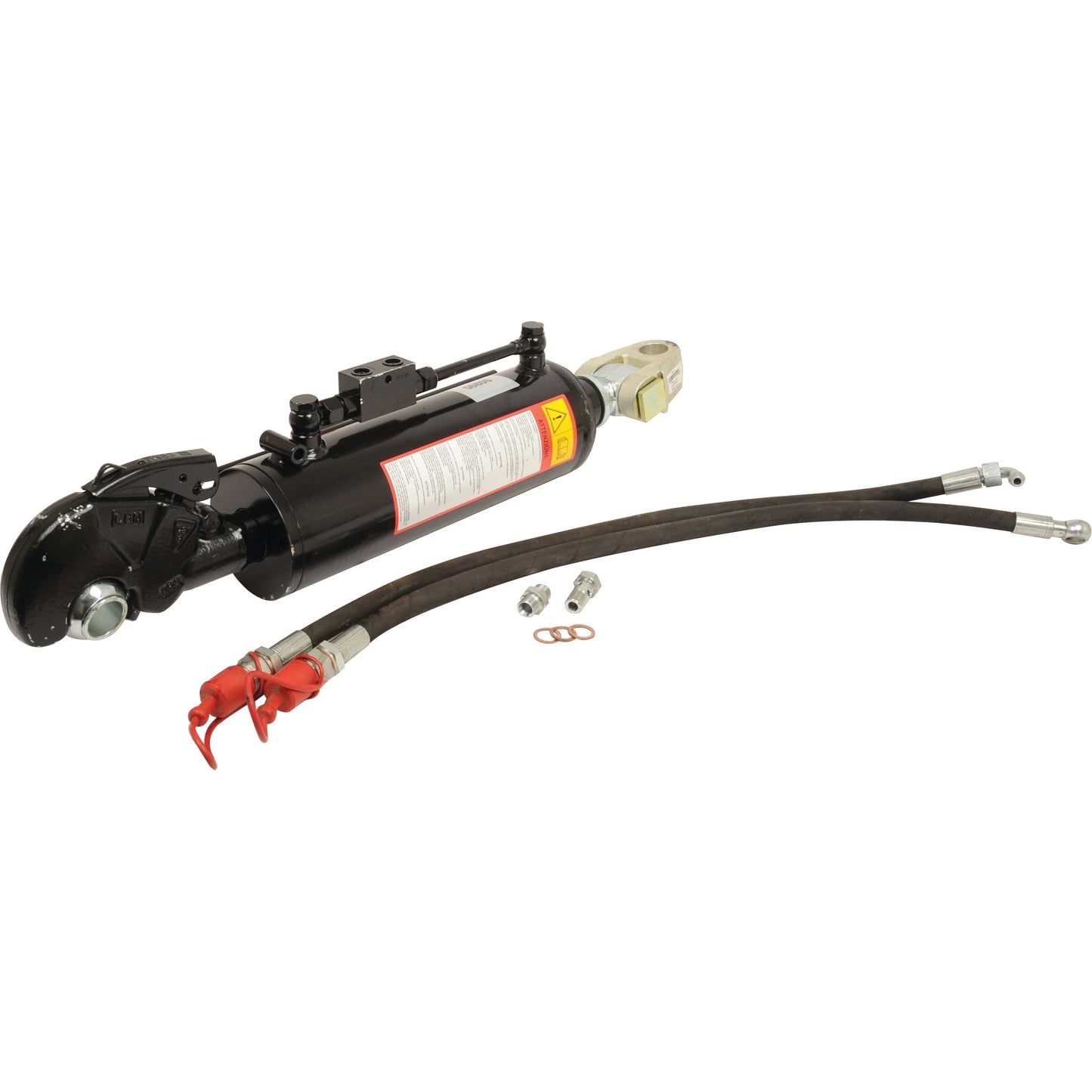

Hydraulic Top Link (Cat.2/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 610mm. | Sparex Part No.S.399812

Hydraulic Top Link (Cat.2/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 610mm. | Sparex Part No.S.399812

SKU:SP-S.399812

Regular price £574.20 GBP
Regular price £574.20 GBP Sale price £574.20 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

12 in stock

Quantity

Introducing the Hydraulic Top Link (Cat.2/3) with a robust Cylinder Bore of 80mm. This essential agricultural component features a minimum length of 610mm and a maximum length of 795mm. It comes complete with a hose set, chain & ball, and a marker label with knuckle & pin for easy installation and operation.

Product Specifications
  • A (mm): 152
  • Alternative to: 32930
  • Brand: Sparex
  • Category Implement End: 3
  • Category Tractor End: 2
  • Category: 2/3
  • Check Valve Position: Top
  • Cylinder Bore (mm): 80
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 6930
  • Maximum Length (mm): 795
  • Minimum Length (mm): 610
  • Related Products: 10287, 10292, 32255, 33010, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
  • Rod Diameter (mm): 40
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 9240
  • Tractor End Fixing: S.10287
  • Tractor End: Knuckle
Suitable For Information

This hydraulic top link is compatible with a variety of tractor models, including:

Manufacturer Information

Part Number: Massey Ferguson 4361702M1

Additional Product Information

Product Specifications

A (mm): 152
Alternative to: 32930
Brand: Sparex
Category Implement End: 3
Category Tractor End: 2
Category: 2/3
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 795
Minimum Length (mm): 610
Related products: 10287,10292,32255,33010,33017,33137,33144,33158,39965,39966,39967,39968
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code:8412212090
Thrust kgs @180 (bar): 9240
Tractor End Fixing: S.10287
Tractor End: Knuckle

OEM Manufacture Information

Massey Ferguson
4361702M1

Suitable For Information

Case IH / International Harvester
5120, 5130, 5140, 5150
Challenger
MT525B, MT535B, MT545B
Claas
ARION 400, ARION 410, ARION 420, ARION 430, ARION 440, ARION 450, ARION 460, ARION 510, ARION 520, ARION 530, ARION 540, ARION 550, ARION 610, ARION 620, ARION 630, ARION 640, ARION 650, ARION 660
Lamborghini
R3.105, R3.110, R3.85, R3.95, R4.105, R4.110, R4.85, R4.95
Massey Ferguson
5425, 5435, 5445, 5455, 5460, 5465, 5470, 5475, 5480, 5709 S DYNA 4, 5709 S DYNA 6, 5710 S DYNA 4, 5710 S DYNA 6, 5711 S DYNA 4, 5711 S DYNA 6, 5712 S DYNA 4, 5712 S DYNA 6, 5713 S DYNA 4, 5713 S DYNA 6, 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6612 DYNA 4, 6613 DYNA 4, 6613 DYNA 6, 6614 DYNA 6, 6615 DYNA 4, 6615 DYNA 6, 6712 S DYNA 4, 6713 S DYNA 4, 6713 S DYNA 6, 6714 S DYNA 4, 6714 S DYNA 6, 6715 S DYNA 4, 6715 S DYNA 6, 6716 S DYNA 6, 6718 S DYNA 6, 7614 DYNA 4, 7615 DYNA 4, 7615 DYNA 6, 7616 DYNA 6, 7618 DYNA 6, 7714 DYNA 4, 7714 S DYNA 4, 7715 DYNA 4, 7715 DYNA 6, 7715 S DYNA 4, 7715 S DYNA 6, 7716 DYNA 6, 7716 S DYNA 6, 7718 DYNA 6, 7718 S DYNA 6
Same
ANTARES 100, ANTARES 110
Steyr
9090, 9094
Valmet & Valtra
N101, N101 CLASSIC, N101 HITECH, N103, N103 HITECH, N103.4 HITECH, N103.4 HITECH 5, N111, N111 HITECH, N111C, N111E, N111EH, N111ELS, N111H, N113, N121, N121 HITECH, N121 VERSU, N121LS, N122, N122 DIRECT, N122 VERSU, N123 HITECH, N123 HITECH 3, N123 VERSU, N141, N141 HITECH, N141LS, N142, N142 DIRECT, N142 VERSU, N143 HITECH 3, N143 VERSU, N143D, N163 VERSU, N163D, T121, T121 HITECH, T121C, T122 DIRECT, T122 VERSU, T131, T131 HITECH, T131C, T131H, T132, T132 DIRECT, T132 VERSU, T133, T133H, T141, T142 DIRECT, T142 VERSU, T151, T152, T152 DIRECT, T152 VERSU, T153, T153 HITECH, T153 VERSU, T153D, T161, T161 HITECH, T162, T162 DIRECT, T162 VERSU, T162EV, T163E, T163ED, T163EV, T171, T171 HITECH, T172, T172 DIRECT, T172 VERSU, T173 HITECH, T173 VERSU, T182, T182 DIRECT, T182
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link - Cat.2/3, 80mm Bore, Sparex S.399812

- **Heavy-duty hydraulic top link for tractors up to 180hp (135kW)**
- **Compatible with a wide range of tractor models, including Massey Ferguson, Case IH, Challenger, Claas, Lamborghini, Same, Steyr, Valmet & Valtra**
- **Features a robust 80mm cylinder bore for increased lifting capacity**
- **Offers a minimum length of 610mm and a maximum length of 795mm for versatility**
- **Includes a quick-release CBM hook for easy implement attachment**
