Hydraulic Top Link (Cat.3/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 640mm. | Sparex Part No.S.331502

Hydraulic Top Link (Cat.3/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 640mm. | Sparex Part No.S.331502

SKU:SP-S.331502

Regular price £619.08 GBP
Regular price £619.08 GBP Sale price £619.08 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 9 left

Quantity
Default Title

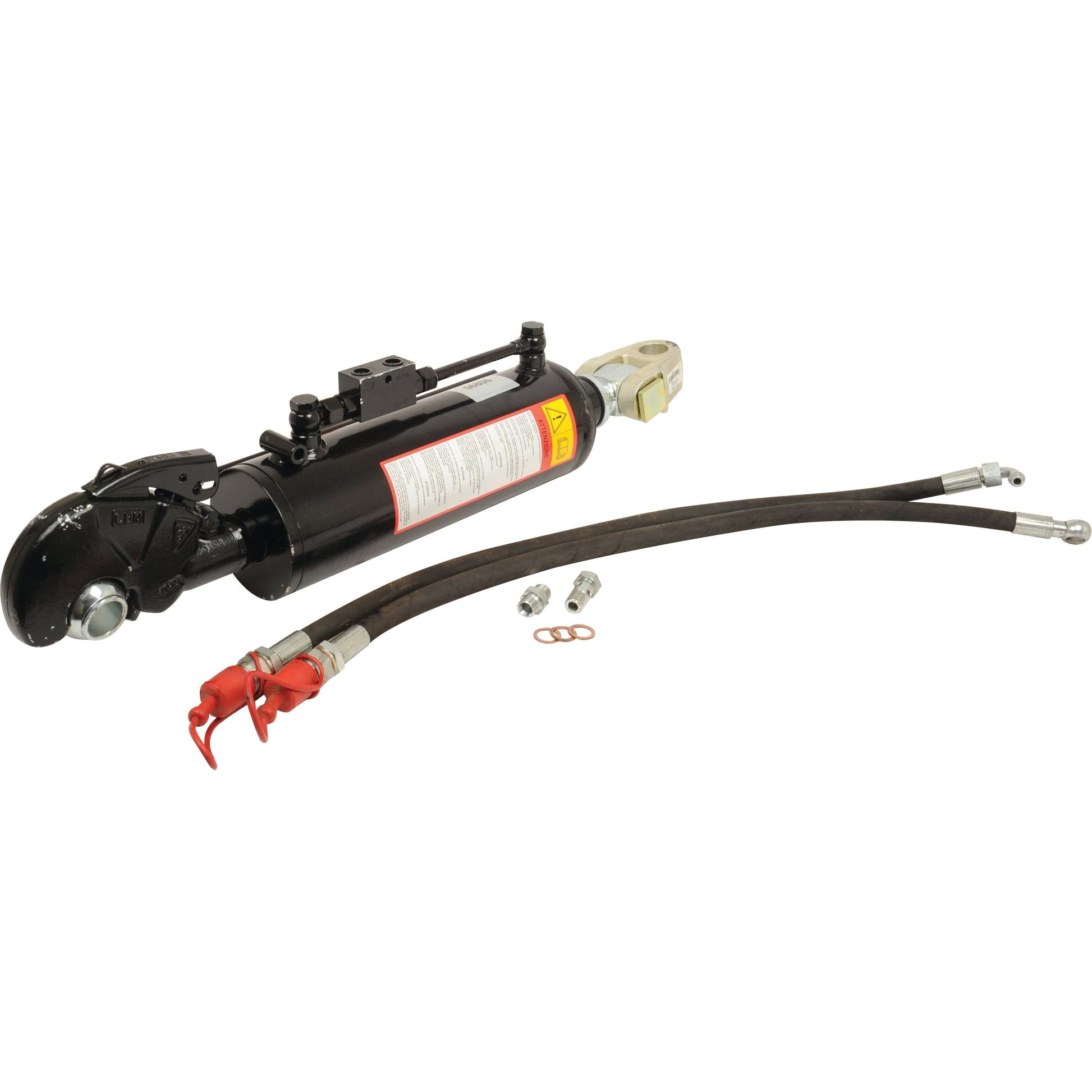

Hydraulic Top Link (Cat.3/2) with Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This robust hydraulic top link features a minimum length of 640mm and a maximum length of 885mm, making it versatile for various tractor setups. It comes complete with a hose set, chain & ball, and a marker label with knuckle & pin for easy installation and operation.

Product Specifications
  • A (mm): 152
  • Alternative to: 56812
  • Brand: Sparex
  • Category Implement End: 2
  • Category Tractor End: 3
  • Category: 3/2
  • Check Valve Position: Top
  • Cylinder Bore (mm): 80
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs) @ 180 bar: 6930
  • Maximum Length (mm): 885
  • Minimum Length (mm): 640
  • Related Products: 10288, 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
  • Rod Diameter (mm): 40
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Tariff Code: 8412212090
  • Thrust (kgs) @ 180 bar: 9240
  • Tractor End Fixing: S.10288
  • Tractor End: Knuckle
Compatibility Information

This hydraulic top link is designed to be universally compatible and is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring a broad application across various machinery.

Additional Product Information

Product Specifications

A (mm): 152
Alternative to: 56812
Brand: Sparex
Category Implement End: 2
Category Tractor End: 3
Category: 3/2
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 885
Minimum Length (mm): 640
Related products: 10288, 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code: 8412212090
Thrust kgs @180 (bar): 9240
Tractor End Fixing: S.10288
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link (Cat.3/2) - 80mm Bore, 640mm Min. Length

- **Heavy-duty Hydraulic Top Link:** Designed for demanding agricultural applications, this top link boasts a robust construction and high lifting capacity.
- **Versatile Length Adjustment:** With a minimum length of 640mm and a maximum length of 885mm, this top link can be easily adjusted to fit various tractor setups.
- **High Lifting Capacity:** Capable of lifting up to 6930 kgs at 180 bar, this top link is suitable for heavy implements.
- **Quick Release CBM Hook:** The quick release CBM hook on the implement end allows for fast and easy attachment and detachment of implements.
- **Universal Compatibility:** This top link is designed to be universally compatible and is not associated with any specific make or model, ensuring broad application across various machinery.
