Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 690mm. | Sparex Part No.S.331341

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 690mm. | Sparex Part No.S.331341

SKU:SP-S.331341

Regular price £608.52 GBP
Regular price £608.52 GBP Sale price £608.52 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 5 left

Quantity
Default Title

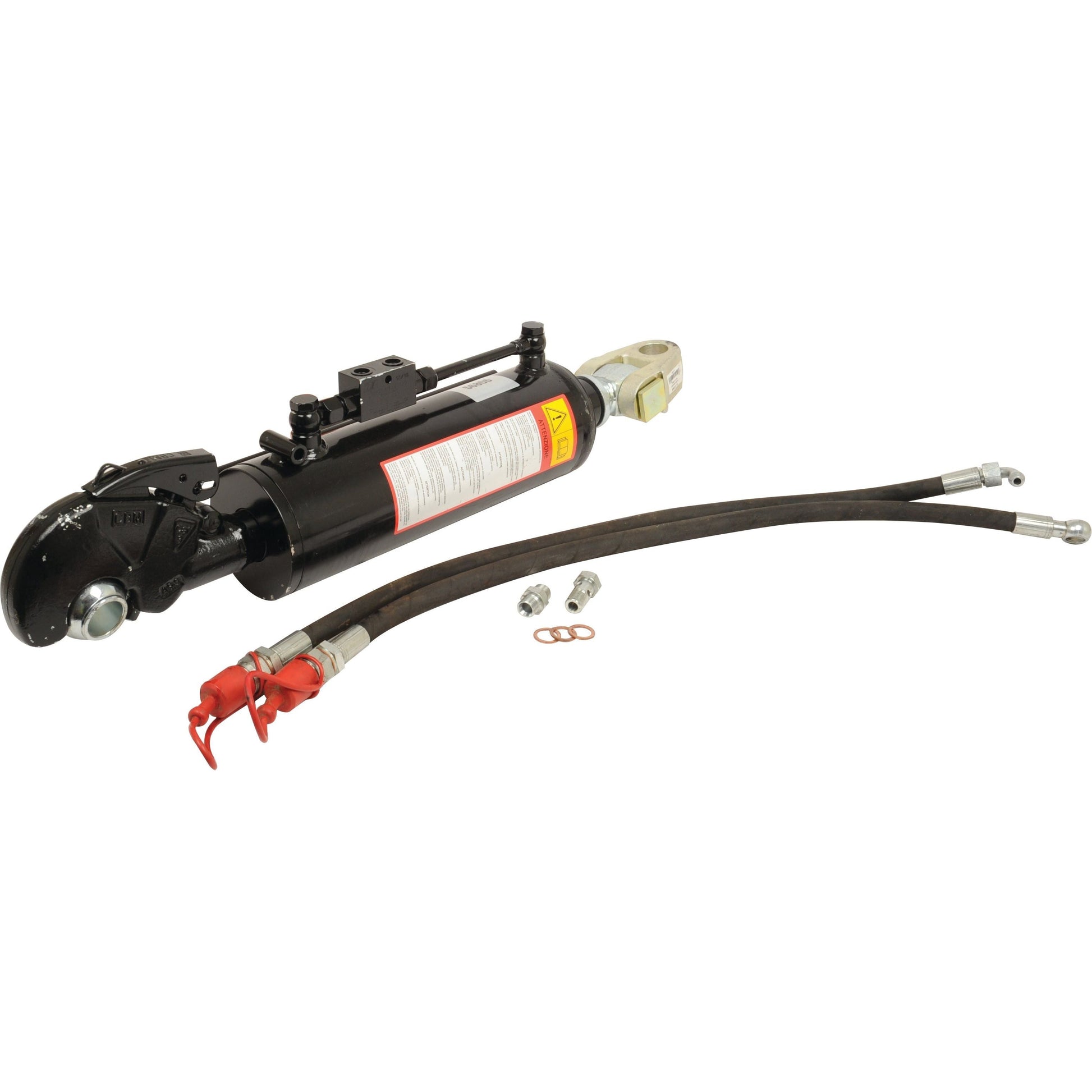

Hydraulic Top Link (Cat.3/3) with Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This robust top link features a minimum length of 690mm and a maximum length of 946mm, making it versatile for various tractor setups. It is supplied with a comprehensive hose set, chain & ball, marker label with threaded rod, knuckle, and pin for easy installation and use.

Product Specifications
  • A (mm): 148
  • Alternative to: 56805
  • Brand: Sparex
  • Category Implement End: 3
  • Category Tractor End: 3
  • Category: 3/3
  • Check Valve Position: Top
  • Cylinder Bore (mm): 80
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 6930
  • Maximum Length (mm): 946
  • Minimum Length (mm): 690
  • Related Products: 10288, 10292, 32255, 32947, 32977, 33010, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
  • Rod Diameter (mm): 40
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied with: Hose set, chain & ball, marker label with threaded rod, knuckle & pin
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 9240
  • Tractor End Fixing: S.10288
  • Tractor End: Knuckle
Compatibility Information

This hydraulic top link is designed to be universally compatible and is not associated with any specific make or model.

Manufacture Information

This product does not correspond to any particular OEM part number, ensuring a broad application across various machinery.

Additional Product Information

Product Specifications

A (mm): 148
Alternative to: 56805
Brand: Sparex
Category Implement End: 3
Category Tractor End: 3
Category: 3/3
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 946
Minimum Length (mm): 690
Related products: 10288, 10292, 32255, 32947, 32977, 33010, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label with threaded rod, knuckle & pin
Tariff Code: 8412212090
Thrust kgs @180 (bar): 9240
Tractor End Fixing: S.10288
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link, Cat.3/3, 80mm Bore, Sparex S.331341

- **Heavy-duty hydraulic top link for tractors up to 180hp (135kW)**
- **Category 3/3 compatibility for universal fitment**
- **Powerful lift capacity of 6930 kgs @ 180 bar**
- **Durable construction with 80mm cylinder bore and 40mm rod diameter**
- **Includes comprehensive accessories: hose set, chain & ball, marker label, knuckle & pin**
