Vendor: Sparex - SKU:

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 580mm. | Sparex Part Number: S.150076

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 580mm. | Sparex Part Number: S.150076

SKU:SP-S.150076

Regular price £599.28 GBP
Regular price £599.28 GBP Sale price £599.28 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 16 left

Quantity
Default Title

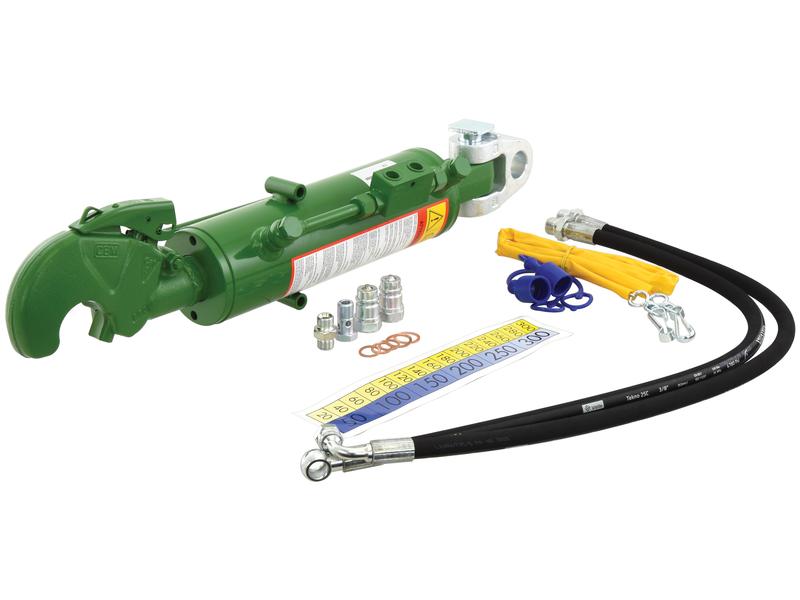

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook

Brand: Sparex

Part Number: S.150076

Product Type: Top Link

SKU: SP-150076

OEM Fitment: John Deere AL175552

Machine Compatibility: Suitable for John Deere models including 6150M, 6170M, 6830, 6930, and 7330 (North America Edition) among others.

Product Features:

  • Category: 3/3
  • Implement End: 3
  • Tractor End: 3 (Knuckle)
  • Check Valve Position: 45°
  • Cylinder Bore: 90 mm
  • Rod Diameter: 45 mm
  • Thrust Capacity: 11700 kgs @ 180 bar
  • Implement End Capacity: Q.R CBM HookLift 8770 kgs @ 180 bar
  • Length Specifications: Minimum Length: 580 mm, Maximum Length: 768 mm

Included Accessories:

This hydraulic top link comes complete with a hose set, chain & ball, and a marker label featuring knuckle & pin for easy installation and use.

Additional Information:

Tariff Code: 8412212090

Suitable for Tractors up to: 200 hp (147 kW)

Related Products:

Explore additional compatible products: 10288, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33202, 148196, 148197, 150215, 163766.

Upgrade your tractor's performance with the Sparex Hydraulic Top Link, designed for durability and efficiency in demanding agricultural applications.

Additional Product Information

Product Specifications

Brand: Sparex
Category Implement End: 3
Category Tractor End: 3
Category: 3/3
Check Valve Position: 45°
Cylinder Bore (mm): 90
Implement End: Q.R CBM HookLift kgs @180 bar: 8770
Maximum Length (mm): 768
Minimum Length (mm): 580
Related products: 10288, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33202, 148196, 148197, 150215, 163766
Rod Ø (mm): 45
Suitable for Tractors up to HP/Kw: 200hp (147kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code: 8412212090
Thrust kgs @180 (bar): 11700
Tractor End: Knuckle

OEM Manufacture Information

John Deere
AL175552

Suitable For Information

John Deere
6150M, 6150M - NORTH AMERICA EDITION, 6170M, 6170M - NORTH AMERICA EDITION, 6830, 6830 PREMIUM, 6930, 6930 PREMIUM, 7330 - NORTH AMERICA EDITION, 7330 PREMIUM - NORTH AMERICA EDITION, 7430 E PREMIUM, 7430 PREMIUM, 7430 PREMIUM - NORTH AMERICA EDITION, 7530 E PREMIUM, 7530 PREMIUM, 7530 PREMIUM - NORTH AMERICA EDITION
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link (Cat.3/3) - 90mm Bore, Sparex S.150076

- **Heavy-duty hydraulic top link for John Deere tractors**
- **Category 3/3 compatibility for wide tractor and implement compatibility**
- **Knuckle and Q.R CBM Hook for secure and versatile attachment**
- **High thrust capacity of 11700 kgs @ 180 bar for demanding applications**
- **Includes hose set, chain & ball, and marker label for easy installation**
