Vendor: Sparex - SKU:

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 660mm. | Sparex Part Number: S.150074

Hydraulic Top Link (Cat.3/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 660mm. | Sparex Part Number: S.150074

SKU:SP-S.150074

Regular price £609.84 GBP
Regular price £609.84 GBP Sale price £609.84 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 60 left

Quantity
Default Title

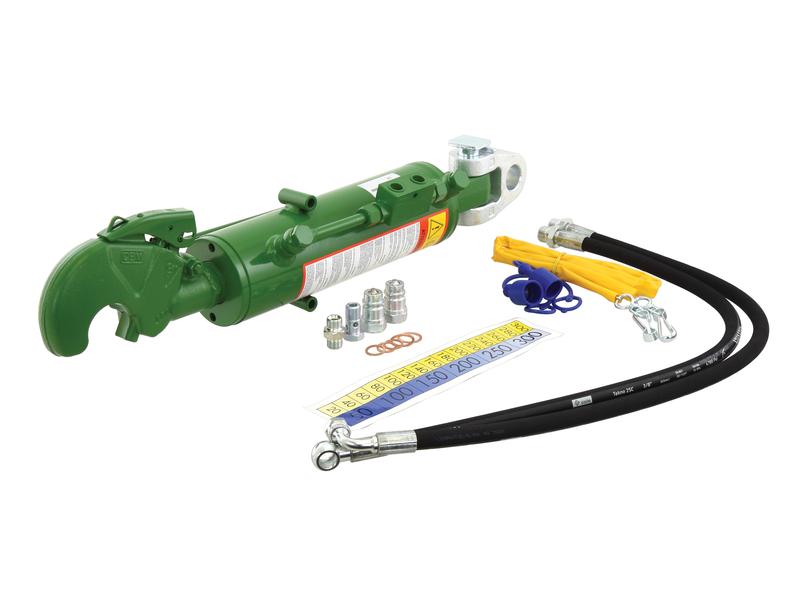

Hydraulic Top Link (Cat.3/3) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and compatibility with a range of John Deere tractors. This robust top link features a cylinder bore of 90mm and is engineered to handle heavy lifting tasks with ease.

Key Features:

  • Alternative to: 150141
  • Brand: Sparex
  • Category: 3/3
  • Implement End: Q.R CBM Hook
  • Tractor End: Knuckle
  • Check Valve Position: 45°
  • Rod Diameter: 45mm
  • Lift Capacity: 8770 kg @ 180 bar
  • Thrust Capacity: 11700 kg @ 180 bar
  • Minimum Length: 660mm
  • Maximum Length: 888mm
  • Suitable for Tractors up to: 200hp (147kW)
  • Tariff Code: 8412212090

Compatibility:

This hydraulic top link is compatible with various John Deere models, including:

  • 6090MC, 6090RC
  • 6100MC, 6100RC
  • 6110M, 6110MC, 6110RC
  • 6120M, 6125M
  • 6130, 6140M, 6145M
  • 6R Series (110-250)
  • And many more!

Related Products:

Explore additional compatible products: 10288, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33202, 39968, 148196, 148197, 150215, 163766.

Upgrade your tractor's performance with the Sparex Hydraulic Top Link - a reliable solution for all your agricultural needs!

Additional Product Information

Product Specifications

Alternative to: 150141
Brand: Sparex
Category Implement End: 3
Category Tractor End: 3
Category: 3/3
Check Valve Position: 45°
Cylinder Bore (mm): 90
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 8770
Maximum Length (mm): 888
Minimum Length (mm): 660
Related products: 10288, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33202, 39968, 148196, 148197, 150215, 163766
Rod Ø (mm): 45
Suitable for Tractors up to HP/Kw: 200hp (147kW)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 11700
Tractor End: Knuckle

OEM Manufacture Information

John Deere
AL175551, AL175550, AL219002

Suitable For Information

John Deere
6090MC, 6090RC, 6095MC, 6095RC, 6100MC, 6100RC, 6105M, 6105M - NORTH AMERICA EDITION, 6105MC, 6105RC, 6110M, 6110MC, 6110RC, 6115M, 6115M - NORTH AMERICA EDITION, 6115MC, 6115RC, 6120M, 6125M, 6125M - NORTH AMERICA EDITION, 6130, 6130M, 6135M, 6135R, 6140M, 6140M - NORTH AMERICA EDITION, 6140R, 6145M, 6145R, 6150M, 6150M - NORTH AMERICA EDITION, 6150R, 6155M, 6155R, 6170M, 6170M - NORTH AMERICA EDITION, 6170R, 6175M, 6175R, 6190R, 6195M, 6195R, 6210R, 6215R, 6230, 6230 - NORTH AMERICA EDITION, 6230 PREMIUM, 6230 PREMIUM - NORTH AMERICA EDITION, 6230R, 6250R, 6330, 6330 - NORTH AMERICA EDITION, 6330 PREMIUM, 6330 PREMIUM - NORTH AMERICA EDITION, 6430, 6430 - NORTH AMERICA EDITION, 6430 PREMIUM, 6430 PREMIUM - NORTH AMERICA EDITION, 6530, 6530 PREMIUM, 6534 PREMIUM, 6630, 6630 PREMIUM, 6830, 6830 PREMIUM, 6930, 6930 PREMIUM, 6R 110, 6R 120, 6R 130, 6R 140, 6R 150, 6R 155, 6R 165, 6R 175, 6R 185, 6R 195, 6R 215, 6R 230, 6R 250, 7130 - NORTH AMERICA EDITION, 7130 PREMIUM - NORTH AMERICA EDITION, 7230 - NORTH AMERICA EDITION, 7230 PREMIUM - NORTH AMERICA EDITION, 7330 - NORTH AMERICA EDITION, 7330 PREMIUM - NORTH AMERICA EDITION, 7430 E PREMIUM, 7430 PREMIUM, 7430 PREMIUM - NORTH AMERICA EDITION, 7530 E PREMIUM, 7530 PREMIUM, 7530 PREMIUM - NORTH AMERICA EDITION, 7600, 7700, 7710, 7800, 7810
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link (Cat.3/3) - 90mm Bore, 660mm Min. Length

- **Heavy-duty hydraulic top link for John Deere tractors**
- **Compatible with a wide range of John Deere models, including 6R series**
- **High lift capacity of 8770 kg @ 180 bar**
- **Durable construction with a 90mm cylinder bore**
- **Quick-release CBM hook for easy attachment and detachment**
