Hydraulic Top Link (Cat.-/3) and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 500mm. | Sparex Part No.S.56800

Hydraulic Top Link (Cat.-/3) and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 500mm. | Sparex Part No.S.56800

SKU:SP-S.56800

Regular price £550.44 GBP
Regular price £550.44 GBP Sale price £550.44 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 22 left

Quantity
Default Title

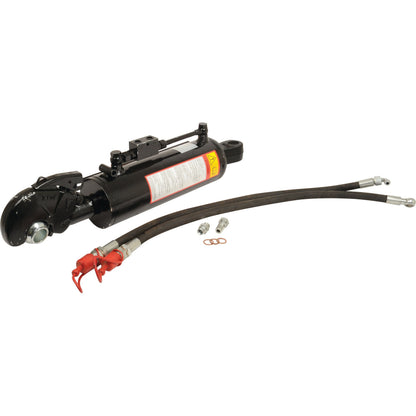

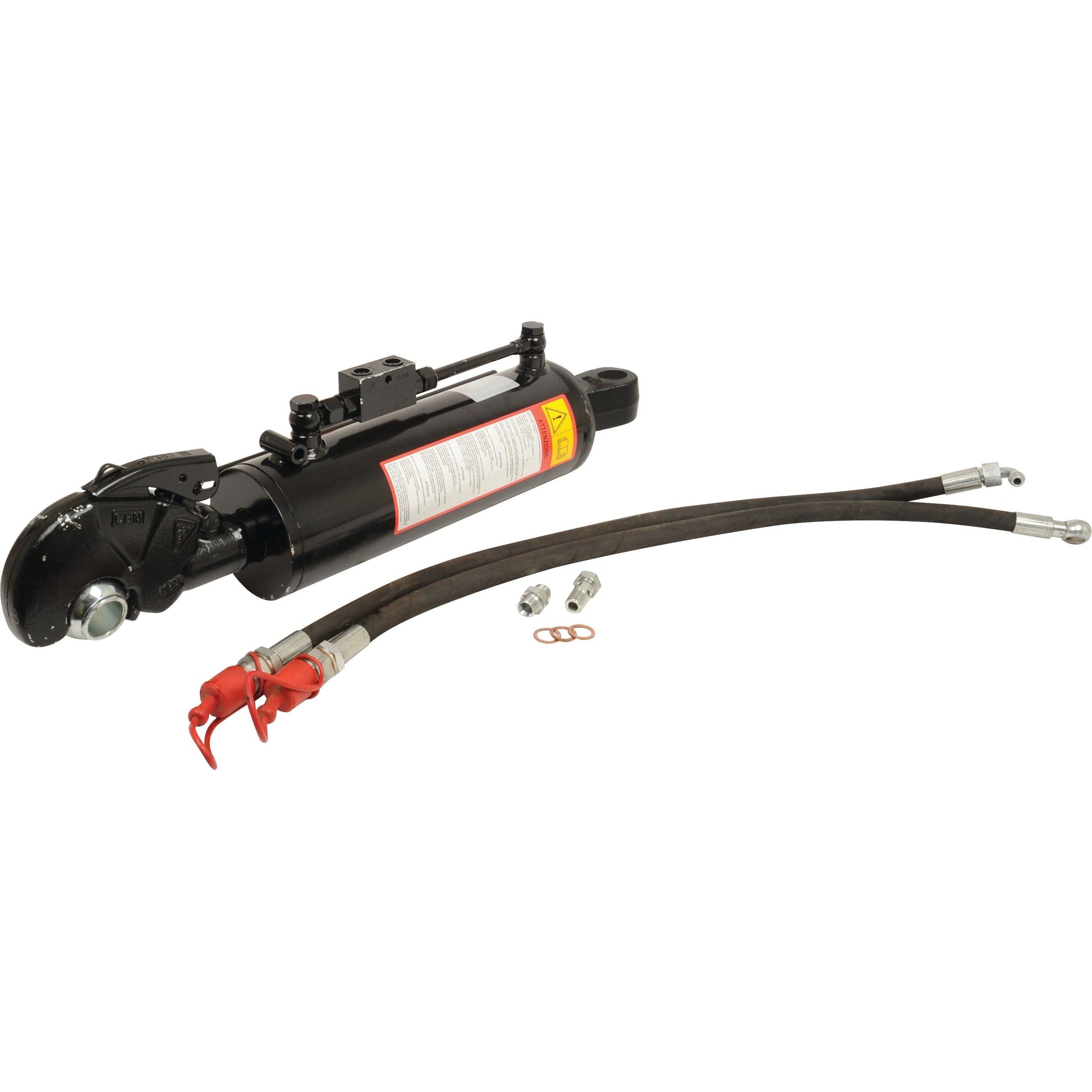

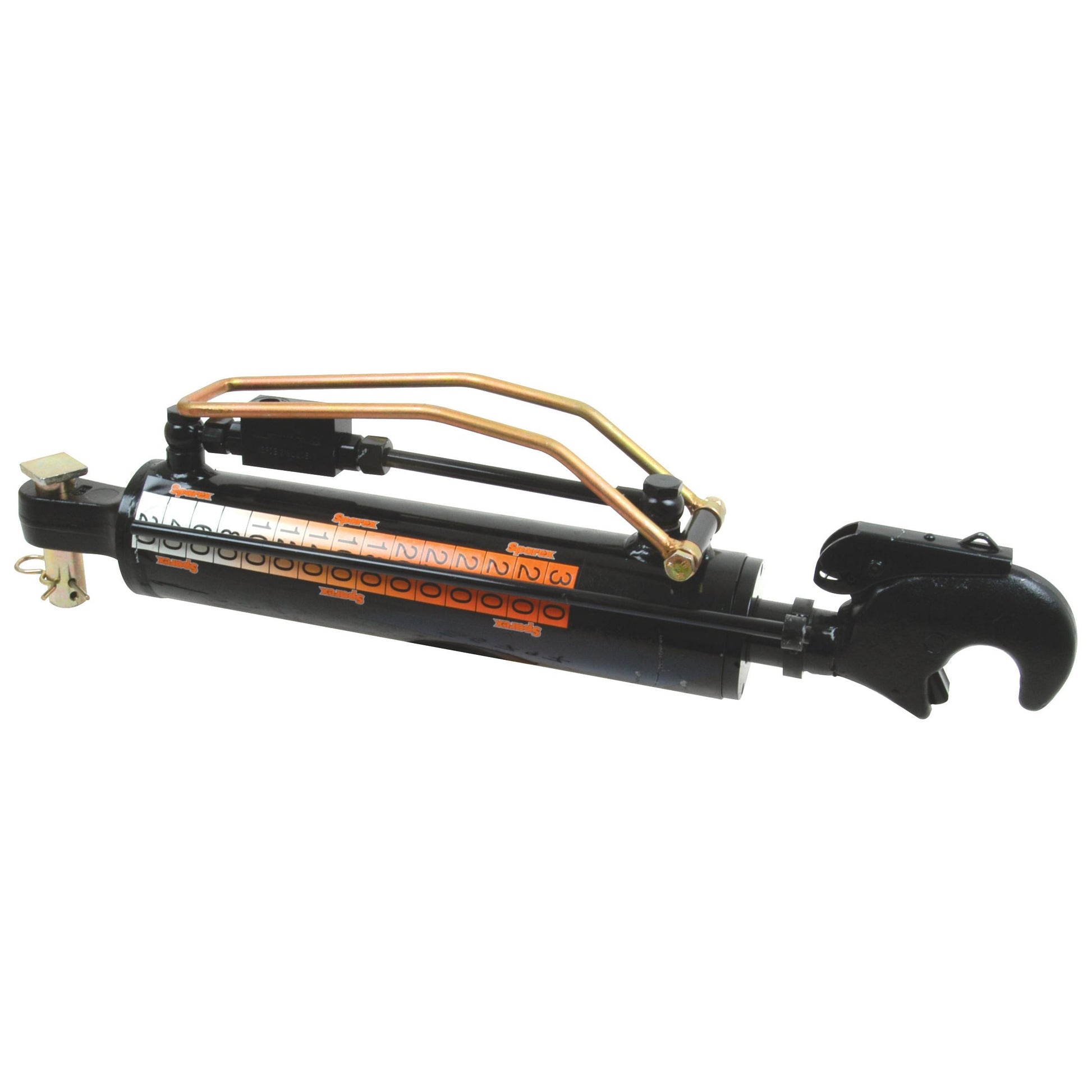

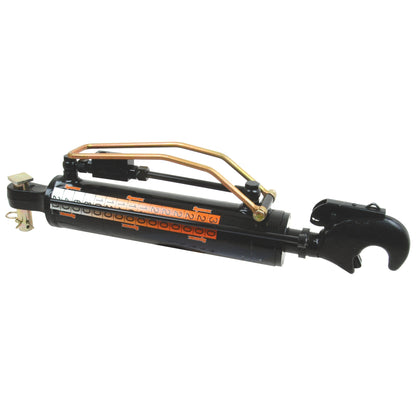

Hydraulic Top Link (Cat.-/3) with Q.R CBM Hook - Sparex Part No. S.56800

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for optimal performance, this hydraulic linkage features a minimum length of 500mm and a maximum length of 640mm. It comes complete with a hose set, chain & ball, and a marker label (without knuckle & pin), ensuring you have everything you need for installation and operation.

Product Specifications
  • A (mm): 120
  • Alternative to: 399891, 399892, 399893, 399894
  • Brand: Sparex
  • Category Implement End: 3
  • Category: -/3
  • Check Valve Position: Top
  • Cylinder Bore (mm): 90
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs) @ 180 bar: 8770
  • Loop Option: 45
  • Maximum Length (mm): 640
  • Minimum Length (mm): 500
  • Ram Stroke (mm): 160
  • Related Products: 10287, 10288, 10289, 10290, 10292, 32257, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56815, 56817, 148196, 148197
  • Rod Diameter (mm): 45
  • Suitable for Tractors up to: 200hp (147kW)
  • Supplied with: Hose set, chain & ball, marker label without knuckle & pin
  • Tariff Code: 8413910090
  • Thrust (kgs) @ 180 bar: 11700
Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.

Additional Product Information

Product Specifications

A (mm): 120
Alternative to: 399891, 399892, 399893, 399894
Brand: Sparex
Category Implement End: 3
Category: -/3
Check Valve Position: Top
Cylinder Bore (mm): 90
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 8770
Loop option: 45
Maximum Length (mm): 640
Minimum Length (mm): 500
Ram Stroke (mm): 160
Related products: 10287, 10288, 10289, 10290, 10292, 32257, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56815, 56817, 148196, 148197
Rod Ø (mm): 45
Suitable for Tractors up to HP/Kw: 200hp (147kW)
Supplied with: Hose set, chain & ball, marker label without knuckle & pin
Tariff Code: 8413910090
Thrust kgs @180 (bar): 11700

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link with Q.R CBM Hook - Sparex S.56800

- **Heavy Duty Hydraulic Top Link:** Designed for tractors up to 200hp (147kW), this top link can handle demanding agricultural tasks.
- **High Lift Capacity:** With a lift capacity of 8770 kgs at 180 bar, this top link provides powerful lifting capabilities.
- **Quick Release CBM Hook:** The Q.R CBM hook allows for quick and easy attachment and detachment of implements.
- **Adjustable Length:** The adjustable length, ranging from 500mm to 640mm, provides flexibility for various applications.
- **Sparex Quality:** Manufactured by Sparex, a trusted brand in agricultural equipment, this top link is built to last.
