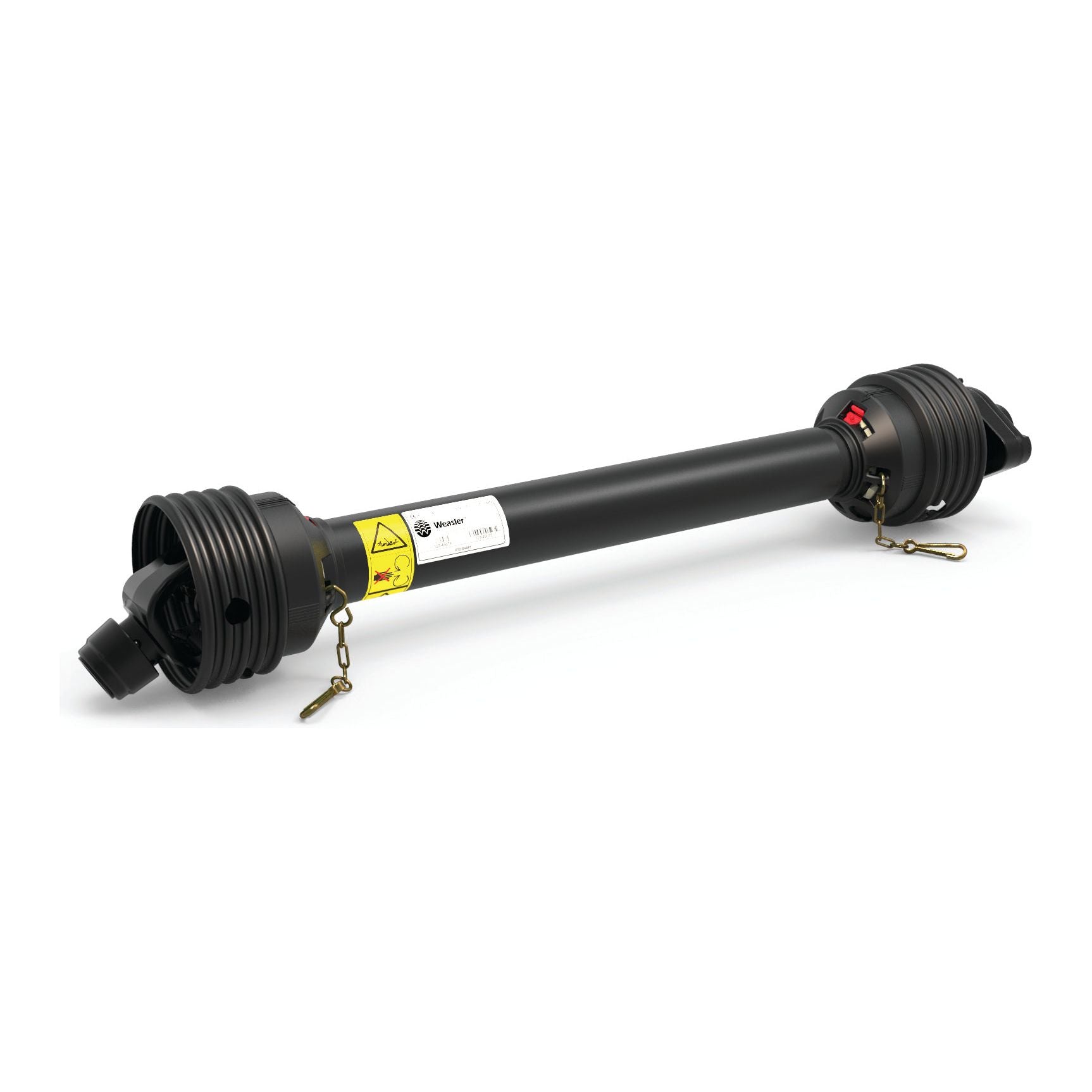

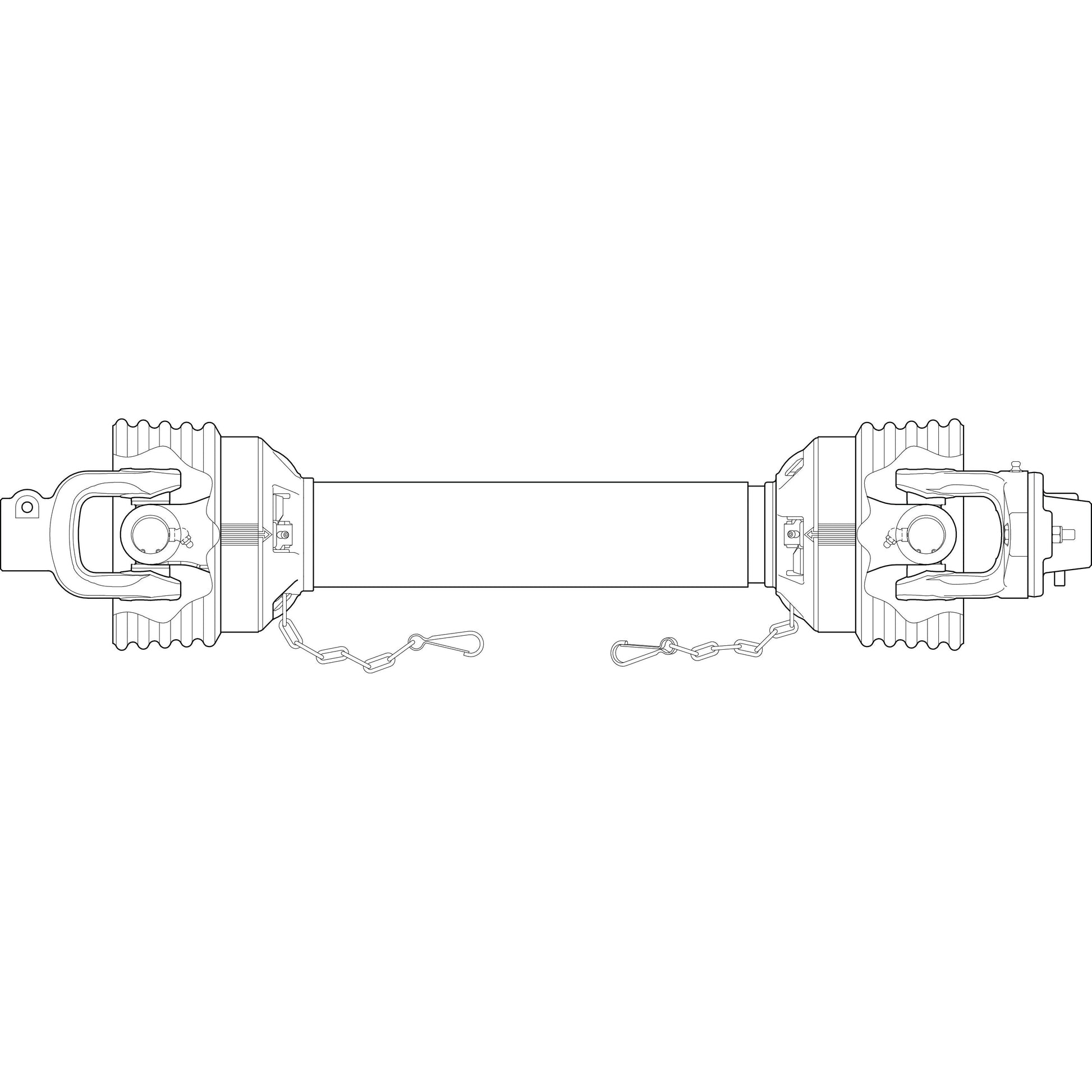

PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter - S.150964

PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter - S.150964

SKU:SP-S.150964

Regular price CFA579,800 XOF
Regular price CFA644,200 XOF Sale price CFA579,800 XOF
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 3 left

Quantity
Default Title

PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter - S.150964

This Weasler PTO shaft is designed for heavy-duty applications, featuring a robust construction and a powerful 52HP rating at 540RPM. It boasts a German Series AW35/W2400 design, ensuring high performance and reliability.

Key Features:

  • Brand: Weasler
  • HP Rating @ 540RPM: 52
  • HP Rating Range @ 540RPM: Up to 54
  • Lz Length (mm): 1010
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
  • Guard Type: Easylock
  • Tube Profile: Lemon
  • Universal Joint Dimensions: 32 x 76mm

Technical Specifications:

  • Clutch Setting Nm: 2120
  • German Series: AW35/W2400
  • Kilowatt Power Rating @ 540RPM: 39
  • PTO Series: AW35/W2400
  • Reference: 1680-7602-10120
  • Torque (Nm): 1240
  • Torque: 335 - 1240Nm
  • Total Closed Length (mm): 1262
  • Tube Ref: 1b/2a
  • Tariff Code: 8483908990

Important Notes:

This PTO shaft is not associated with any specific make or model of tractor or implement. It is a universal product that can be used with a wide range of equipment.

This product is not associated with any particular OEM part number.

Related Products: 20477, 24193, 24194, 4193, 4194, 59613, 59632, 117832, 117833, 117838, 117857, 117875

Additional Product Information

Product Specifications

Brand: Weasler
Clutch Setting Nm: 2120
erp_hazardous: No
German Series: AW35/W2400
Guard Type: Easylock
HP Rating @ 540RPM: 52
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
Kilowatt Power Rating @ 540RPM: 39
Lz Length (mm): 1010
PTO Series: AW35/W2400
Reference: 1680-7602-10120
Related products: 20477, 24193, 24194, 4193, 4194, 59613, 59632, 117832, 117833, 117838, 117857, 117875
Tariff Code:8483908990
Torque (Nm): 1240
Torque: 335 - 1240Nm
Total Closed Length (mm): 1262
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Lemon
Tube Ref: 1b/2a
Universal Joint Dimensions: 32 x 76mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

1010mm PTO Shaft, 1 3/8" x 6 Spline Q.R. to Shear Bolt Limiter

- **Heavy-duty PTO shaft for demanding applications**
- **Powerful 52HP rating at 540RPM**
- **German Series AW35/W2400 design for high performance and reliability**
- **1010mm (Lz) length for optimal reach**
- **Universal compatibility with a wide range of tractors and implements**
