Hydraulic Top Link (Cat.36mm/3) - Knuckle and Q.R CBM Hook
Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and versatility in agricultural applications. With a minimum length of 690mm and a maximum length of 956mm, this hydraulic top link is perfect for tractors up to 200hp (147kW).
Key Features:
-

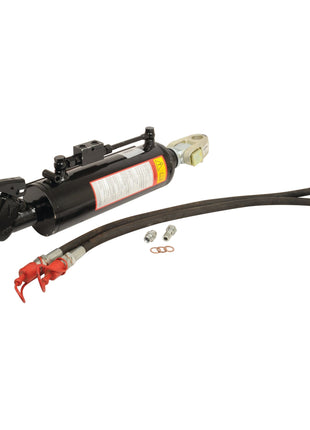

Supplied with: Hose set, chain & ball, marker label with knuckle & pin
-
Cylinder Bore: 90mm
-
Lift Capacity: 8770 kg @ 180 bar
-
Thrust Capacity: 11700 kg @ 180 bar
-
Rod Diameter: 45mm
-
Check Valve Position: Top
-

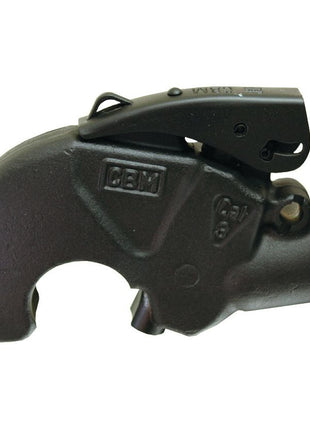

Implement End: Q.R CBM Hook
-

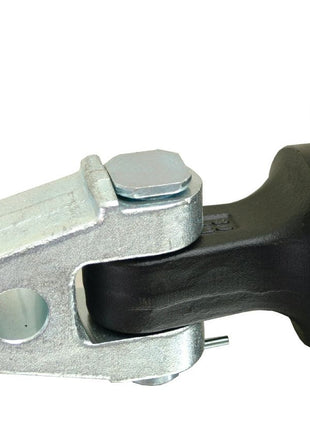

Tractor End: Knuckle
-
Tariff Code: 8412212090
Product Specifications:
- A (mm): 152
- Alternative to: 32932
- Category Implement End: 3
- Category Tractor End: 36mm
- Category: 36mm/3
- Maximum Length (mm): 956
- Minimum Length (mm): 690
- Related Products: 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 148196, 148197
- Tractor End Fixing: S.56817
Compatibility Information:
This hydraulic top link is not associated with any specific make or model, making it a versatile choice for various applications.
Manufacturer Information:
This product is not linked to any particular OEM part number, ensuring broad compatibility across different machinery.
