LED Beacon (Amber), Interference: Class 5, Flexible Pin, 12-24V - S.162656

LED Beacon (Amber), Interference: Class 5, Flexible Pin, 12-24V - S.162656

SKU:SP-S.162656

Regular price €81,95 EUR
Regular price Sale price €81,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

1000 in stock

Quantity
Default Title

LED Beacon (Amber), Interference: Class 5, Flexible Pin, 12-24V - S.162656

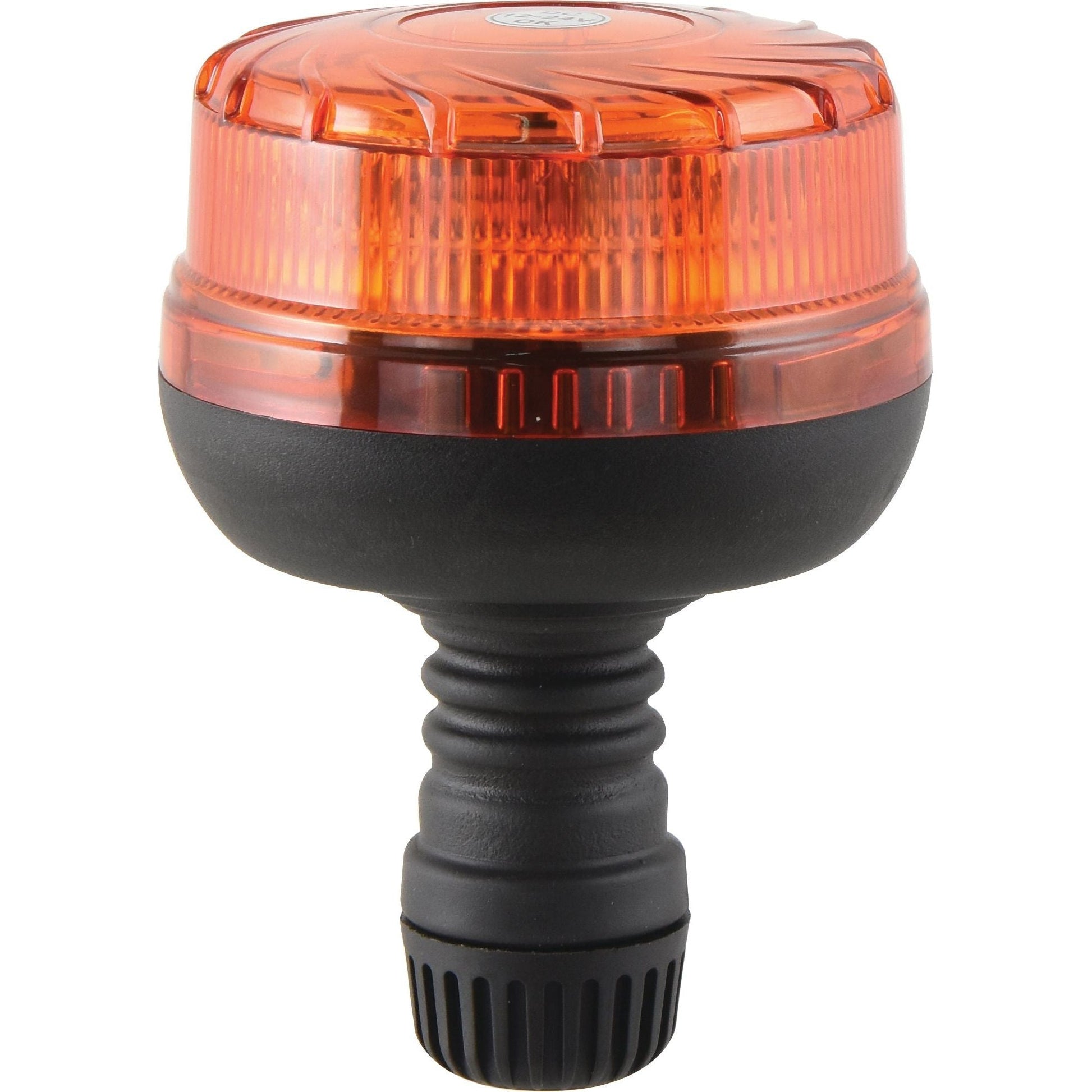

This Sparex LED beacon is a high-quality, durable, and reliable lighting solution designed for use on a variety of Fendt tractors. It features a robust rubber housing, a low profile design, and a bright amber lens made from safety glass. The beacon is equipped with 12 LEDs that produce 2400 lumens raw and 1200 effective lumens, providing excellent visibility in all conditions. It operates on a 12-24V voltage range and draws 0.667 Amps at 12V and 1.0 Amp at 24V. The beacon is also equipped with noise suppression and features three functions: rotating, double flashes, and single flash. It has a speed of 125+/-10 rpm for double flashes.

The beacon is CE, ECE (Reg 10, Reg 65), and RoHS approved and meets the Fendt grade specification with CISPR25 EMC. It has an IP65 rating, making it dust-tight and protected against water jets. The beacon is also ISO 9001 certified, ensuring high quality and reliability.

Product Specifications

  • Brand: Sparex
  • CE Approved: Yes
  • Connection Type: None
  • ECE Rating: Reg 10, Reg 65
  • Effective Lumens: 1200

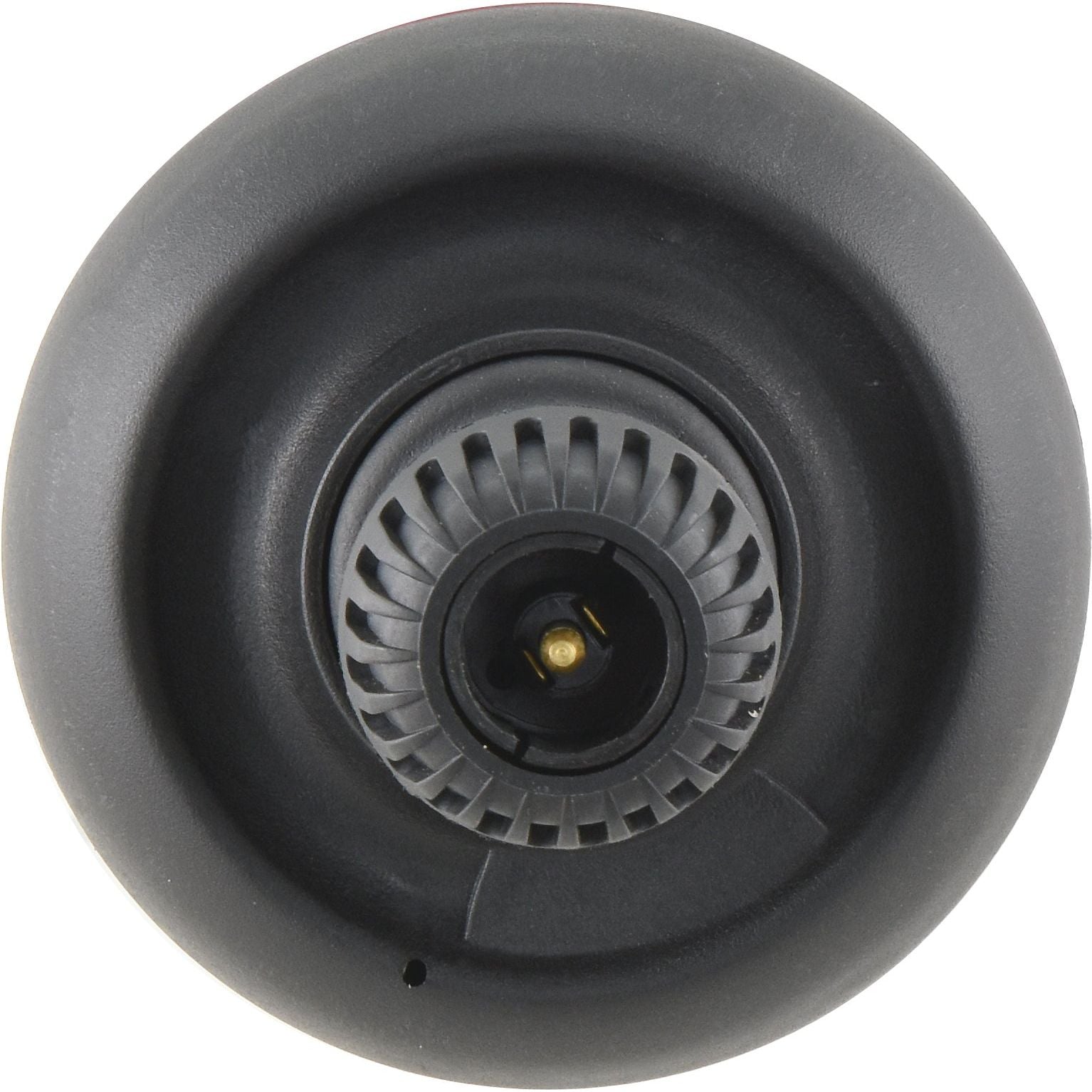

  • Fixing: Flexible Pin
  • Function: 3 functions: Rotating, Double Flashes, Single Flash
  • Housing Material: Rubber
  • Interference EMC EMI CISPR 25: Class 5
  • IP Rating: IP65
  • ISO Rating: ISO 9001
  • Lens Colour: Amber
  • Lens Material: Plastic Safety Glass
  • Light source: LED
  • Lumens Raw: 2400
  • Lux Value: 480
  • Notes: Fendt grade specification with CISPR25 EMC
  • Number of LEDs: 12 LEDs
  • Overall height (mm): 185
  • Overall length (mm): 130
  • Overall width (mm): 130
  • Power Consumption @ 12V: 0.667Amps
  • Power Consumption @ 24V: 1.0 Amp
  • Profile: Low
  • Related products: 167230
  • RoHS Approved: Yes
  • SAE Approved: No
  • Shape: Round
  • Speed: 125+/-10 rpm Double Flash
  • Tariff Code: 8512200090
  • Volts: 12-24V
  • Watts: 8-24W
  • With Noise Suppression: Yes
  • Working Temperature °C: -30°C to 50°C
  • Ø (mm): 130

Suitable For

This LED beacon is suitable for the following Fendt tractors:

  • 207 VARIO (330)
  • 207 VARIO S3 (300)
  • 208 VARIO (331)
  • 208 VARIO S3 (301)
  • 209 VARIO (332)
  • 209 VARIO S3 (302)
  • 210 VARIO (333)
  • 210 VARIO S3 (303)
  • 211 VARIO (334)
  • 211 VARIO S3 (304)
  • 310 VARIO
  • 310 VARIO S4 (347)
  • 311 VARIO
  • 311 VARIO S4 (348)
  • 312 VARIO (325)
  • 312 VARIO (339)
  • 312 VARIO S4 (349)
  • 313 VARIO
  • 313 VARIO S4 (350)
  • 512 VARIO
  • 512 VARIO S4 (435)
  • 513 VARIO
  • 513 VARIO S4 (436)
  • 514 VARIO
  • 514 VARIO S4 (437)
  • 516 VARIO
  • 516 VARIO S4 (438)
  • 714 VARIO
  • 716 VARIO
  • 718 VARIO
  • 720 VARIO S4 (741)
  • 722 VARIO S4 (742)
  • 724 VARIO S4 (743)
  • 820 VARIO
  • 822 VARIO
  • 822 VARIO S4 (839)
  • 824 VARIO
  • 824 VARIO S4 (840)
  • 826 VARIO
  • 826 VARIO S4 (841)
  • 828 VARIO
  • 828 VARIO S4 (842)
  • 924 VARIO
  • 924 VARIO (924)
  • 926 VARIO
  • 926 VARIO (926)
  • 927 VARIO
  • 927 VARIO S4 (950)
  • 930 VARIO
  • 930 VARIO (930)
  • 930 VARIO S4 (951)
  • 933 VARIO
  • 933 VARIO SCR (944)
  • 936 VARIO
  • 936 VARIO S4 (953)
  • 939 VARIO
  • 939 VARIO S4 (954)

Manufacturer Information

Fendt G842900140010

Additional Product Information

Product Specifications

Brand: Sparex
CE Approved: Yes
Connection Type: None
ECE Rating: Reg 10, Reg 65
Effective Lumens: 1200
Fixing: Flexible Pin
Function: 3 functions: Rotating, Double Flashes, Single Flash
Housing Material: Rubber
Interference EMC EMI CISPR 25: Class 5
IP Rating: IP65
ISO Rating: ISO 9001
Lens Colour: Amber
Lens Material: Plastic Safety Glass
Light source: LED
Lumens Raw: 2400
Lux Value: 480
Notes: Fendt grade specification with CISPR25 EMC
Number of LEDs: 12 LEDs
Overall height (mm): 185
Overall length (mm): 130
Overall width (mm): 130
Power Consumption @ 12V: 0.667Amps
Power Consumption @ 24V: 1.0 Amp
Profile: Low
Related products: 167230
RoHS Approved: Yes
SAE Approved: No
Shape: Round
Speed: 125+/-10 rpm Double Flash
Tariff Code: 8512200090
Volts: 12-24V
Watts: 8-24W
With Noise Suppression: Yes
Working Temperature °C: -30°C to 50°C
Ø (mm): 130

OEM Manufacture Information

Fendt
G842900140010

Suitable For Information

Fendt
207 VARIO (330), 207 VARIO S3 (300), 208 VARIO (331), 208 VARIO S3 (301), 209 VARIO (332), 209 VARIO S3 (302), 210 VARIO (333), 210 VARIO S3 (303), 211 VARIO (334), 211 VARIO S3 (304), 310 VARIO, 310 VARIO S4 (347), 311 VARIO, 311 VARIO S4 (348), 312 VARIO (325), 312 VARIO (339), 312 VARIO S4 (349), 313 VARIO, 313 VARIO S4 (350), 512 VARIO, 512 VARIO S4 (435), 513 VARIO, 513 VARIO S4 (436), 514 VARIO, 514 VARIO S4 (437), 516 VARIO, 516 VARIO S4 (438), 714 VARIO, 716 VARIO, 718 VARIO, 720 VARIO S4 (741), 722 VARIO S4 (742), 724 VARIO S4 (743), 820 VARIO, 822 VARIO, 822 VARIO S4 (839), 824 VARIO, 824 VARIO S4 (840), 826 VARIO, 826 VARIO S4 (841), 828 VARIO, 828 VARIO S4 (842), 924 VARIO, 924 VARIO (924), 926 VARIO, 926 VARIO (926), 927 VARIO, 927 VARIO S4 (950), 930 VARIO, 930 VARIO (930), 930 VARIO S4 (951), 933 VARIO, 933 VARIO SCR (944), 936 VARIO, 936 VARIO S4 (953), 939 VARIO, 939 VARIO S4 (954)

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Amber LED Beacon, Class 5, Flexible Pin, 12-24V

- **Fendt Compatible LED Beacon:** Designed specifically for Fendt tractors, ensuring a perfect fit and optimal performance.
- **High Visibility Amber Lens:** Provides excellent visibility in all conditions with a bright amber lens made from safety glass.
- **Durable and Reliable:** Features a robust rubber housing and IP65 rating for dust and water resistance, ensuring long-lasting performance.
- **Multiple Flashing Functions:** Offers three functions: rotating, double flashes, and single flash, for versatile signaling needs.
- **Class 5 Interference:** Meets CISPR25 EMC standards for minimal interference with other electronic systems.
