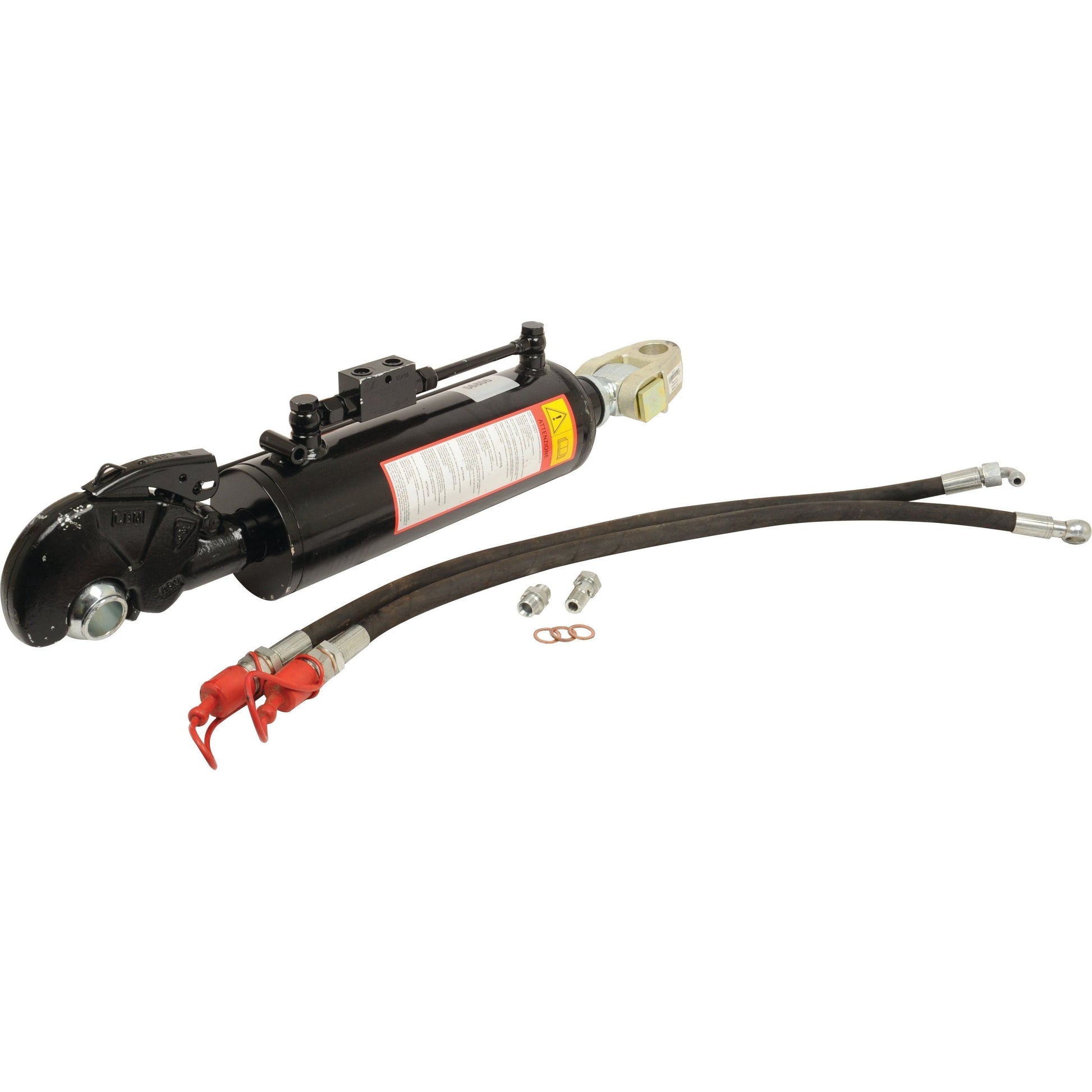

Hydraulic Top Link (Cat.3/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 610mm. | Sparex Part No.S.399972

Hydraulic Top Link (Cat.3/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 610mm. | Sparex Part No.S.399972

SKU:SP-S.399972

Regular price €654,95 EUR
Regular price Sale price €654,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 3 left

Quantity
Default Title

Introducing the Hydraulic Top Link (Cat.3/2) with a robust Cylinder Bore of 80mm. This versatile hydraulic top link is designed for optimal performance, featuring a minimum length of 610mm and a maximum length of 825mm. It comes complete with a hose set, chain & ball, and a marker label equipped with a knuckle & pin for easy installation and use.

Product Specifications
  • A (mm): 152
  • Alternative to: 56796
  • Brand: Sparex
  • Category Implement End: 2
  • Category Tractor End: 3
  • Category: 3/2
  • Check Valve Position: Side
  • Cylinder Bore (mm): 80
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 6930
  • Maximum Length (mm): 825
  • Minimum Length (mm): 610
  • Related Products: 10288, 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
  • Rod Diameter (mm): 40
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 9240
  • Tractor End Fixing: S.10288
  • Tractor End: Knuckle
Compatibility Information

This hydraulic top link is designed for universal compatibility and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring a broad application across various machinery.

Additional Product Information

Product Specifications

A (mm): 152
Alternative to: 56796
Brand: Sparex
Category Implement End: 2
Category Tractor End: 3
Category: 3/2
Check Valve Position: Side
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 825
Minimum Length (mm): 610
Related products: 10288,10292,32255,33008,33017,33137,33144,33158,39965,39966,39967,39968
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code:8412212090
Thrust kgs @180 (bar): 9240
Tractor End Fixing: S.10288
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link (Cat.3/2) - 80mm Bore, 610mm Min. Length

- **Heavy-duty Hydraulic Top Link:** Designed for demanding agricultural applications with a robust 80mm cylinder bore.
- **High Lift Capacity:** Capable of lifting up to 6930 kgs at 180 bar pressure.
- **Versatile Length Adjustment:** Adjustable from 610mm to 825mm to accommodate various implement heights.
- **Quick Release CBM Hook:** Provides fast and easy attachment to implements.
- **Suitable for Tractors up to 180hp:** Compatible with a wide range of tractors.
