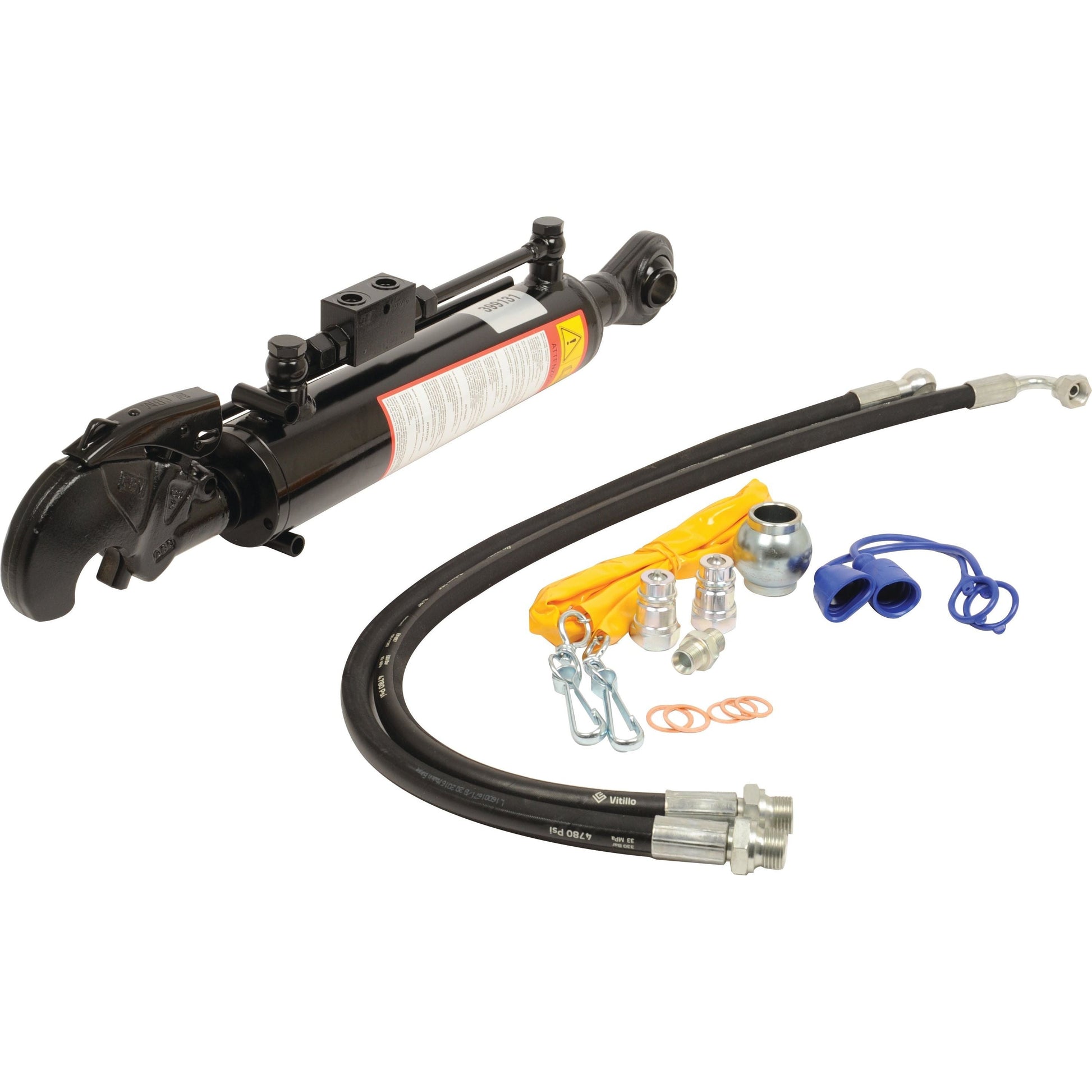

Hydraulic Top Link (Cat.1/2) Ball and Q.R CBM Hook, Cylinder Bore: 50mm, Min. Length : 520mm. | Sparex Part No.S.399781

Hydraulic Top Link (Cat.1/2) Ball and Q.R CBM Hook, Cylinder Bore: 50mm, Min. Length : 520mm. | Sparex Part No.S.399781

SKU:SP-S.399781

Regular price €388,95 EUR
Regular price Sale price €388,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 4 left

Quantity
Default Title

Introducing the Hydraulic Top Link (Cat.1/2) with a robust Cylinder Bore of 50mm. This versatile hydraulic top link is designed for optimal performance, featuring a minimum length of 520mm and a maximum length of 735mm. It comes complete with a hose set, chain & ball, and a marker label equipped with a Q.R CBM Hook for easy attachment.

Product Specifications
  • A (mm): 60
  • Brand: Sparex
  • Category Implement End: 2
  • Category Tractor End: 1
  • Category: 1/2
  • Check Valve Position: Side
  • Cylinder Bore (mm): 50
  • Implement End: Q.R CBM Hook
  • Lift Capacity @ 180 bar: 2300 kg
  • Maximum Length (mm): 735
  • Minimum Length (mm): 520
  • Related Products: 32251, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
  • Rod Diameter (mm): 30
  • Suitable for Tractors up to: 60hp (45kW)
  • Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
  • Tariff Code: 8412212090
  • Thrust @ 180 bar: 3600 kg
  • Tractor End Fixing: Ball End
  • Tractor End: Ball
Compatibility Information

This hydraulic top link is designed for universal compatibility and is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring a broad application across various tractor models.

Additional Product Information

Product Specifications

A (mm): 60
Brand: Sparex
Category Implement End: 2
Category Tractor End: 1
Category: 1/2
Check Valve Position: Side
Cylinder Bore (mm): 50
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 2300
Maximum Length (mm): 735
Minimum Length (mm): 520
Related products: 32251,33008,33017,33137,33144,33158,33201,39965,39966,39967,39968,148199
Rod Ø (mm): 30
Suitable for Tractors up to HP/Kw: 60hp (45kW)
Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
Tariff Code:8412212090
Thrust kgs @180 (bar): 3600
Tractor End Fixing: Ball End
Tractor End: Ball

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link (Cat.1/2) - 50mm Bore, 520mm Min. Length

- **Heavy-duty Hydraulic Top Link:** Designed for demanding agricultural applications with a robust 50mm cylinder bore.
- **Adjustable Length:** Offers flexibility with a minimum length of 520mm and a maximum length of 735mm.
- **High Lift Capacity:** Capable of lifting up to 2300kg at 180 bar pressure.
- **Quick Release CBM Hook:** Ensures fast and secure attachment to implements.
- **Universal Compatibility:** Suitable for tractors up to 60hp (45kW) and compatible with various makes and models.
