Hydraulic Top Link (Cat.-/2) and Q.R. Hook, Cylinder Bore: 80mm, Min. Length : 550mm. | Sparex Part No.S.56795

Hydraulic Top Link (Cat.-/2) and Q.R. Hook, Cylinder Bore: 80mm, Min. Length : 550mm. | Sparex Part No.S.56795

SKU:SP-S.56795

Regular price €633,95 EUR
Regular price Sale price €633,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 8 left

Quantity
Default Title

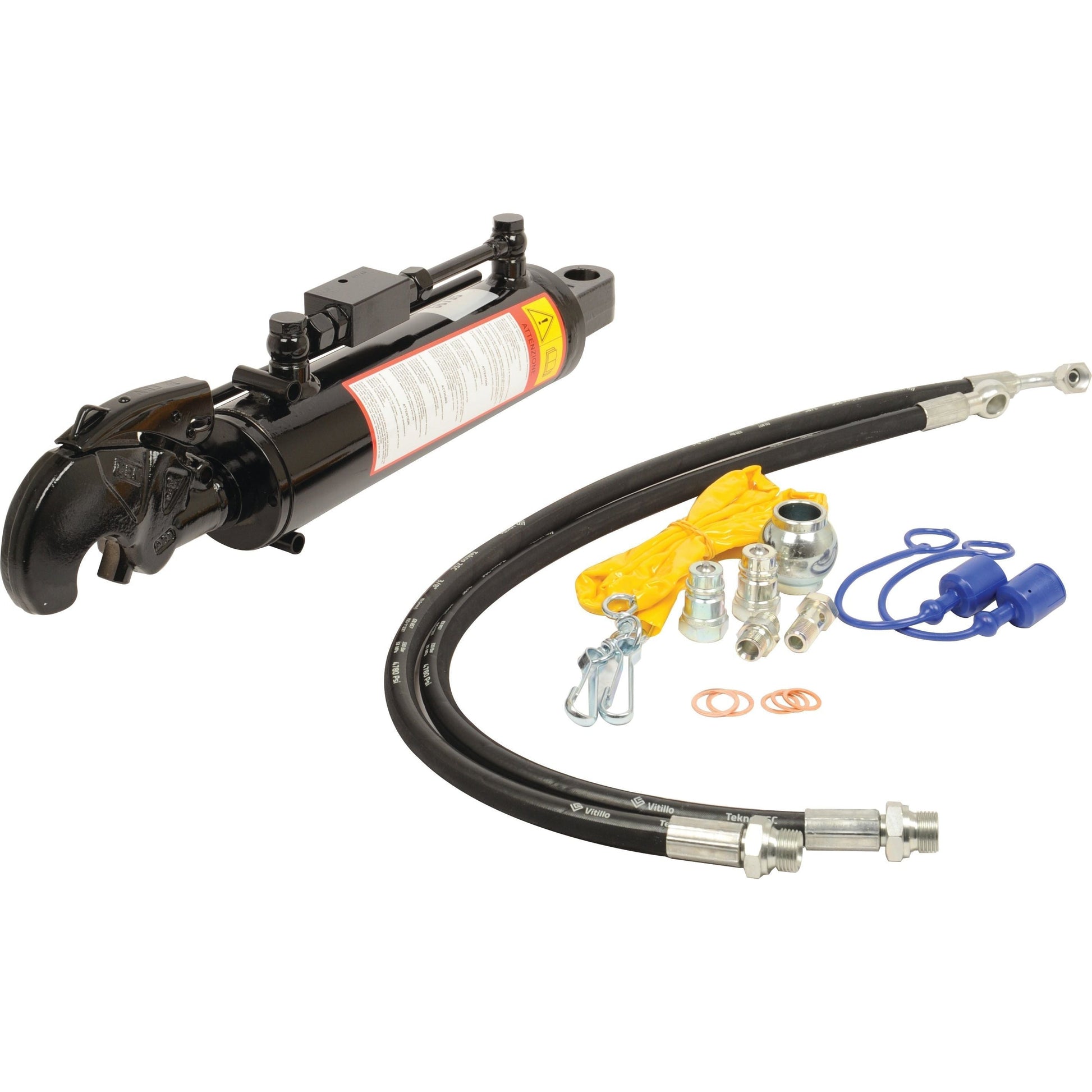

Hydraulic Top Link (Cat.-/2) with Q.R. Hook - Sparex Part No. S.56795

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this hydraulic linkage is perfect for tractors up to 180hp (135kW). With a minimum length of 550mm and a maximum length of 765mm, it provides the flexibility needed for various applications.

Product Specifications
  • A (mm): 120
  • Brand: Sparex
  • Category Implement End: 2
  • Category: -/2
  • Check Valve Position: Top
  • Cylinder Bore (mm): 80
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs) @ 180 bar: 6930
  • Loop Option: No
  • Maximum Length (mm): 765
  • Minimum Length (mm): 550
  • Ram Stroke (mm): 215
  • Rod Ø (mm): 40
  • Thrust (kgs) @ 180 bar: 9240
  • Tariff Code: 8412212090
  • Related Products: 10287, 10288, 10289, 10290, 10292, 32255, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56817, 148199
Compatibility Information

This hydraulic top link is not associated with any specific make or model, making it a versatile choice for various applications.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad compatibility across different machinery.

Additional Product Information

Product Specifications

A (mm): 120
Brand: Sparex
Category Implement End: 2
Category: -/2
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Loop option: No
Maximum Length (mm): 765
Minimum Length (mm): 550
Ram Stroke (mm): 215
Related products: 10287, 10288, 10289, 10290, 10292, 32255, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56817, 148199
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 9240

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link with Q.R. Hook - 80mm Bore, 550mm Min. Length

- **Heavy-duty Hydraulic Top Link:** Designed for tractors up to 180hp (135kW), ensuring robust performance for demanding agricultural tasks.
- **Q.R. CBM Hook Implement End:** Provides a secure and quick-release connection for various implements, enhancing efficiency and versatility.
- **High Lift Capacity:** With a lift capacity of 6930 kgs @ 180 bar, this top link can handle heavy loads with ease.
- **Adjustable Length:** The adjustable length from 550mm to 765mm allows for optimal positioning and flexibility in different applications.
- **Sparex Quality:** Manufactured by Sparex, a trusted brand known for its high-quality agricultural components, ensuring durability and reliability.
