Hydraulic Top Link (Cat.2/2) Ball and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 562mm. | Sparex Part No.S.331866

Hydraulic Top Link (Cat.2/2) Ball and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 562mm. | Sparex Part No.S.331866

SKU:SP-S.331866

Regular price £442.80 GBP
Regular price £442.80 GBP Sale price £442.80 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 7 left

Quantity
Default Title

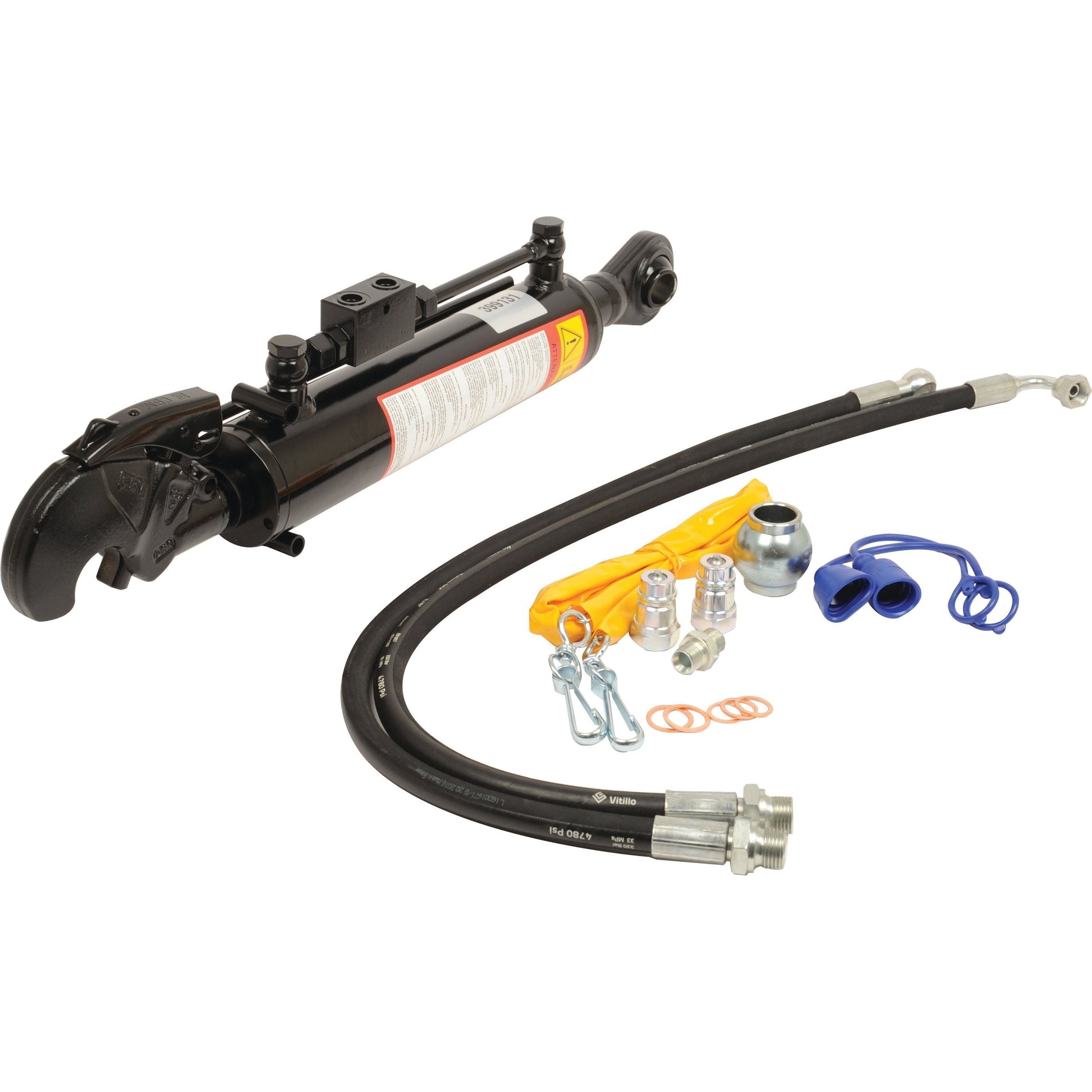

Hydraulic Top Link (Cat.2/2) with Ball and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance and versatility in agricultural applications. This high-quality hydraulic top link features a minimum length of 562mm and a maximum length of 753mm, making it suitable for a variety of tractor models.

Key Features:
  • Supplied with: Hose set, chain & ball, and a marker label (with CBM Hook).
  • Cylinder Bore: 63mm
  • Lift Capacity: 3960 kg @ 180 bar
  • Thrust Capacity: 5730 kg @ 180 bar
  • Rod Diameter: 35mm
  • Check Valve Position: Top
  • Tractor Compatibility: Suitable for tractors up to 100hp (74kW)
  • Tractor End Fixing: S.32949
  • Implement End: Q.R CBM Hook
Product Specifications:
  • A (mm): 125
  • Alternative to: 32934
  • Category Implement End: 2
  • Category Tractor End: 2
  • Category: 2/2
  • Maximum Length (mm): 753
  • Minimum Length (mm): 562
  • Related Products: 32253, 32949, 32952, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
  • Tariff Code: 8412212090
Compatibility Information:

This hydraulic top link is not associated with any specific make or model, providing flexibility for various applications.

Manufacturer Information:

This product is not linked to any particular OEM part number, ensuring a broad range of compatibility.

Additional Product Information

Product Specifications

A (mm): 125
Alternative to: 32934
Brand: Sparex
Category Implement End: 2
Category Tractor End: 2
Category: 2/2
Check Valve Position: Top
Cylinder Bore (mm): 63
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 3960
Maximum Length (mm): 753
Minimum Length (mm): 562
Related products: 32253, 32949, 32952, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
Rod Ø (mm): 35
Suitable for Tractors up to HP/Kw: 100hp (74kW)
Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 5730
Tractor End Fixing: S.32949
Tractor End: Ball

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Cat.2 Hydraulic Top Link with Ball & QR Hook - Sparex S.331866

- **Heavy-duty hydraulic top link with a robust 63mm cylinder bore**
- **High lift capacity of 3960kg @ 180 bar for demanding agricultural tasks**
- **Versatile quick-release CBM hook implement end for easy attachment and detachment**
- **Adjustable length from 562mm to 753mm for optimal fit on various tractor models**
- **Suitable for tractors up to 100hp (74kW) for a wide range of applications**
