Vendor: Sparex - SKU:

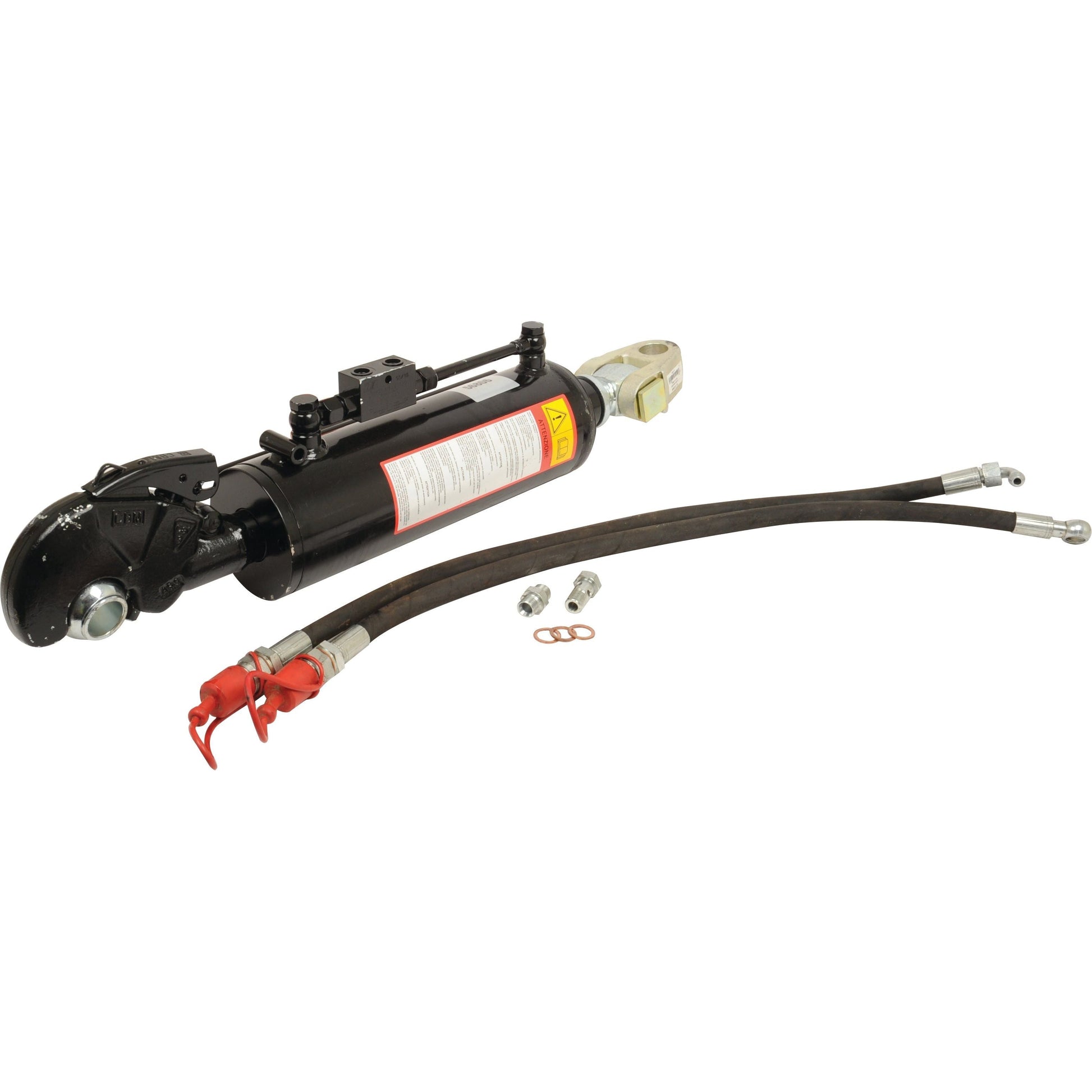

Hydraulic Top Link (Cat.28mm/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 105mm, Min. Length : 680mm. | Sparex Part No.S.331523

Hydraulic Top Link (Cat.28mm/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 105mm, Min. Length : 680mm. | Sparex Part No.S.331523

SKU:SP-S.331523

Regular price £734.40 GBP
Regular price £734.40 GBP Sale price £734.40 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 7 left

Quantity
Default Title

Hydraulic Top Link (Cat.28mm/3) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This robust hydraulic top link features a minimum length of 680mm and a maximum length of 895mm, making it versatile for various tractor setups. It comes complete with a hose set, chain & ball, and a marker label with knuckle & pin for easy installation and use.

Product Specifications
  • A (mm): 152
  • Alternative to: 56802
  • Brand: Sparex
  • Category Implement End: 3
  • Category Tractor End: 28mm
  • Category: 28mm/3
  • Check Valve Position: Top
  • Cylinder Bore (mm): 105
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs) @ 180 bar: 11520
  • Maximum Length (mm): 895
  • Minimum Length (mm): 680
  • Related Products: 10289, 10292, 32260, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
  • Rod Diameter (mm): 45
  • Suitable for Tractors up to: 250hp (184kW)
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Tariff Code: 8412212090
  • Thrust (kgs) @ 180 bar: 14440
  • Tractor End Fixing: S.10289
  • Tractor End: Knuckle
Compatibility Information

This hydraulic top link is designed to be universally compatible and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad applicability across various agricultural machinery.

Additional Product Information

Product Specifications

A (mm): 152
Alternative to: 56802
Brand: Sparex
Category Implement End: 3
Category Tractor End: 28mm
Category: 28mm/3
Check Valve Position: Top
Cylinder Bore (mm): 105
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 11520
Maximum Length (mm): 895
Minimum Length (mm): 680
Related products: 10289, 10292, 32260, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
Rod Ø (mm): 45
Suitable for Tractors up to HP/Kw: 250hp (184kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code: 8412212090
Thrust kgs @180 (bar): 14440
Tractor End Fixing: S.10289
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link - Cat.28mm, 105mm Bore, Sparex S.331523

- **Heavy Duty Hydraulic Top Link:** Designed for high-performance agricultural applications with a robust construction.
- **High Lift Capacity:** Capable of lifting up to 11520 kgs at 180 bar, suitable for demanding tasks.
- **Versatile Length Adjustment:** Adjustable from 680mm to 895mm, accommodating various tractor setups.
- **Quick Release CBM Hook:** Provides fast and easy attachment to implements.
- **Universal Compatibility:** Not associated with any specific OEM part number or make/model, ensuring broad applicability.
