Hydraulic Top Link (Cat.3/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 585mm. | Sparex Part Number: S.331862

Hydraulic Top Link (Cat.3/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 585mm. | Sparex Part Number: S.331862

SKU:SP-S.331862

Regular price £514.80 GBP
Regular price £514.80 GBP Sale price £514.80 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 2 left

Quantity
Default Title

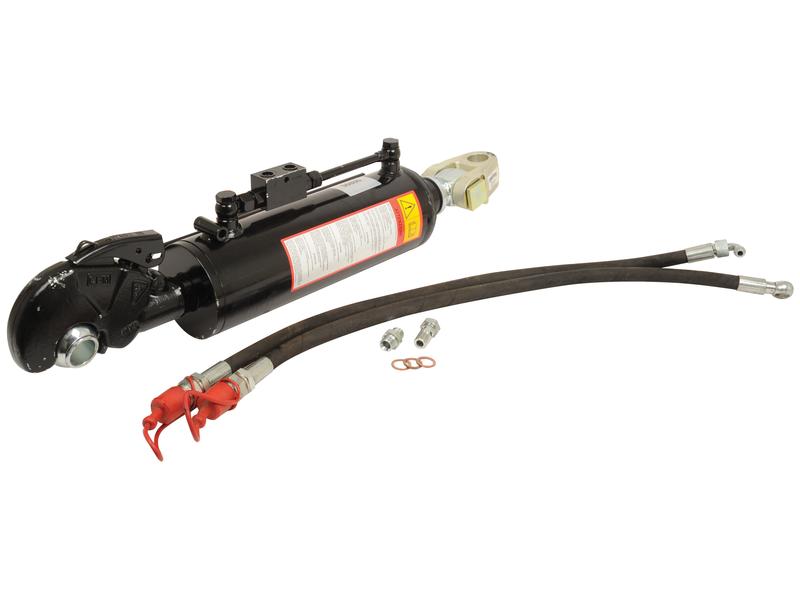

Hydraulic Top Link (Cat.3/2) - Knuckle and Q.R CBM Hook

Sparex Part Number: S.331862

Upgrade your tractor's performance with the Hydraulic Top Link designed for optimal functionality and durability. This top link features a robust cylinder bore of 63mm and is suitable for tractors up to 100hp (74kW).

Key Specifications:

  • Length: Minimum 585mm, Maximum 776mm
  • Lift Capacity: 3960 kg @ 180 bar
  • Thrust Capacity: 5730 kg @ 180 bar
  • Rod Diameter: 35mm
  • Check Valve Position: Top
  • Implement End: Q.R CBM Hook
  • Tractor End: Knuckle
  • Category: 3/2
  • Category Implement End: 2
  • Category Tractor End: 3
  • A (mm): 148
  • Alternative to: 32934
  • Tariff Code: 8412212090

Included Components:

This hydraulic top link comes complete with:

  • Hose set
  • Chain & ball
  • Marker label with threaded rod
  • Knuckle & pin

Related Products:

Explore additional compatible products: 10288, 10292, 32253, 32946, 32952, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199.

Enhance your tractor's capabilities with the reliable and efficient Hydraulic Top Link from Sparex. Order now to experience superior performance!

Additional Product Information

Product Specifications

A (mm): 148
Alternative to: 32934
Brand: Sparex
Category Implement End: 2
Category Tractor End: 3
Category: 3/2
Check Valve Position: Top
Cylinder Bore (mm): 63
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 3960
Maximum Length (mm): 776
Minimum Length (mm): 585
Related products: 10288, 10292, 32253, 32946, 32952, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
Rod Ø (mm): 35
Suitable for Tractors up to HP/Kw: 100hp (74kW)
Supplied with: Hose set, chain & ball, marker label with threaded rod, knuckle & pin
Tariff Code: 8412212090
Thrust kgs @180 (bar): 5730
Tractor End Fixing: S.10288
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com
