Vendor: Sparex - SKU:

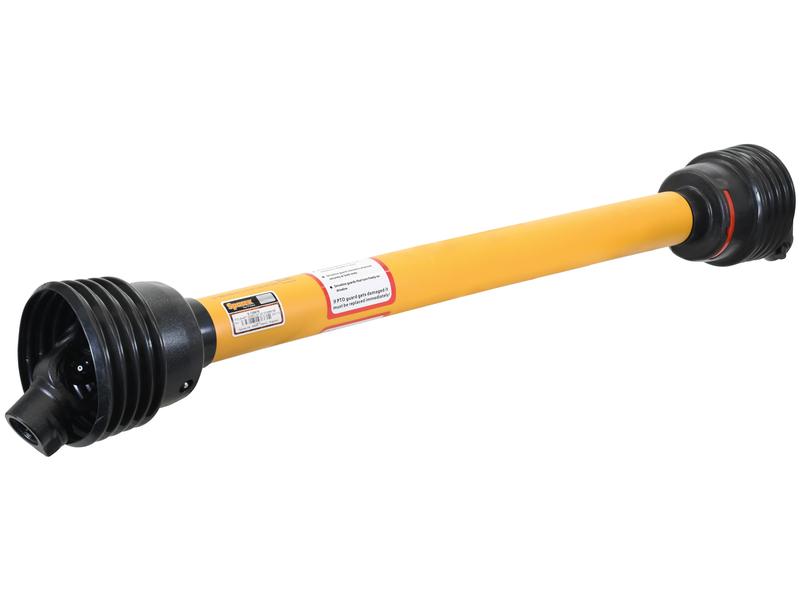

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.128676

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.128676

SKU:SP-S.128676

Regular price €242,95 EUR
Regular price Sale price €242,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
Default Title

GARDLOC PTO Shaft - (Lz) Length: 1010mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Specifications:

  • Alternative to: 164276
  • Brand: GARDLOC
  • Clutch Setting: 790 Nm
  • Guard Type: Gardloc
  • HP Rating @ 540 RPM: 21 HP
  • HP Rating @ 1000 RPM: 40 HP
  • HP Rating Range @ 540 RPM: Up to 54 HP
  • Kilowatt Power Rating @ 540 RPM: 15 kW
  • Kilowatt Power Rating @ 1000 RPM: 30 kW
  • PTO Series: AB2/A2
  • Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
  • Torque: 210-334 Nm (270 Nm nominal)
  • Total Closed Length: 1208 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 23.8 x 61.2 mm
  • Shearbolt Clutch Bolt Diameter: 6 mm
  • Shearbolt Clutch Radius: 48 mm
  • Tube Reference: 12504/12505
  • Replacement Guard: S.168310
  • Related Products: 166692
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is an essential component for your agricultural machinery, ensuring reliable power transfer and efficiency. Upgrade your equipment with this robust and versatile shaft today!

Additional Product Information

Product Specifications

Alternative to: 164276
Brand: GARDLOC
Clutch Setting Nm: 790
Guard Type: Gardloc
HP Rating @ 540RPM: 21
HP Rating @ 1000RPM: 40
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
Italian Series: AB2/A2
Kilowatt Power Rating @ 540RPM: 15
Kilowatt Power Rating @ 1000RPM: 30
Lz Length (mm): 1010
PTO Series: AB2/A2
Related products: 166692
Replacement Guard: S.168310
Shearbolt Clutch Bolt Ø mm: 6
Shearbolt Clutch Radius mm: 48
Tariff Code: 8483908990
Torque (Nm): 270
Torque: 210-334Nm
Total Closed Length (mm): 1208
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12504/12505
Universal Joint Dimensions: 23.8 x 61.2mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

GARDLOC PTO Shaft - 1010mm, 1 3/8" x 6 Spline, S.128676

- **1010mm Length:** Provides optimal reach for various applications.
- **1 3/8'' x 6 Spline Quick Release:** Ensures fast and easy connection to your tractor.
- **1 3/8'' x 6 Spline Shear Bolt Limiter:** Offers reliable overload protection for your equipment.
- **Gardloc Guard Type:** Provides superior protection and durability.
- **Up to 54 HP Rating:** Handles demanding agricultural tasks with ease.
