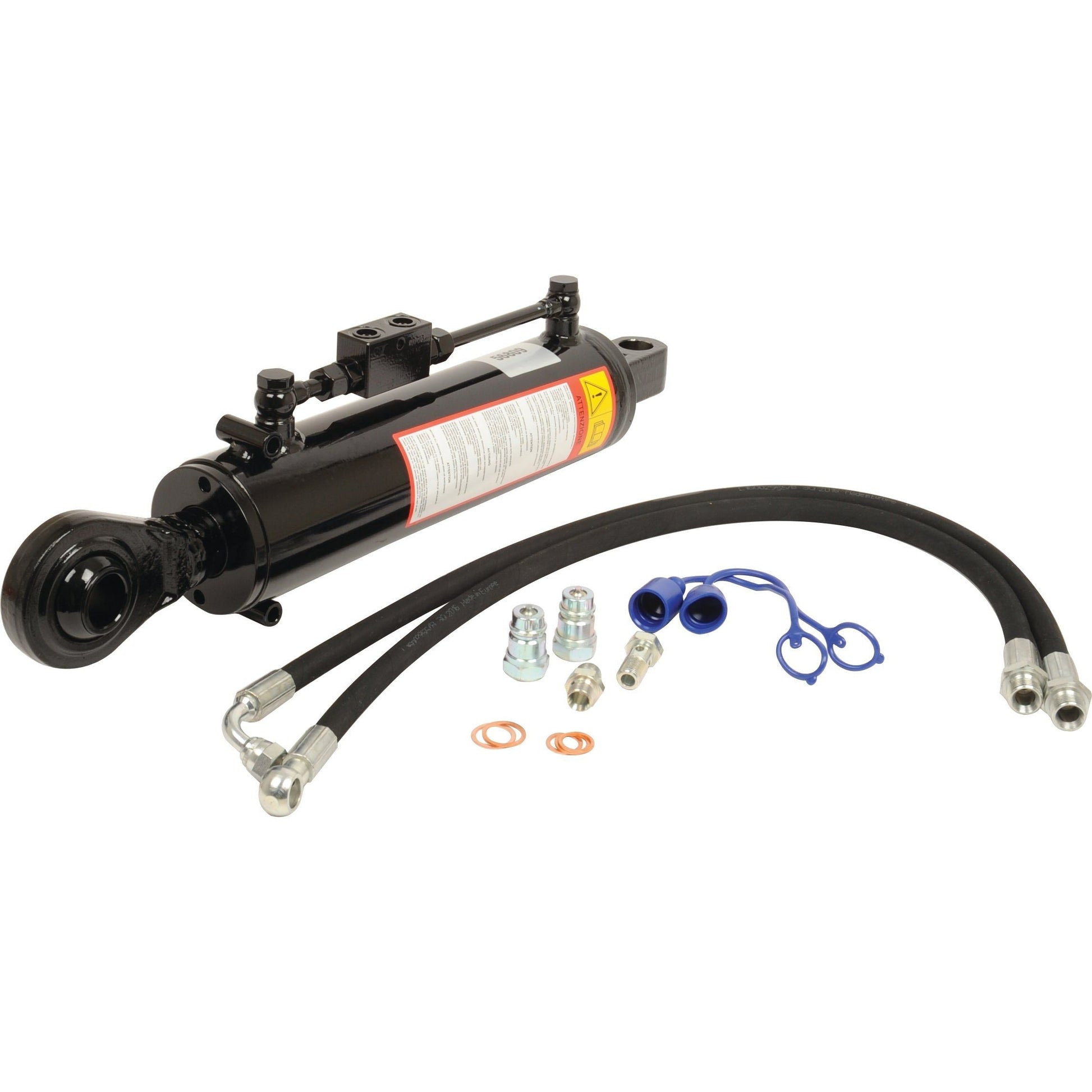

Hydraulic Top Link (Cat.-/3) Knuckle and Ball, Cylinder Bore: 90mm, Min. Length : 640mm. | Sparex Part No.S.56809

Hydraulic Top Link (Cat.-/3) Knuckle and Ball, Cylinder Bore: 90mm, Min. Length : 640mm. | Sparex Part No.S.56809

SKU:SP-S.56809

Regular price €723,95 EUR
Regular price Sale price €723,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
Default Title

Hydraulic Top Link (Cat.-/3) Knuckle and Ball, Cylinder Bore: 90mm

Introducing the Hydraulic Top Link by Sparex, designed for optimal performance in agricultural applications. This robust hydraulic link features a minimum length of 640mm and a maximum length of 910mm, making it versatile for various tractor setups.

Product Specifications
  • A (mm): 120
  • Brand: Sparex
  • Category Implement End: 3
  • Check Valve Position: Top
  • Cylinder Bore (mm): 90
  • Implement End: Ball
  • Lift Capacity (kgs @ 180 bar): 8770
  • Loop Option: 45
  • Ram Stroke (mm): 270
  • Rod Diameter (mm): 45
  • Thrust (kgs @ 180 bar): 11700
  • Tractor End: Knuckle
  • Suitable for Tractors up to: 200hp (147kW)
  • Tariff Code: 8412212090
  • Related Products: 10287, 10288, 10289, 10290, 10292, 32257, 33137, 33144, 33158, 39965, 39966, 39967, 39968, 56817
Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring a broad application across various machinery.

Enhance your tractor's functionality with the reliable and efficient Hydraulic Top Link from Sparex. Order now to experience superior performance in your agricultural tasks!

Additional Product Information

Product Specifications

A (mm): 120
Brand: Sparex
Category Implement End: 3
Category: -/3
Check Valve Position: Top
Cylinder Bore (mm): 90
Implement End: Ball
Lift kgs @180 bar: 8770
Loop option: 45
Maximum Length (mm): 910
Minimum Length (mm): 640
Ram Stroke (mm): 270
Related products: 10287, 10288, 10289, 10290, 10292, 32257, 33137, 33144, 33158, 39965, 39966, 39967, 39968, 56817
Rod Ø (mm): 45
Suitable for Tractors up to HP/Kw: 200hp (147kW)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 11700
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link Knuckle & Ball - 90mm Bore, 640mm Min. Length

- **Heavy-duty hydraulic top link with 90mm cylinder bore for powerful lifting capacity.**
- **Versatile design with 640mm minimum length and 910mm maximum length for various tractor setups.**
- **High lift capacity of 8770 kgs @ 180 bar for demanding agricultural applications.**
- **Knuckle and ball ends for secure and reliable connection.**
- **Suitable for tractors up to 200hp (147kW) for a wide range of applications.**
