Vendor: Sparex - SKU:

Hydraulic Top Link (Cat.3/3) Ball and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 667mm. | Sparex Part No.S.331346

Hydraulic Top Link (Cat.3/3) Ball and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 667mm. | Sparex Part No.S.331346

SKU:SP-S.331346

Regular price £690.36 GBP
Regular price £690.36 GBP Sale price £690.36 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 2 left

Quantity
Default Title

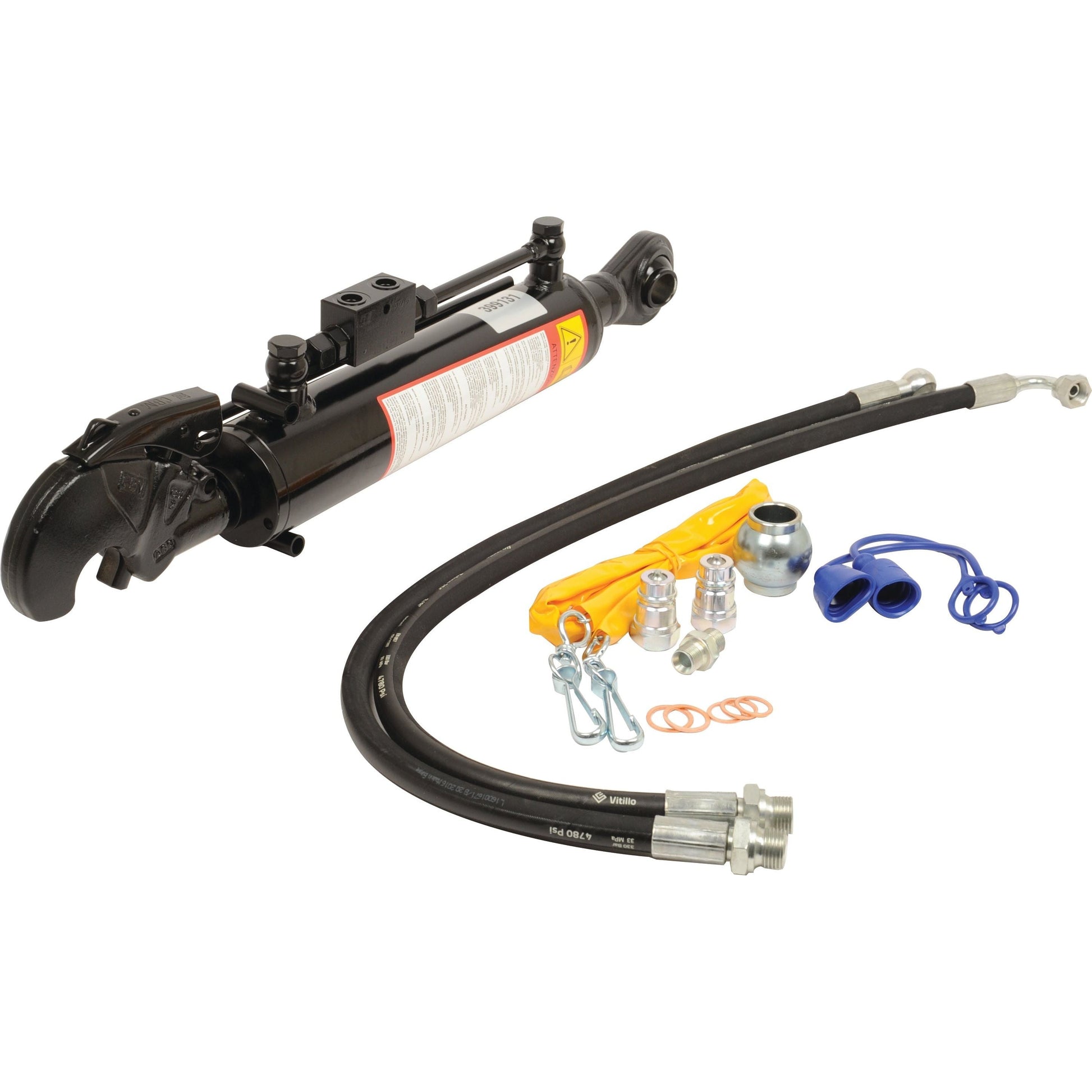

Hydraulic Top Link (Cat.3/3) with Ball and Q.R CBM Hook - Sparex Part No. S.331346

Enhance your agricultural equipment with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 667mm and a maximum length of 923mm. It comes complete with a hose set, chain & ball, and a marker label equipped with a CBM Hook for easy installation and operation.

Product Specifications
  • A (mm): 125
  • Alternative to: 56805
  • Brand: Sparex
  • Category Implement End: 3
  • Category Tractor End: 3
  • Category: 3/3
  • Check Valve Position: Top
  • Cylinder Bore (mm): 80
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 6930
  • Maximum Length (mm): 923
  • Minimum Length (mm): 667
  • Related Products: 32255, 32951, 32977, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
  • Rod Diameter (mm): 40
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 9240
  • Tractor End Fixing: S.32951
  • Tractor End: Ball
Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.

Additional Product Information

Product Specifications

A (mm): 125
Alternative to: 56805
Brand: Sparex
Category Implement End: 3
Category Tractor End: 3
Category: 3/3
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 923
Minimum Length (mm): 667
Related products: 32255, 32951, 32977, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 9240
Tractor End Fixing: S.32951
Tractor End: Ball

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Cat.3 Hydraulic Top Link with Ball & QR Hook - Sparex S.331346

- **Heavy Duty Hydraulic Top Link:** Designed for tractors up to 180hp (135kW), this top link offers exceptional strength and durability.
- **High Lift Capacity:** With a lift capacity of 6930 kgs @ 180 bar, this top link can handle demanding agricultural tasks.
- **Quick Release CBM Hook:** The quick release CBM hook provides fast and easy attachment and detachment of implements.
- **Universal Compatibility:** This top link is designed for universal fitment and is not associated with any specific make or model.
- **Complete Package:** Comes with a hose set, chain & ball, and a marker label equipped with a CBM Hook for easy installation and operation.
