Vendor: Sparex - SKU:

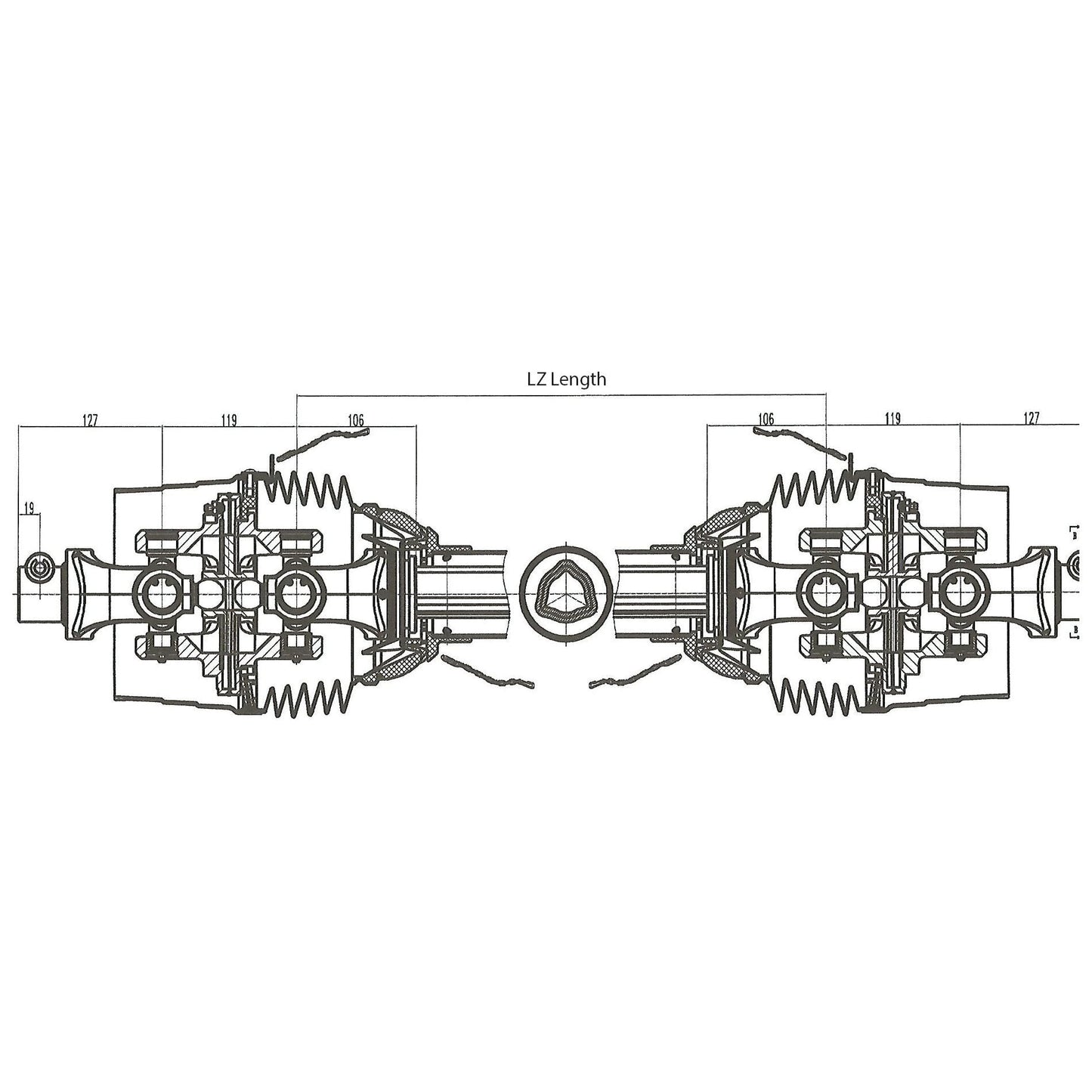

Sparex PTO Shaft - EUCV Wide Angle - Both Ends, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline 80° W.A. | Sparex Part No.S.119796

Sparex PTO Shaft - EUCV Wide Angle - Both Ends, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline 80° W.A. | Sparex Part No.S.119796

SKU:SP-S.119796

Regular price £781.44 GBP
Regular price £781.44 GBP Sale price £781.44 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 13 left

Quantity
Default Title

Sparex PTO Shaft - EUCV Wide Angle - Both Ends

Length: 1010mm | Implement End: 1 3/8'' x 6 Spline 80° W.A. | Tractor End: 1 3/8'' x 6 Spline 80° W.A.

HP Rating @ 540RPM: 55HP | Series: AB6-80°/A6-80°

Product Specifications
  • Brand: Sparex
  • HP Rating @ 540RPM: 55
  • HP Rating Range @ 540RPM: 55 to 119
  • Kilowatt Power Rating @ 540RPM: 41
  • Torque (Nm): 1450
  • Torque Range: 1245 - 2250Nm
  • Total Closed Length (mm): 1502
  • Lz Length (mm): 1010
  • Implement End: 1 3/8'' x 6 Spline 80° W.A.
  • Tractor End: 1 3/8'' x 6 Spline 80° W.A.
  • Tube Profile: Triangle
  • Tube Ref: 24516/12517
  • Universal Joint Dimensions: 27 x 92 & 30.2 x 100mm
  • PTO Series: AB6-80°/A6-80°
  • Tariff Code: 8483908990
  • Notes: No spare parts available
Compatibility Information

This product is not associated with any particular make or model.

Manufacturer Information

This product is not associated with any particular OEM part number.

Additional Product Information

Product Specifications

Brand: Sparex
HP Rating @ 540RPM: 55
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline 80° W.A.
Italian Series: AB6-80°/A6-80°
Kilowatt Power Rating @ 540RPM: 41
Lz Length (mm): 1010
Notes: No spare parts available
PTO Series: AB6-80°/A6-80°
Tariff Code: 8483908990
Torque (Nm): 1450
Torque: 1245 - 2250Nm
Total Closed Length (mm): 1502
Tractor End: 1 3/8'' x 6 Spline 80° W.A.
Tube Profile: Triangle
Tube Ref: 24516/12517
Universal Joint Dimensions: 27 x 92 & 30.2 x 100mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Sparex PTO Shaft - 1010mm, 1 3/8" x 6 Spline 80° W.A.

- **Sparex PTO Shaft:** High-quality, durable PTO shaft for agricultural equipment.
- **Wide Angle Design:** 80° wide angle design for increased flexibility and maneuverability.
- **Heavy Duty Construction:** Built to withstand demanding agricultural applications.
- **High HP Rating:** Rated for 55HP @ 540RPM, suitable for a wide range of implements.
- **Versatile Compatibility:** Fits a variety of tractors and implements with 1 3/8'' x 6 Spline 80° W.A. connections.
