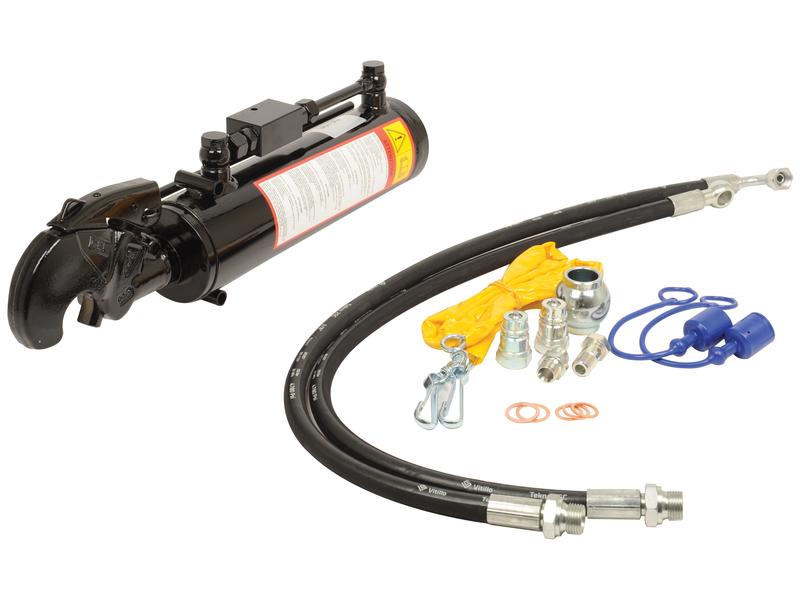

Sparex | Hydraulic Top Link (Cat.-/3) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 690mm.

Sparex | Hydraulic Top Link (Cat.-/3) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 690mm.

SKU:SP-S.56805

Regular price €656,95 EUR
Regular price Sale price €656,95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 4 left

Quantity
Default Title

Introducing the Sparex Hydraulic Top Link, designed for optimal performance in agricultural applications. With a minimum length of 690mm and a maximum length of 885mm, this top link is perfect for tractors up to 180hp (135kW). It features a robust 80mm cylinder bore and a lifting capacity of 6930 kg at 180 bar, ensuring reliable operation under heavy loads.

Each unit is supplied with a comprehensive hose set, chain & ball, and a marker label (without knuckle & pin). To complete the installation, you will need a Threaded Rod (S.32947), a Knuckle (options include S.56815 Ø20mm, S.10287 Ø25.4mm, S.10289 Ø28mm, S.10290 Ø30mm, S.10288 Ø32mm, or S.56817 Ø36mm), or a fixing pin (S.10292) along with a locking collar (S.32977). Alternatively, you can use a threaded ball end (S.32950 Ø25.4mm or S.32951 Ø32mm) with the same locking collar.

Product Specifications
  • A (mm): 210
  • Brand: Sparex
  • Category Implement End: 3
  • Check Valve Position: Top
  • Implement End: Q.R CBM Hook
  • Ram Stroke (mm): 195
  • Rod Ø (mm): 40
  • Loop option: No
  • Tariff Code: 8412212090
  • Thrust kgs @180 (bar): 9240
  • Related products: 10287, 10288, 10289, 10292, 32255, 32947, 32950, 32951, 32977, 33004, 33010, 331341, 331342, 331343, 331344, 331345, 331346, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 56818, 148196, 148197
Compatibility Information

This product is not associated with any particular make or model.

Manufacture Information

This product is not associated with any particular OEM part number.

Additional Product Information

Product Specifications

A (mm): 210
Brand: Sparex
Category Implement End: 3
Category: -/3
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Loop option: No
Maximum Length (mm): 885
Minimum Length (mm): 690
Ram Stroke (mm): 195
Related products: 10287, 10288, 10289, 10292, 32255, 32947, 32950, 32951, 32977, 33004, 33010, 331341, 331342, 331343, 331344, 331345, 331346, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 56818, 148196, 148197
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label without knuckle & pin, Requires Threaded Rod (S.32947), Knuckle (S.56815 Ø20mm, S.10287 Ø25.4mm, S.10289 Ø28mm, S.10290 Ø30mm, S.10288 Ø32mm or S.56817 Ø36mm), or fixing pin (S.10292) and locking collar (S.32977). Or threaded ball end (S.32950 Ø25.4mm or S.32951 Ø32mm) and locking collar (S.32977)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 9240

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com
