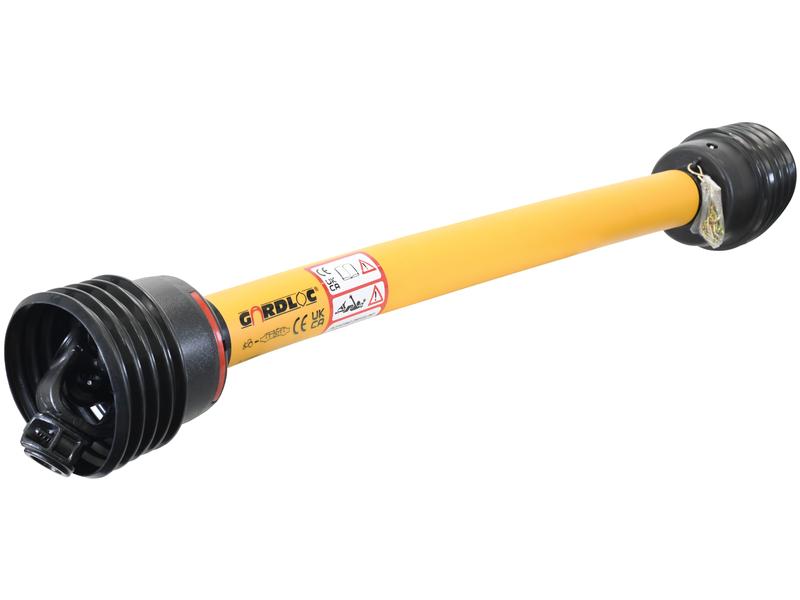

GARDLOC PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.128692

GARDLOC PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.128692

SKU:SP-S.128692

Precio habitual £279.60 GBP
Precio habitual £279.60 GBP Precio de oferta £279.60 GBP
Oferta Agotado
Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.

Bajas existencias: quedan 65

Cantidad
Default Title

GARDLOC PTO Shaft - (Lz) Length: 1210mm

Introducing the GARDLOC PTO Shaft, a reliable and high-performance solution for your agricultural needs. Designed for durability and efficiency, this shaft features a length of 1210mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release to a 1 3/8'' x 6 Spline Shear Bolt Limiter.

Key Specifications:

  • Brand: GARDLOC
  • Alternative to: 164296
  • Clutch Setting: 2100 Nm
  • Guard Type: Gardloc
  • HP Rating @ 540 RPM: 47 HP
  • HP Rating @ 1000 RPM: 75 HP
  • HP Rating Range @ 540 RPM: Up to 54 HP
  • Kilowatt Power Rating @ 540 RPM: 35 kW
  • Kilowatt Power Rating @ 1000 RPM: 55 kW
  • Torque: 335 - 1240 Nm
  • Total Closed Length: 1432 mm
  • Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 79.4 mm
  • Shearbolt Clutch Bolt Diameter: 10 mm
  • Shearbolt Clutch Radius: 46 mm
  • Italian Series: AB5/A5
  • PTO Series: AB5/A5
  • Replacement Guard: S.168313
  • Related Products: 166692
  • Tariff Code: 8483908990

Whether you're looking to replace an existing shaft or upgrade your equipment, the GARDLOC PTO Shaft is engineered to meet the demands of modern farming. Its robust construction ensures longevity and reliability, making it an essential addition to your machinery.

Product Supplier: Sparex

Product SKU: SP-128692

Note: This product is not associated with any particular OEM part number or specific make or model.

Additional Product Information

Product Specifications

Alternative to: 164296
Brand: GARDLOC
Clutch Setting Nm: 2100
Guard Type: Gardloc
HP Rating @ 540RPM: 47
HP Rating @ 1000RPM: 75
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
Italian Series: AB5/A5
Kilowatt Power Rating @ 540RPM: 35
Kilowatt Power Rating @ 1000RPM: 55
Lz Length (mm): 1210
PTO Series: AB5/A5
Related products: 166692
Replacement Guard: S.168313
Shearbolt Clutch Bolt Ø mm: 10
Shearbolt Clutch Radius mm: 46
Tariff Code: 8483908990
Torque (Nm): 620
Torque: 335 - 1240Nm
Total Closed Length (mm): 1432
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12510
Universal Joint Dimensions: 30.2 x 79.4mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Ver todos los detalles

GARDLOC PTO Shaft - 1210mm, 1 3/8" x 6 Spline, S.128692

- **GARDLOC PTO Shaft with 1210mm Length:** Durable and reliable for agricultural applications.
- **High HP Rating:** 47 HP @ 540 RPM and 75 HP @ 1000 RPM, suitable for demanding tasks.
- **Quick Release Tractor End:** 1 3/8'' x 6 Spline Q.R. for easy connection and disconnection.
- **Shear Bolt Limiter Implement End:** 1 3/8'' x 6 Spline Shear Bolt Limiter for overload protection.
- **Alternative to 164296:** A compatible replacement option for various agricultural equipment.
