Vendor: Sparex - SKU:

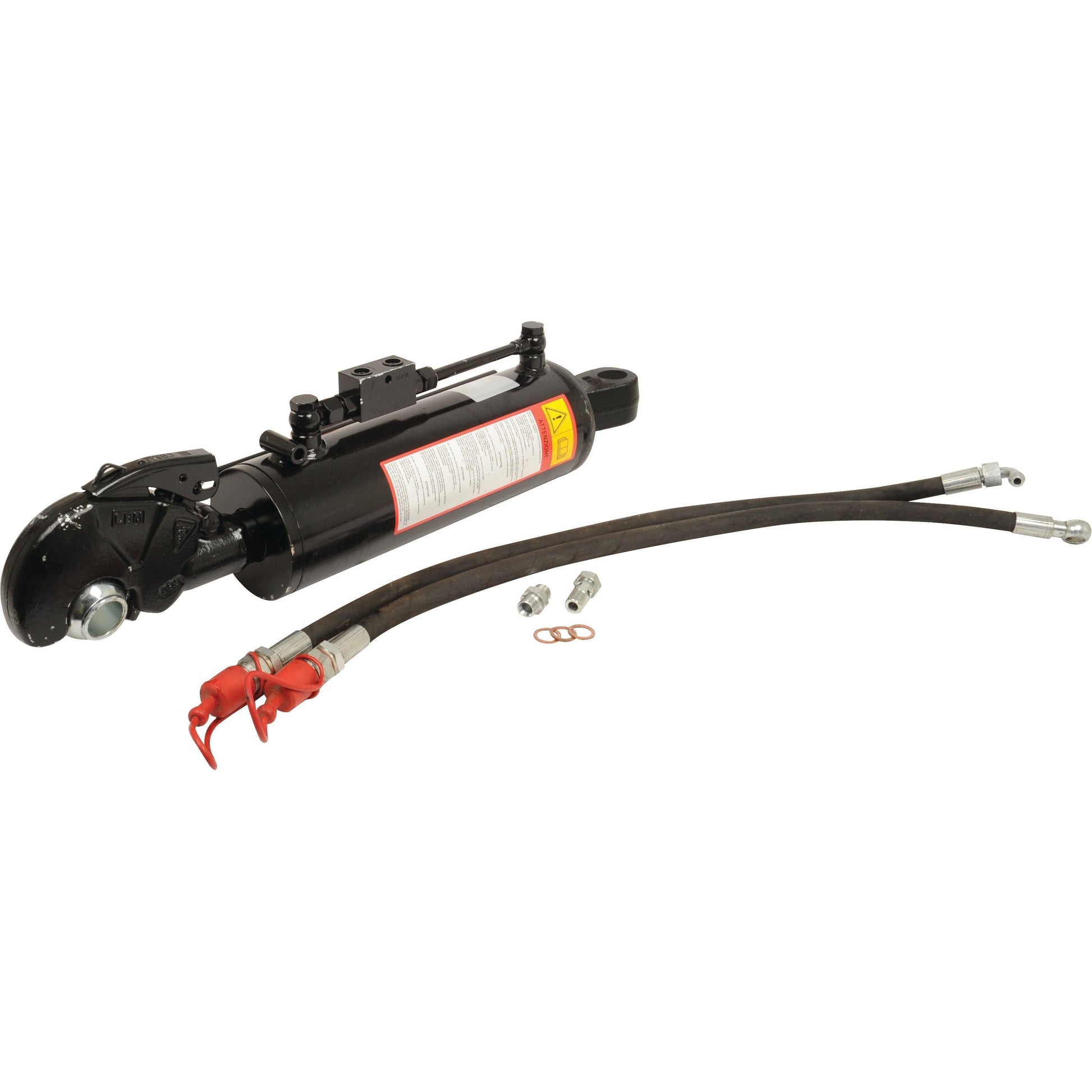

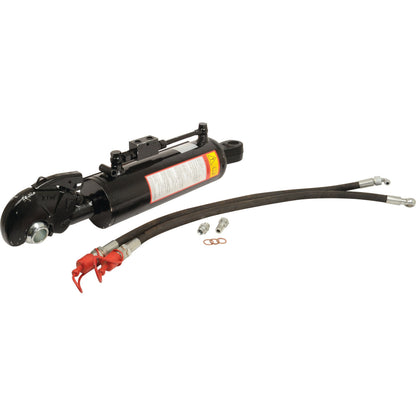

Hydraulic Top Link (Cat.-/3) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 505mm. | Sparex Part No.S.56799

Hydraulic Top Link (Cat.-/3) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 505mm. | Sparex Part No.S.56799

SKU:SP-S.56799

Prix habituel £646.80 GBP
Prix habituel £646.80 GBP Prix promotionnel £646.80 GBP
Promotion Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Stock bas : 19 restant(s)

Quantité
Default Title

Hydraulic Top Link (Cat.-/3) with Q.R CBM Hook - Sparex Part No. S.56799

Enhance your agricultural machinery with the Hydraulic Top Link from Sparex. Designed for optimal performance, this hydraulic linkage features a minimum length of 505mm and a maximum length of 645mm. It comes complete with a hose set, chain & ball, and a marker label (without knuckle & pin) for easy installation and use.

Product Specifications
  • Alternative to: 331541, 331542, 331543, 331544
  • Brand: Sparex
  • Category Implement End: 3
  • Check Valve Position: Top
  • Cylinder Bore: 80mm
  • Implement End: Q.R CBM Hook
  • Lift Capacity @ 180 bar: 6930 kg
  • Maximum Length: 645mm
  • Minimum Length: 505mm
  • Rod Diameter: 40mm
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied with: Hose set, chain & ball, marker label without knuckle & pin
  • Tariff Code: 8412212090
  • Thrust @ 180 bar: 9240 kg
Compatibility Information

This hydraulic top link is versatile and not associated with any specific make or model, making it an excellent choice for various applications.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad compatibility across different machinery.

Additional Product Information

Product Specifications

Alternative to: 331541, 331542, 331543, 331544
Brand: Sparex
Category Implement End: 3
Category: -/3
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 645
Minimum Length (mm): 505
Related products: 10287, 10288, 10289, 10290, 10292, 32255, 33004, 33010, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 56817, 148196, 148197
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label without knuckle & pin
Tariff Code: 8412212090
Thrust kgs @180 (bar): 9240

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Afficher tous les détails

Hydraulic Top Link with Q.R CBM Hook - Sparex S.56799

- **Heavy-duty hydraulic top link with a robust Q.R CBM hook for secure implement attachment.**
- **Powerful lift capacity of 6930 kg at 180 bar, ideal for demanding agricultural tasks.**
- **Adjustable length from 505mm to 645mm, providing flexibility for various tractor and implement combinations.**
- **Compatible with a wide range of tractors up to 180hp (135kW), ensuring versatility.**
- **Includes a comprehensive hose set, chain & ball, and marker label for easy installation and identification.**
