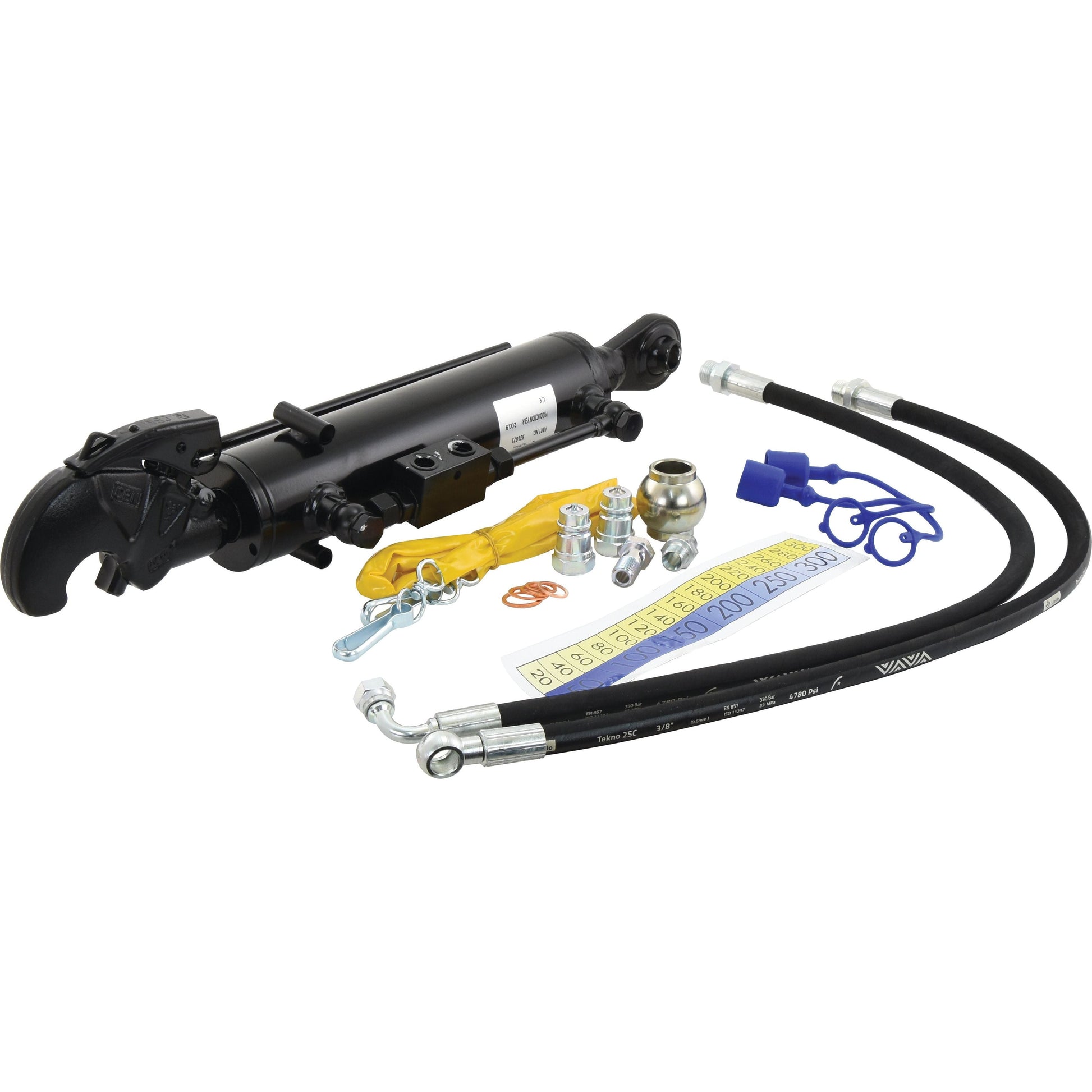

Hydraulic Top Link (Cat.1/2) Ball and Q.R CBM Hook, Cylinder Bore: 70mm, Min. Length : 550mm. | Sparex Part No.S.331071

Hydraulic Top Link (Cat.1/2) Ball and Q.R CBM Hook, Cylinder Bore: 70mm, Min. Length : 550mm. | Sparex Part No.S.331071

SKU:SP-S.331071

Prix habituel £420.00 GBP
Prix habituel £420.00 GBP Prix promotionnel £420.00 GBP
Promotion Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Stock bas : 12 restant(s)

Quantité
Default Title

Hydraulic Top Link (Cat.1/2) with Ball and Q.R CBM Hook - Sparex Part No. S.331071

Enhance your tractor's performance with the Hydraulic Top Link from Sparex, designed for durability and efficiency. This top link features a minimum length of 550mm and a maximum length of 760mm, making it versatile for various applications. It comes complete with a hose set, chain & ball, and a marker label equipped with a CBM Hook for easy installation and use.

Product Specifications
  • Alternative to: 331081
  • Brand: Sparex
  • Category Implement End: 2
  • Category Tractor End: 1
  • Category: 1/2
  • Check Valve Position: Side
  • Cylinder Bore: 70mm
  • Implement End: Q.R CBM Hook
  • Lift Capacity @ 180 bar: 5310 kg
  • Maximum Length: 760mm
  • Minimum Length: 550mm
  • Related Products: 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199, 164591
  • Rod Diameter: 35mm
  • Suitable for Tractors up to: 150hp (110kW)
  • Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
  • Tariff Code: 8412212090
  • Thrust @ 180 bar: 7080 kg
  • Tractor End Fixing: Ball End
  • Tractor End: Ball
Compatibility Information

This Hydraulic Top Link is compatible with a range of tractor models:

  • Ford / New Holland: TK100A, TK4.100, TK4.100M, TK4.110, TK4.110M, TK4.80F, TK4.80N, TK4.80V, TK4.90, TK4.90M, TK4020, TK4030, TK4030V, TK4040, TK4040M, TK4050, TK4050M, TK4060, TK80A, TK80MA, TK90A, TK90MA
  • Kubota: M6040 DTN-Q, M7040 DTN-Q, M8540 DTN-Q, M9540 DTN-Q
  • Landini: GLOBUS 50, GLOBUS 55, GLOBUS 60, GLOBUS 65, GLOBUS 70, GLOBUS 75, GLOBUS 80
Manufacturer Information

Part Number: Ford / New Holland 84402786

Additional Product Information

Product Specifications

Alternative to: 331081
Brand: Sparex
Category Implement End: 2
Category Tractor End: 1
Category: 1/2
Check Valve Position: Side
Cylinder Bore (mm): 70
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 5310
Maximum Length (mm): 760
Minimum Length (mm): 550
Related products: 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199, 164591
Rod Ø (mm): 35
Suitable for Tractors up to HP/Kw: 150hp (110kW)
Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 7080
Tractor End Fixing: Ball End
Tractor End: Ball

OEM Manufacture Information

Ford / New Holland
84402786

Suitable For Information

Ford / New Holland
TK100A, TK4.100, TK4.100M, TK4.110, TK4.110M, TK4.80F, TK4.80N, TK4.80V, TK4.90, TK4.90M, TK4020, TK4030, TK4030V, TK4040, TK4040M, TK4050, TK4050M, TK4060, TK80A, TK80MA, TK90A, TK90MA
Kubota
M6040 DTN-Q, M7040 DTN-Q, M8540 DTN-Q, M9540 DTN-Q
Landini
GLOBUS 50, GLOBUS 55, GLOBUS 60, GLOBUS 65, GLOBUS 70, GLOBUS 75, GLOBUS 80
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Afficher tous les détails

Hydraulic Top Link (Cat.1/2) - 70mm Bore, 550mm Min. Length

- **Heavy-duty Hydraulic Top Link:** Designed for durability and efficiency, suitable for tractors up to 150hp (110kW).
- **Versatile Length Adjustment:** Minimum length of 550mm and maximum length of 760mm for various applications.
- **Quick Release CBM Hook:** For easy attachment and detachment of implements.
- **High Lift Capacity:** 5310 kg lift capacity at 180 bar for powerful performance.
- **Wide Compatibility:** Fits a range of popular tractor models from Ford/New Holland, Kubota, and Landini.
