Hydraulic Top Link (Cat.36mm/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 640mm. | Sparex Part Number: S.331504

Hydraulic Top Link (Cat.36mm/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 640mm. | Sparex Part Number: S.331504

SKU:SP-S.331504

Prix habituel £562.80 GBP
Prix habituel £562.80 GBP Prix promotionnel £562.80 GBP
Promotion Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Stock bas : 3 restant(s)

Quantité
Default Title

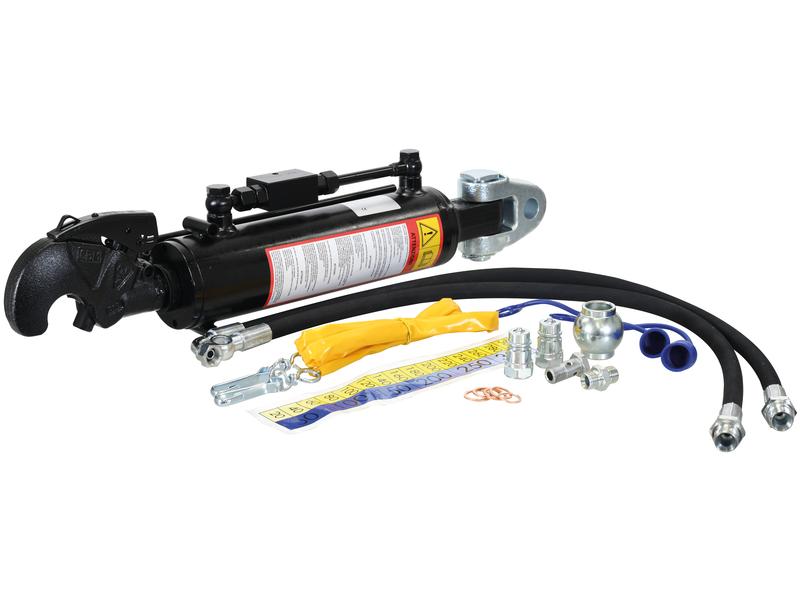

Hydraulic Top Link (Cat.36mm/2) - Knuckle and Q.R CBM Hook

Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This robust top link features a cylinder bore of 80mm and is suitable for tractors with a power output of up to 180hp (135kW).

Key Specifications:

  • Length: Minimum 640mm, Maximum 885mm
  • Lift Capacity: 6930 kg @ 180 bar
  • Thrust Capacity: 9240 kg @ 180 bar
  • Rod Diameter: 40mm
  • Check Valve Position: Top
  • Implement End: Q.R CBM Hook
  • Tractor End: Knuckle (Fixing: S.56817)
  • Alternative Part Number: 56812
  • Tariff Code: 8412212090

Included Components:

This hydraulic top link comes complete with:

  • Hose set
  • Chain & ball
  • Marker label with knuckle & pin

Related Products:

Explore additional compatible products: 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968, 56817.

Upgrade your tractor's performance with the Sparex Hydraulic Top Link (Part Number: S.331504) and experience enhanced lifting capabilities and durability in your agricultural tasks.

Additional Product Information

Product Specifications

A (mm): 152
Alternative to: 56812
Brand: Sparex
Category Implement End: 2
Category Tractor End: 36mm
Category: 36mm/2
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Maximum Length (mm): 885
Minimum Length (mm): 640
Related products: 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968, 56817
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code: 8412212090
Thrust kgs @180 (bar): 9240
Tractor End Fixing: S.56817
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
