Vendor: Sparex - SKU:

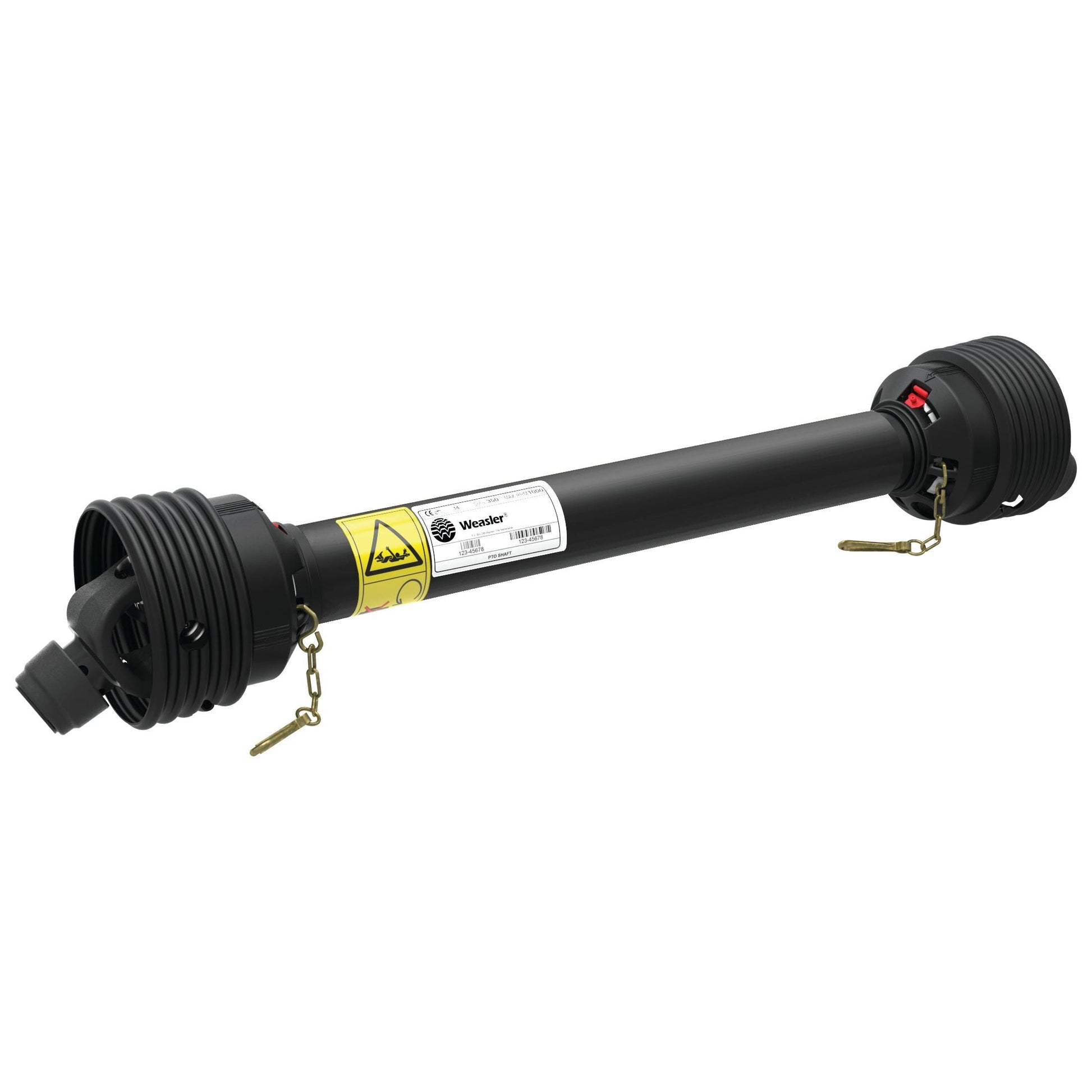

Weasler PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. - S.39007

Weasler PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. - S.39007

SKU:SP-S.39007

Prix habituel £219.24 GBP
Prix habituel £243.60 GBP Prix promotionnel £219.24 GBP
Promotion Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Stock bas : 6 restant(s)

Quantité
Default Title

Weasler PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. - S.39007

Introducing the Weasler PTO Shaft, designed for optimal performance and durability. This high-quality shaft is part of the renowned German Series AW20/W2200, ensuring reliability for your agricultural needs.

Key Features:

  • Brand: Weasler
  • German Series: AW20/W2200
  • Guard Type: Easylock
  • HP Rating @ 540RPM: 21 HP
  • HP Rating Range @ 540RPM: Up to 54 HP
  • Kilowatt Power Rating @ 540RPM: 16 kW

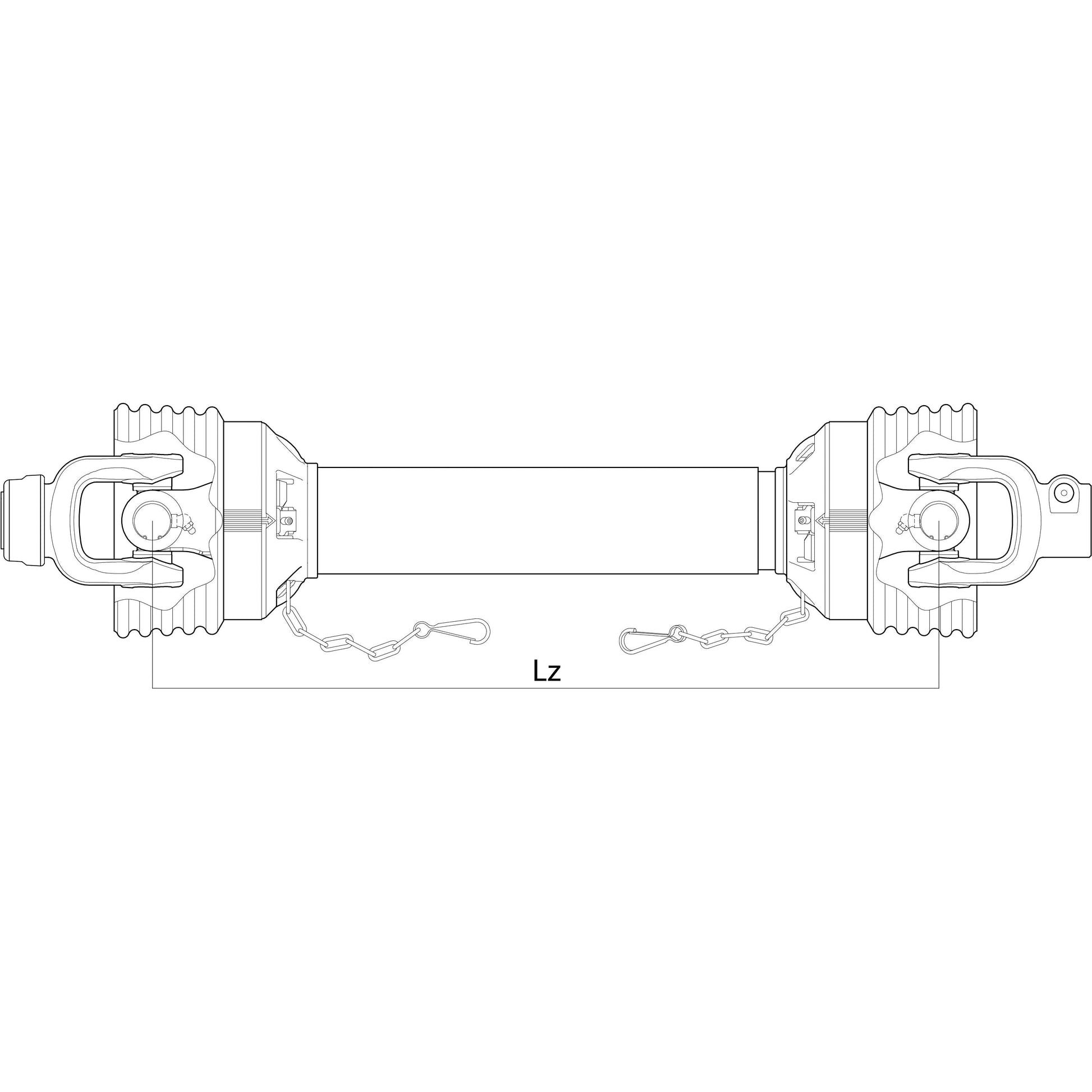

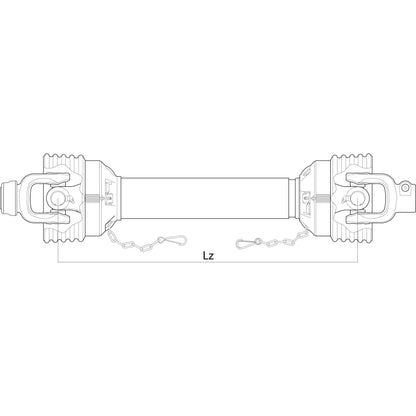

  • Lz Length: 1210 mm
  • PTO Series: AW20/W2200
  • Reference: 1600-7202-121
  • Tariff Code: 8483908990
  • Torque: 335 - 1240 Nm
  • Total Closed Length: 1410 mm
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Lemon
  • Universal Joint Dimensions: 23.8 x 61.2 mm

Compatibility:

This product is not associated with any particular make or model, making it a versatile choice for various applications.

Additional Information:

For reference, related products include: 24190, 24192, 4190, 4192, 59606, 59631, 6030, 6031, 6038, 6583, 72447, 115373, 115375, 115396, 118070.

Manufacturer Information:

OEM Fitment Information: Walterscheid 1113090

Additional Product Information

Product Specifications

Brand: Weasler
German Series: AW20/W2200
Guard Type: Easylock
HP Rating @ 540RPM: 21
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Kilowatt Power Rating @ 540RPM: 16
Lz Length (mm): 1210
PTO Series: AW20/W2200
Reference: 1600-7202-121
Related products: 24190,24192,4190,4192,59606,59631,6030,6031,6038,6583,72447,115373,115375,115396,118070
Tariff Code:8483908990
Torque (Nm): 470
Torque: 335 - 1240Nm
Total Closed Length (mm): 1410
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Lemon
Tube Ref: 0v/1
Universal Joint Dimensions: 23.8 x 61.2mm

OEM Manufacture Information

Walterscheid
1113090

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Afficher tous les détails

1210mm PTO Shaft, 1 3/8" x 6 Spline Q.R. - S.39007

- **High-Quality German Engineering:** Weasler PTO Shaft, part of the renowned AW20/W2200 series, ensures reliability and durability.
- **Versatile Compatibility:** Not associated with any specific make or model, making it suitable for various agricultural applications.
- **Powerful Performance:** Rated for up to 54 HP @ 540 RPM, providing ample power for demanding tasks.
- **Easylock Guard:** Ensures safety and convenience with its user-friendly design.
- **Durable Construction:** Features a Lemon tube profile and robust universal joints for long-lasting performance.
