Vendor: Sparex - SKU:

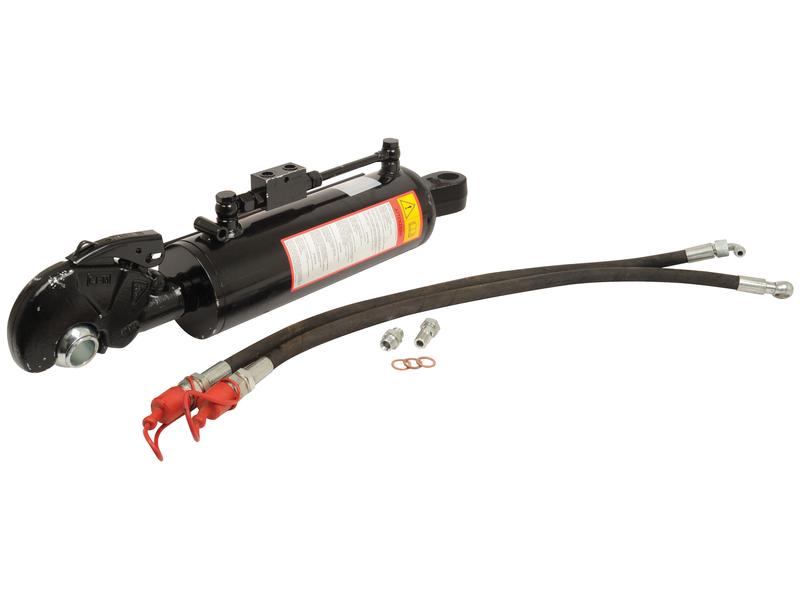

Sparex | Hydraulic Top Link (Cat.-/2) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 620mm.

Sparex | Hydraulic Top Link (Cat.-/2) and Q.R CBM Hook, Cylinder Bore: 80mm, Min. Length : 620mm.

SKU:SP-S.56797

Prix habituel £401.41 GBP
Prix habituel £446.02 GBP Prix promotionnel £401.41 GBP
Promotion Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Stock bas : 2 restant(s)

Quantité
Default Title

Introducing the Sparex Hydraulic Top Link, designed for optimal performance in agricultural applications. With a minimum length of 620mm and a maximum length of 905mm, this top link is versatile and adaptable to various implements. It comes complete with a hose set, chain & ball, and a marker label (without knuckle & pin). Please note that it requires a knuckle (options include S.56815 Ø20mm, S.10287 Ø25.4mm, S.10289 Ø28mm, S.10290 Ø30mm, S.10288 Ø32mm, or S.56817 Ø36mm) and a fixing pin (S.10292) for installation.

Product Specifications
  • A (mm): 120
  • Brand: Sparex
  • Category Implement End: 2
  • Category: -/2
  • Check Valve Position: Top
  • Cylinder Bore (mm): 80
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 6930
  • Loop Option: 40
  • Maximum Length (mm): 905
  • Minimum Length (mm): 620
  • Ram Stroke (mm): 285
  • Related Products: 10287, 10288, 10289, 10290, 10292, 32255, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56815, 56817, 148199
  • Rod Diameter (mm): 40
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied With: Hose set, chain & ball, marker label without knuckle & pin. Requires knuckle and fixing pin.
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 9240
Suitable For Information

This product is not associated with any particular make or model.

Manufacture Information

This product is not associated with any particular OEM part number.

Additional Product Information

Product Specifications

A (mm): 120
Brand: Sparex
Category Implement End: 2
Category: -/2
Check Valve Position: Top
Cylinder Bore (mm): 80
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 6930
Loop option: 40
Maximum Length (mm): 905
Minimum Length (mm): 620
Ram Stroke (mm): 285
Related products: 10287, 10288, 10289, 10290, 10292, 32255, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56815, 56817, 148199
Rod Ø (mm): 40
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label without knuckle & pin, Requires Knuckle (S.56815 Ø20mm, S.10287 Ø25.4mm, S.10289 Ø28mm, S.10290 Ø30mm, S.10288 Ø32mm or S.56817 Ø36mm) and fixing pin (S.10292)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 9240

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com
