Vendor: Sparex - SKU:

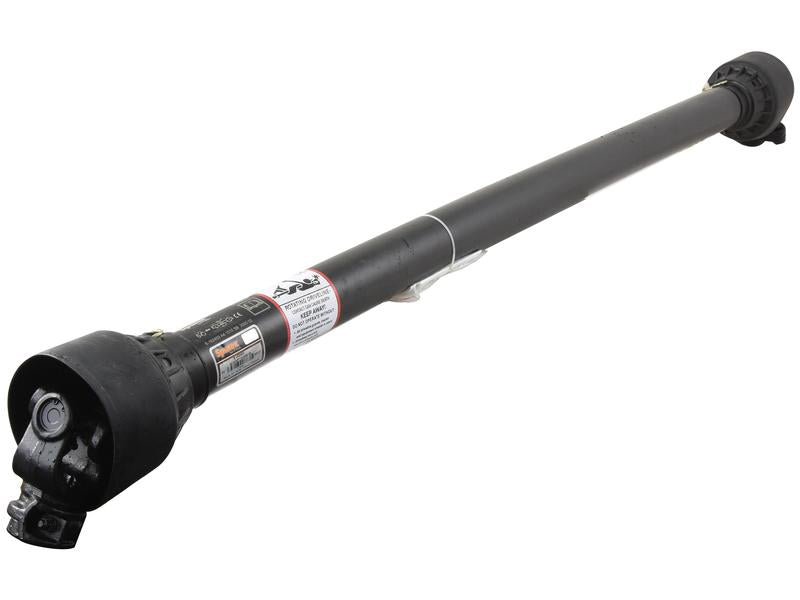

Sparex PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.164311

Sparex PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter | Sparex Part Number: S.164311

SKU:SP-S.164311

Prix habituel £368.40 GBP
Prix habituel £368.40 GBP Prix promotionnel £368.40 GBP
Promotion Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Stock bas : 55 restant(s)

Quantité
Default Title

Sparex PTO Shaft - (Lz) Length: 1510mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1510mm and connects with a 1 3/8'' x 6 Spline Q.R. at the tractor end and a 1 3/8'' x 6 Spline Shear Bolt Limiter at the implement end.

Key Specifications:

  • Brand: Sparex
  • Alternative to: 110579
  • Clutch Setting: 2700 Nm
  • HP Rating @ 540RPM: 95 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Kilowatt Power Rating @ 540RPM: 70 kW
  • Torque: 335 - 1240 Nm
  • Total Closed Length: 1782 mm
  • Shearbolt Clutch Bolt Diameter: 10 mm
  • Shearbolt Clutch Radius: 60 mm
  • Universal Joint Dimensions: 35 x 106.5 mm
  • Tube Profile: Triangle
  • Tube Reference: 12512/12522
  • Italian Series: AB8N/A8N
  • PTO Series: AB8N/A8N
  • Related Products: 166692, 166693
  • Tariff Code: 8483908990

This PTO shaft is engineered to meet the demands of various agricultural applications, ensuring reliable performance and compatibility. Whether you're replacing an old shaft or upgrading your equipment, the Sparex PTO Shaft is the perfect choice for your needs.

Product SKU: SP-164311

Supplier: Sparex

Note: This product is not associated with any particular OEM part number or specific make or model.

Additional Product Information

Product Specifications

Alternative to: 110579
Brand: Sparex
Clutch Setting Nm: 2700
HP Rating @ 540RPM: 95
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
Italian Series: AB8N/A8N
Kilowatt Power Rating @ 540RPM: 70
Lz Length (mm): 1510
PTO Series: AB8N/A8N
Related products: 166692, 166693
Shearbolt Clutch Bolt Ø mm: 10
Shearbolt Clutch Radius mm: 60
Tariff Code: 8483908990
Torque (Nm): 1240
Torque: 335 - 1240Nm
Total Closed Length (mm): 1782
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12512/12522
Universal Joint Dimensions: 35 x 106.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com
