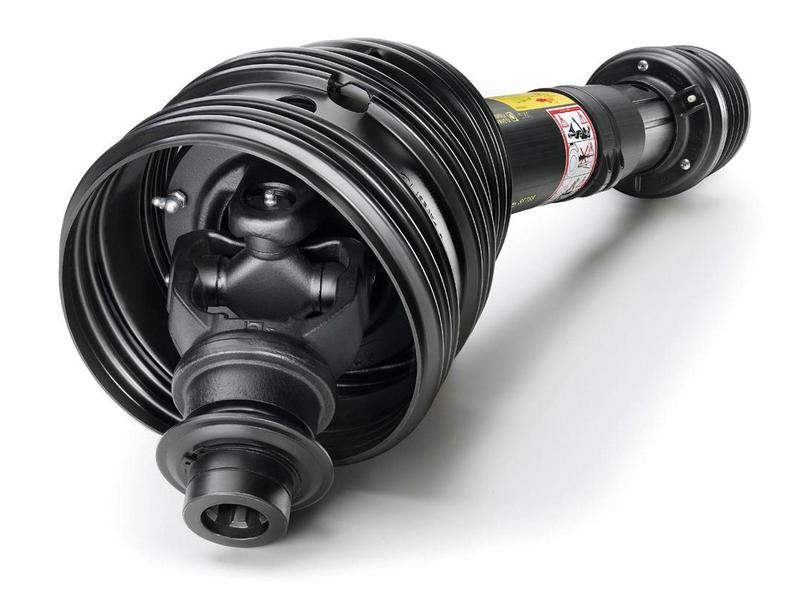

Bondioli & Pavesi PTO Shaft - Wide Angle - Length: 1210mm, 1 3/8'' | Sparex Part Number: S.165148

Bondioli & Pavesi PTO Shaft - Wide Angle - Length: 1210mm, 1 3/8'' | Sparex Part Number: S.165148

SKU:SP-S.165148

Cena regularna £1,502.16 GBP
Cena regularna £1,502.16 GBP Cena promocyjna £1,502.16 GBP
W promocji Wyprzedane
Z wliczonymi podatkami. Koszt wysyłki obliczony przy realizacji zakupu.
Ilość
Default Title

Bondioli & Pavesi PTO Shaft - Wide Angle - Length: 1210mm, 1 3/8'' | Sparex Part Number: S.165148

Introducing the Bondioli & Pavesi PTO Shaft, a high-performance solution designed for agricultural and industrial applications. This PTO shaft features a robust construction and is engineered to deliver exceptional power and torque, making it an essential component for your machinery.

Product Specifications

  • Brand: Bondioli & Pavesi
  • Guard Type: SFT
  • HP Rating @ 540RPM: 90 HP
  • HP Rating @ 1000RPM: 136 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: SFT S8-80°
  • Kilowatt Power Rating @ 540RPM: 66 kW
  • Kilowatt Power Rating @ 1000RPM: 100 kW
  • Length (mm): 1210
  • PTO Series: SFT S8-80°
  • Reference: CS8R121CEWS7007
  • Tariff Code: 8483908990
  • Torque (Nm): 1171
  • Torque Range: 335 - 1240 Nm
  • Tractor End: 1 3/8'' x 6 Spline 80° W.A.
  • Tube Profile: Square
  • Tube Reference: 2454D/12225
  • Universal Joint Dimensions: 30.2 x 106 mm

Compatibility

This PTO shaft is designed for universal fitment and is not associated with any specific make or model, making it a versatile choice for various applications.

Related Products

Explore our range of related products for enhanced performance:

  • 24216
  • 165075
  • 165082
  • 165083
  • 165088
  • 165106
  • 165107
  • 165124
  • 165134
  • 165171
  • 165174
  • 166076

Upgrade your machinery with the Bondioli & Pavesi PTO Shaft today and experience the difference in performance and reliability!

Additional Product Information

Product Specifications

Brand: Bondioli & Pavesi
Guard Type: SFT
HP Rating @ 540RPM: 90
HP Rating @ 1000RPM: 136
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: SFT S8-80°
Kilowatt Power Rating @ 540RPM: 66
Kilowatt Power Rating @ 1000RPM: 100
Lz Length (mm): 1210
PTO Series: SFT S8-80°
Reference: CS8R121CEWS7007
Related products: 24216, 165075, 165082, 165083, 165088, 165106, 165107, 165124, 165134, 165171, 165174, 166076
Tariff Code: 8483908990
Torque (Nm): 1171
Torque: 335 - 1240Nm
Tractor End: 1 3/8'' x 6 Spline 80° W.A.
Tube Profile: Square
Tube Ref: 2454D/12225
Universal Joint Dimensions: 30.2 x 106mm

OEM Manufacture Information

Bondioli & Pavesi
CS8R121CEWS7007

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Pokaż kompletne dane

Bondioli & Pavesi PTO Shaft - 1210mm, 1 3/8" - S.165148

- **High-Performance Bondioli & Pavesi PTO Shaft:** Engineered for exceptional power and torque in agricultural and industrial applications.
- **Wide Angle Design:** Features a 80° wide angle for increased flexibility and compatibility.
- **Robust Construction:** Built with durable materials for long-lasting performance and reliability.
- **Universal Fitment:** Compatible with various makes and models, making it a versatile choice.
- **High HP Rating:** Offers a powerful 90 HP rating at 540 RPM and 136 HP at 1000 RPM.
