Vendor: Sparex - SKU:

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 50mm, Min. Length : 480mm. | Sparex Part No.S.399261

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 50mm, Min. Length : 480mm. | Sparex Part No.S.399261

SKU:SP-S.399261

Regular price £310.20 GBP
Regular price £310.20 GBP Sale price £310.20 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 23 left

Quantity
Default Title

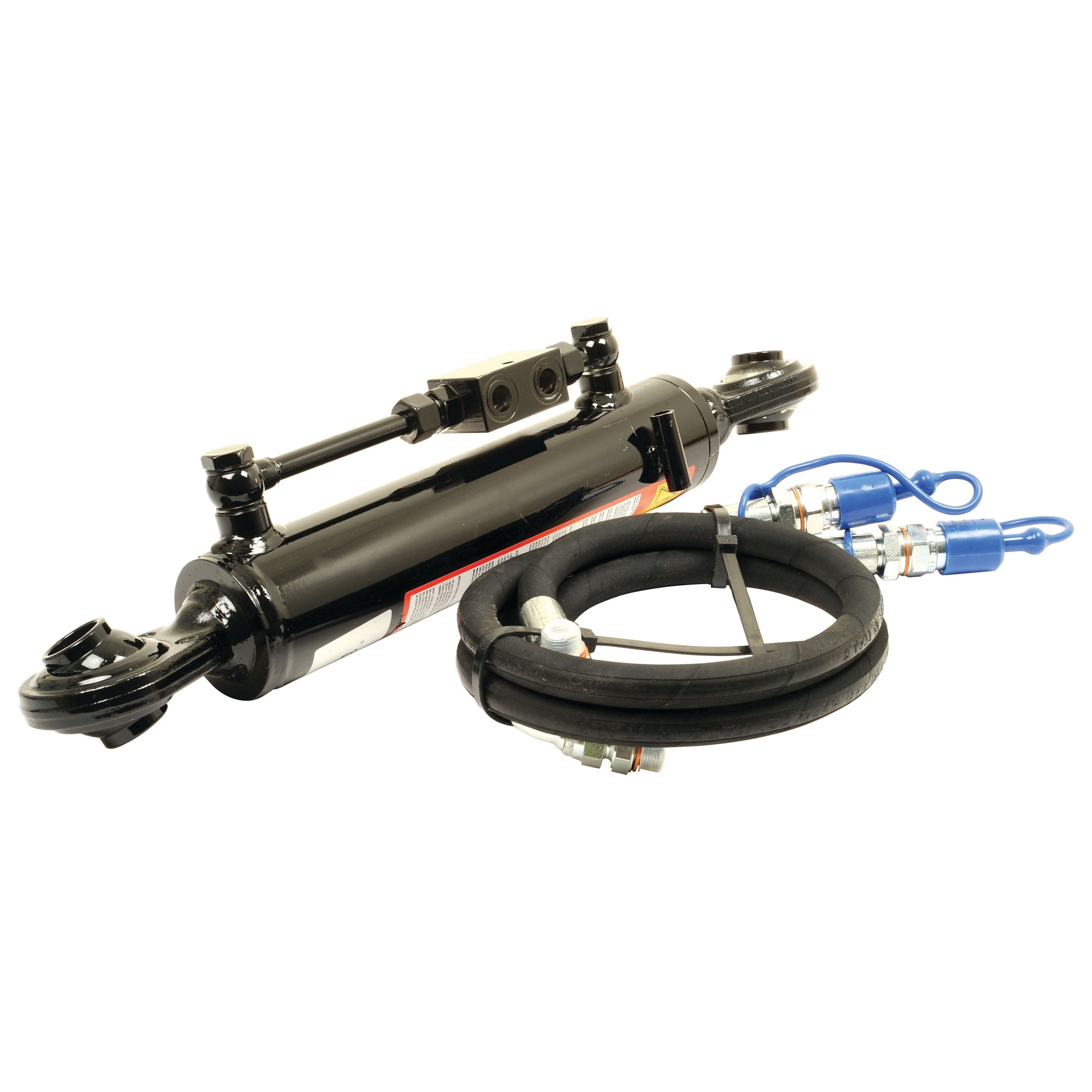

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 50mm | Sparex Part No. S.399261

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 480mm and a maximum length of 690mm. It comes complete with a Hose Set for easy installation and use.

Product Specifications
  • A (mm): 65
  • Brand: Sparex
  • Category Implement End: 2
  • Category Tractor End: 2
  • Category: 2/2
  • Check Valve Position: Top
  • Cylinder Bore (mm): 50
  • Implement End: Ball
  • Lift Capacity (kgs @ 180 bar): 2300
  • Maximum Length (mm): 690
  • Minimum Length (mm): 480
  • Related Products: 32251, 33137, 33144, 33158, 39965, 39966, 39967, 39968
  • Rod Diameter (mm): 30
  • Suitable for Tractors up to: 60hp (45kW)
  • Supplied with: Hose Set
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 3600
  • Tractor End Fixing: Fixed
  • Tractor End: Ball
Suitable For

This hydraulic top link is compatible with McCormick models: T100F, T70F, and T90F.

Manufacturer Information

Please note that this product is not associated with any specific OEM part number, ensuring versatility and compatibility across various applications.

Additional Product Information

Product Specifications

A (mm): 65
Brand: Sparex
Category Implement End: 2
Category Tractor End: 2
Category: 2/2
Check Valve Position: Top
Cylinder Bore (mm): 50
Implement End: Ball
Lift kgs @180 bar: 2300
Maximum Length (mm): 690
Minimum Length (mm): 480
Related products: 32251,33137,33144,33158,39965,39966,39967,39968
Rod Ø (mm): 30
Suitable for Tractors up to HP/Kw: 60hp (45kW)
Supplied with: Hose Set
Tariff Code:8412212090
Thrust kgs @180 (bar): 3600
Tractor End Fixing: Fixed
Tractor End: Ball

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

McCormick
T100F, T70F, T90F
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Hydraulic Top Link (Cat.2/2) - 50mm Bore, 480mm Min. Length

- **Heavy-duty hydraulic top link for tractors up to 60hp (45kW)**
- **Category 2/2 ball and ball design for universal compatibility**
- **50mm cylinder bore for powerful lifting capacity (2300kg @ 180 bar)**
- **Adjustable length from 480mm to 690mm for optimal implement positioning**
- **Includes a hose set for easy installation and use**
