GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch | Sparex Part Number: S.128703

GARDLOC PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch | Sparex Part Number: S.128703

SKU:SP-S.128703

Precio habitual €506,95 EUR
Precio habitual Precio de oferta €506,95 EUR
Oferta Agotado
Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.
Cantidad
Default Title

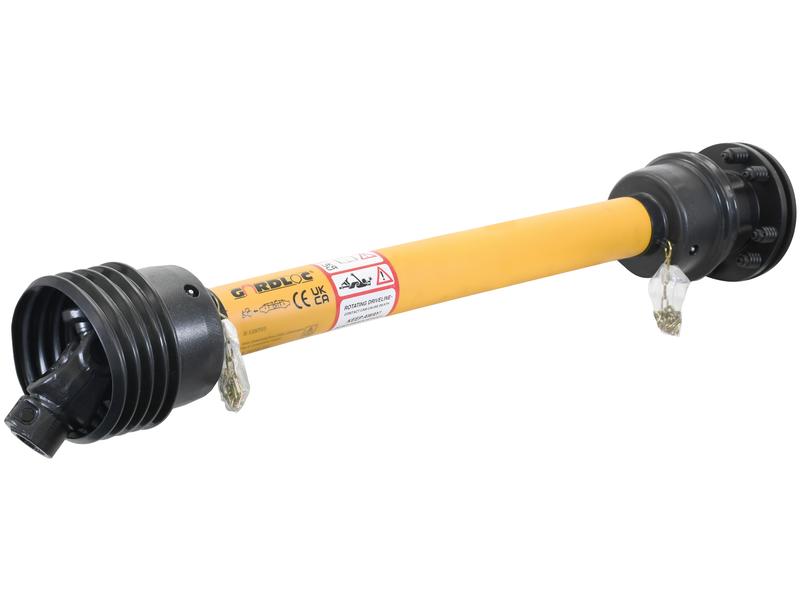

GARDLOC PTO Shaft - (Lz) Length: 1010mm

Introducing the GARDLOC PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Friction Disc Clutch.

Key Features:

  • Alternative to: 164306
  • Brand: GARDLOC
  • Clutch Setting: 1300 Nm
  • Guard Type: Gardloc
  • HP Rating @ 540 RPM: 64 HP
  • HP Rating @ 1000 RPM: 83 HP
  • HP Rating Range @ 540 RPM: 55 to 119 HP
  • Implement End: 1 3/8'' x 6 Spline Friction Disc Clutch
  • Italian Series: AB6/A6
  • Kilowatt Power Rating @ 540 RPM: 47 kW
  • Kilowatt Power Rating @ 1000 RPM: 61 kW
  • Number of Discs: 2
  • PTO Series: AB6/A6
  • Torque: 335 - 1240 Nm
  • Total Closed Length: 1288 mm
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 30.2 x 92 mm
  • Replacement Guard: S.168312
  • Tariff Code: 8483908990

This GARDLOC PTO Shaft is an excellent choice for those seeking reliability and efficiency in their agricultural machinery. With a robust torque rating of 830 Nm and a total closed length of 1288 mm, it is engineered to meet the demands of various applications.

For additional compatibility, please note that this product is not associated with any particular OEM part number or specific make or model.

Upgrade your equipment with the GARDLOC PTO Shaft today and experience enhanced performance!

Additional Product Information

Product Specifications

Alternative to: 164306
Brand: GARDLOC
Clutch Setting Nm: 1300
Guard Type: Gardloc
HP Rating @ 540RPM: 64
HP Rating @ 1000RPM: 83
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Friction Disc Clutch
Italian Series: AB6/A6
Kilowatt Power Rating @ 540RPM: 47
Kilowatt Power Rating @ 1000RPM: 61
Lz Length (mm): 1010
Number of Discs: 2
PTO Series: AB6/A6
Related products: 166692
Replacement Guard: S.168312
Tariff Code: 8483908990
Torque (Nm): 830
Torque: 335 - 1240Nm
Total Closed Length (mm): 1288
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12509/12512
Universal Joint Dimensions: 30.2 x 92mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Ver todos los detalles

GARDLOC PTO Shaft - 1010mm, 1 3/8" x 6 Spline | S.128703

- **High-Performance GARDLOC PTO Shaft:** Engineered for durability and optimal performance.
- **1010mm Length:** Provides flexibility for various applications.
- **1 3/8'' x 6 Spline Quick Release (Q.R.) to 1 3/8'' x 6 Spline Friction Disc Clutch:** Ensures seamless connection and reliable power transfer.
- **Robust Torque Rating:** 830 Nm for demanding agricultural tasks.
- **Alternative to 164306:** Offers a compatible replacement option.
