PTO Shaft - (Lz) Length: 838mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch - S.151774

PTO Shaft - (Lz) Length: 838mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch - S.151774

SKU:SP-S.151774

Prix habituel €227,95 EUR
Prix habituel Prix promotionnel €227,95 EUR
Promotion Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

Stock bas : 70 restant(s)

Quantité
Default Title

PTO Shaft - (Lz) Length: 838mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch - S.151774

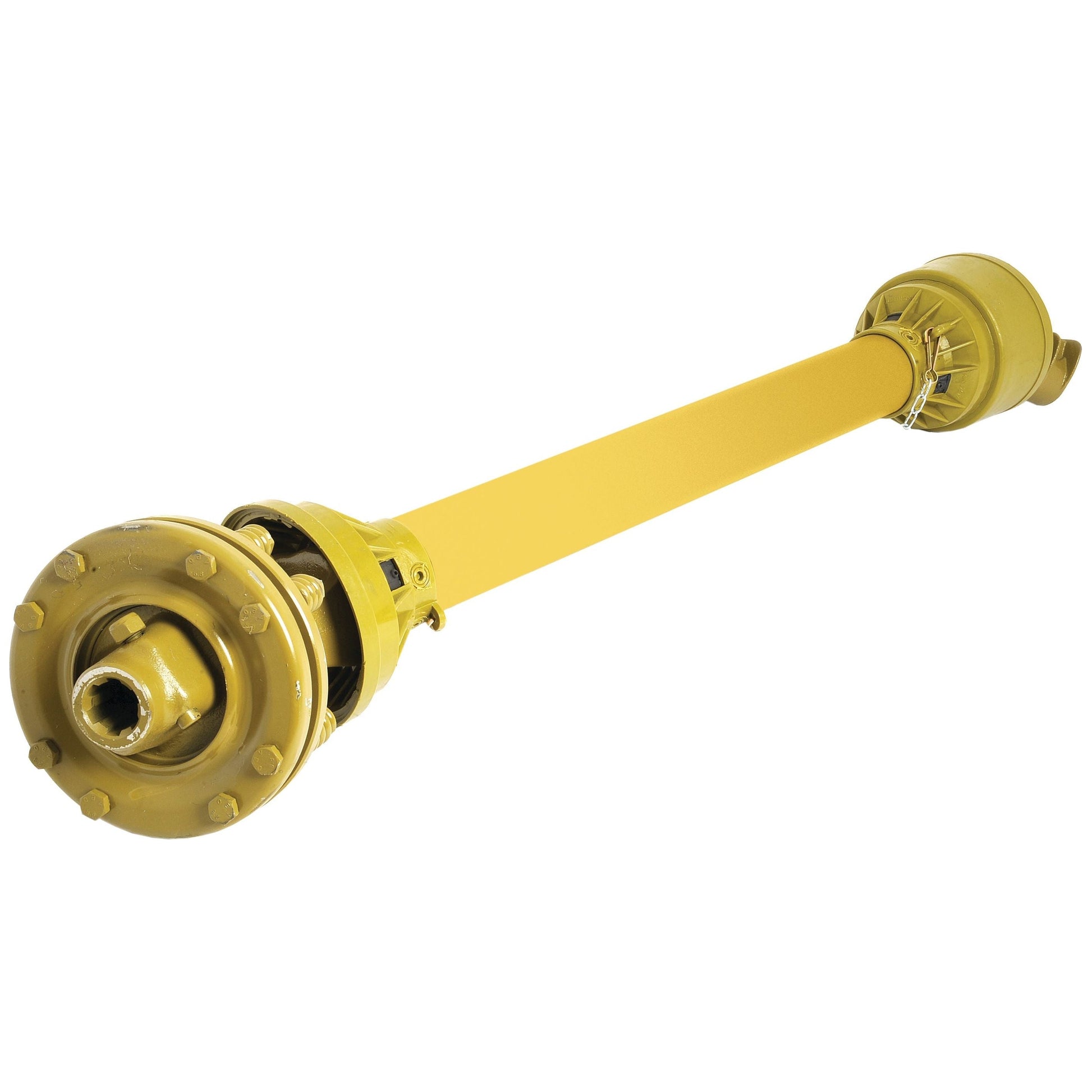

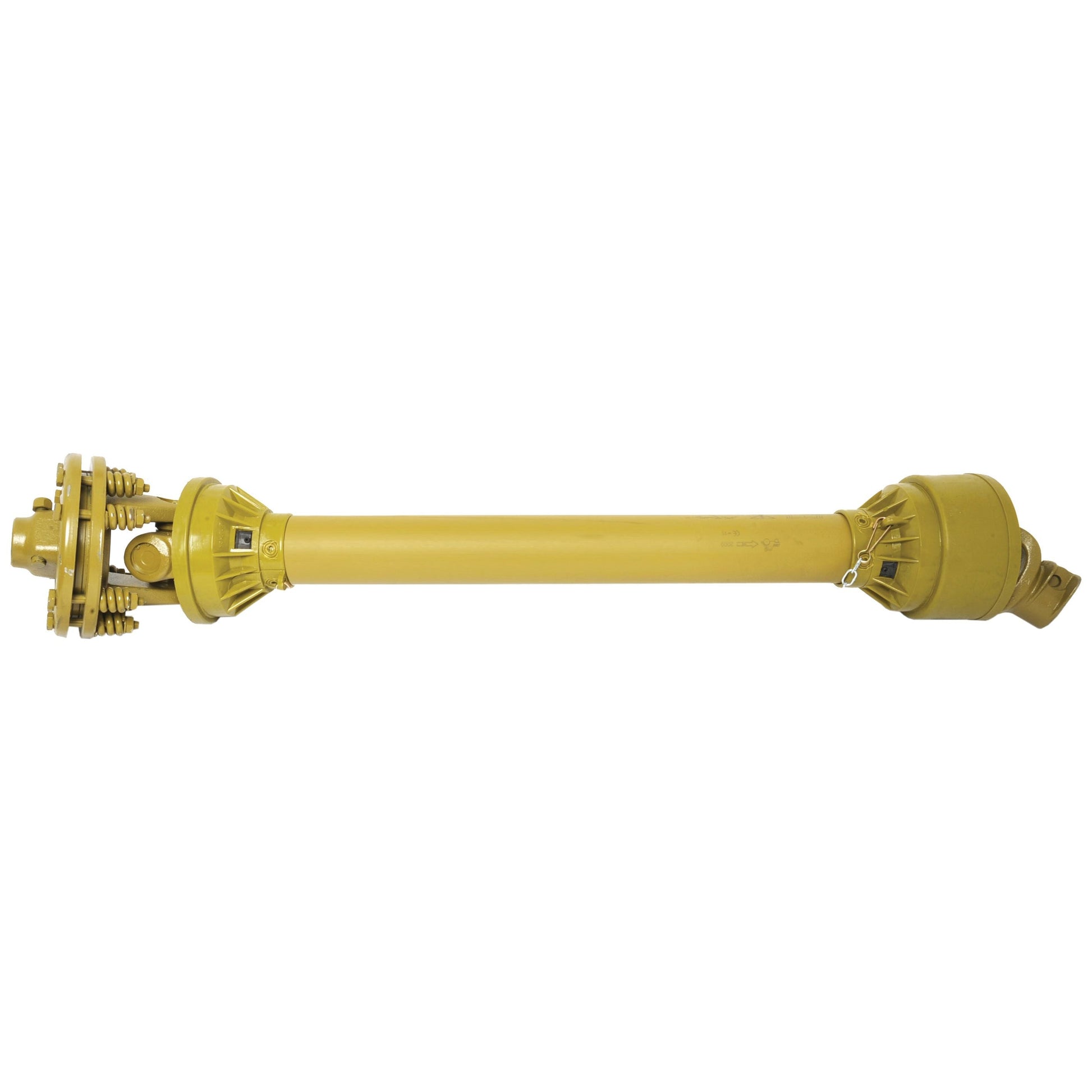

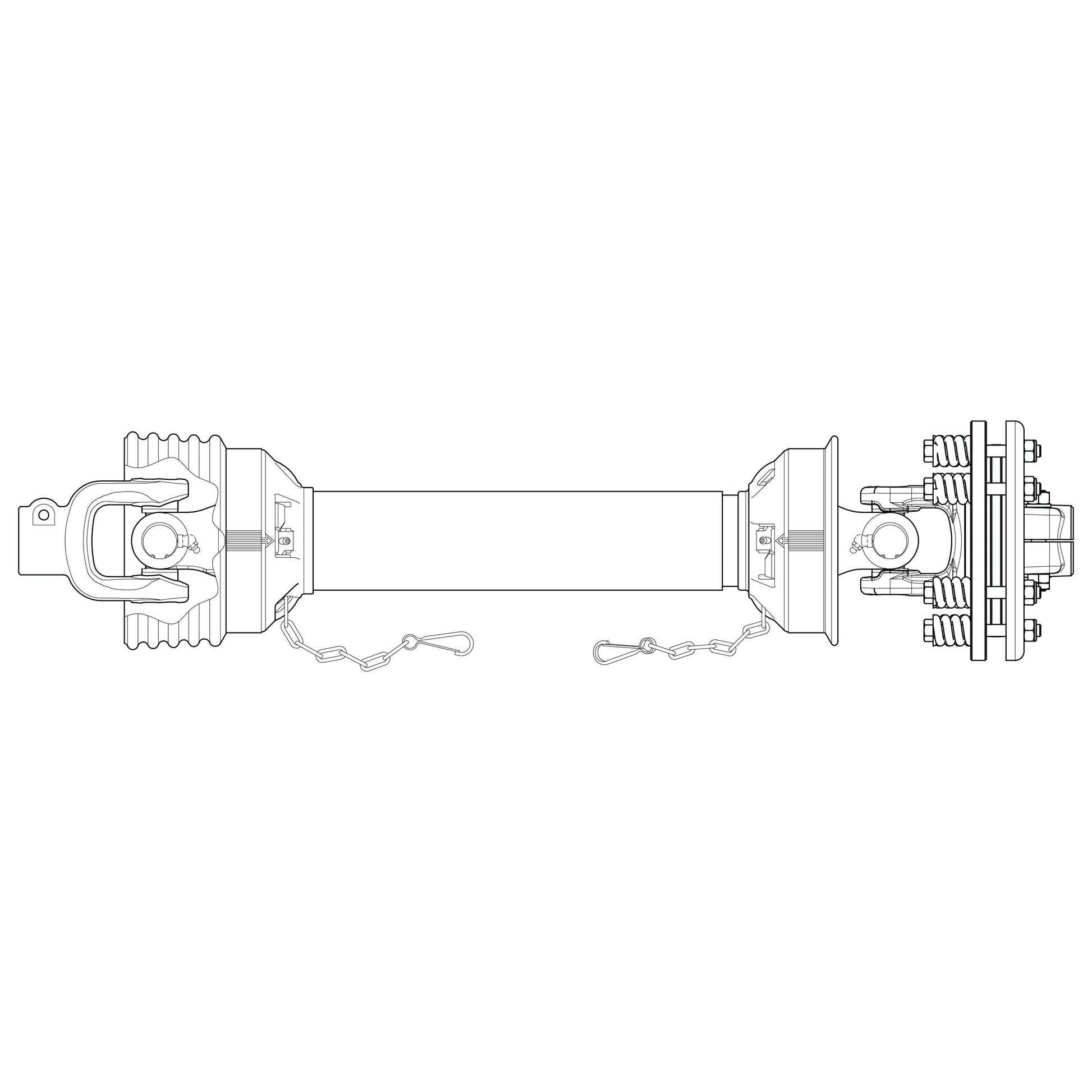

This Sparex PTO shaft is designed for tractors and implements with an AB4/A4 Italian series PTO. It features a 1 3/8'' x 6 spline quick release (Q.R.) on the tractor end and a 1 3/8'' x 6 spline friction disc clutch on the implement end. With a length of 838mm, this shaft is suitable for a wide range of applications.

Key Features:

  • Brand: Sparex
  • HP Rating @ 540RPM: 35HP
  • HP Rating Range @ 540RPM: Up to 54HP
  • Kilowatt Power Rating @ 540RPM: 26kW
  • Torque: 335 - 1240Nm
  • Torque (Nm): 780
  • Clutch Setting Nm: 1000
  • Lz Length (mm): 838
  • Total Closed Length (mm): 1100
  • Tube Profile: Triangle
  • Tube Ref: 12507/12508
  • Universal Joint Dimensions: 27 x 74.5mm
  • PTO Series: AB4/A4
  • Italian Series: AB4/A4
  • Tariff Code: 8483908990

Important Notes:

  • This product is not associated with any particular make or model of tractor or implement.
  • This product is not associated with any particular OEM part number.

Additional Product Information

Product Specifications

Brand: Sparex
Clutch Setting Nm: 1000
erp_hazardous: No
HP Rating @ 540RPM: 35
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Friction Disc Clutch
Italian Series: AB4/A4
Kilowatt Power Rating @ 540RPM: 26
Lz Length (mm): 838
PTO Series: AB4/A4
Tariff Code:8483908990
Torque (Nm): 780
Torque: 335 - 1240Nm
Total Closed Length (mm): 1100
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Afficher tous les détails

838mm PTO Shaft, 1 3/8" x 6 Spline, Q.R. to Friction Clutch - S.151774

- **High-Performance PTO Shaft:** Designed for tractors and implements with an AB4/A4 Italian series PTO, delivering reliable power transfer.
- **Versatile Length:** 838mm length accommodates a wide range of applications, ensuring compatibility with various tractor and implement combinations.
- **Durable Construction:** Features a robust triangle tube profile (Tube Ref: 12507/12508) for long-lasting performance.
- **Powerful Torque:** Delivers a torque range of 335 - 1240Nm, ensuring efficient power transmission for demanding tasks.
- **Friction Disc Clutch:** Equipped with a 1 3/8'' x 6 spline friction disc clutch on the implement end for smooth and controlled engagement.
