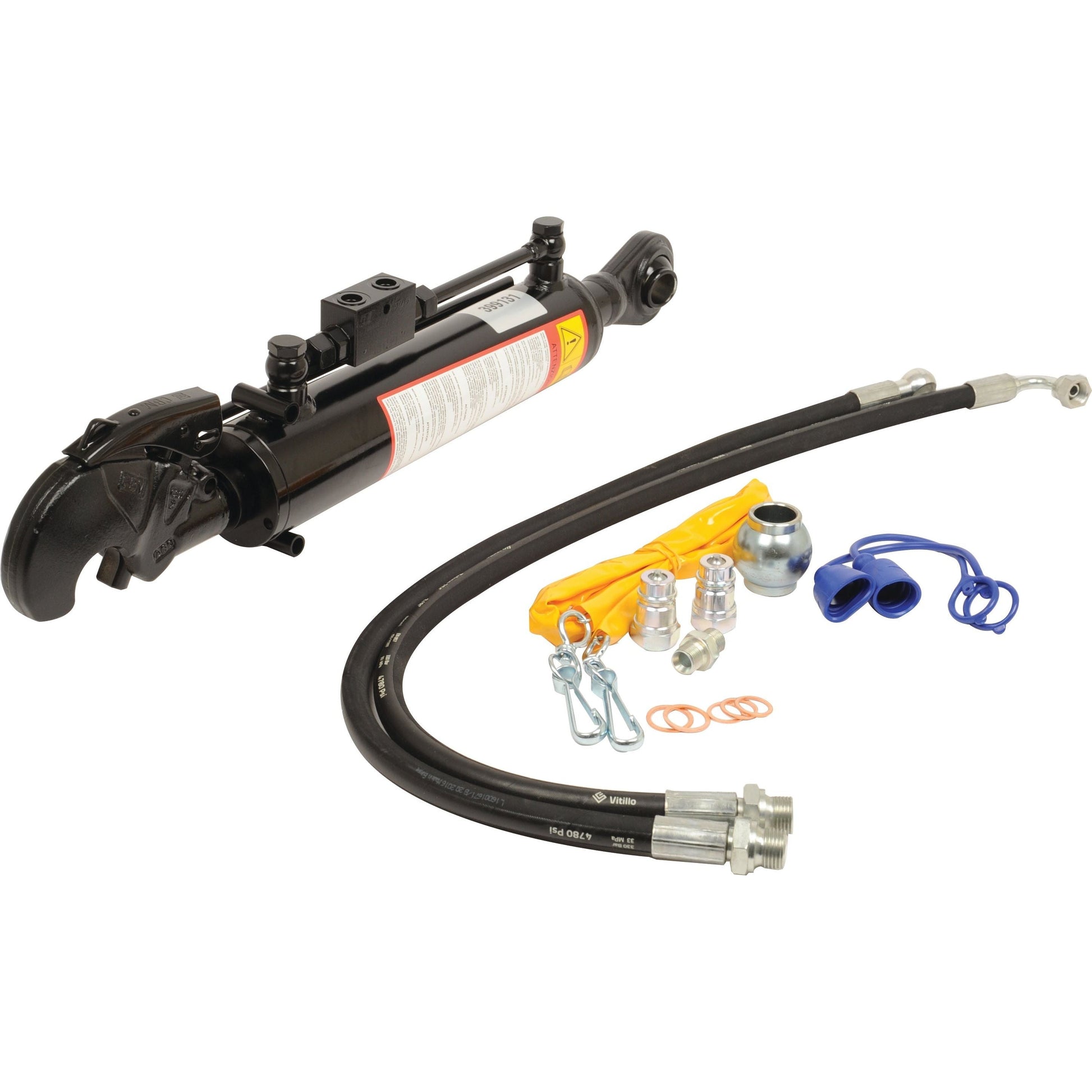

Hydraulic Top Link (Cat.2/2) Ball and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 535mm. | Sparex Part No.S.331291

Hydraulic Top Link (Cat.2/2) Ball and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 535mm. | Sparex Part No.S.331291

SKU:SP-S.331291

Prezzo di listino £427.68 GBP
Prezzo di listino £427.68 GBP Prezzo scontato £427.68 GBP
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

Scorte ridotte: ne restano 23

Quantità
Default Title

Introducing the Hydraulic Top Link (Cat.2/2) with a robust Cylinder Bore of 63mm. This versatile top link features a minimum length of 535mm and a maximum length of 724mm, making it ideal for various applications. Each unit is supplied with a comprehensive hose set, chain & ball, and a marker label equipped with a Q.R CBM Hook.

Product Specifications
  • A (mm): 100
  • Brand: Sparex
  • Category Implement End: 2
  • Category Tractor End: 2
  • Category: 2/2
  • Check Valve Position: Top
  • Cylinder Bore (mm): 63
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 3960
  • Maximum Length (mm): 724
  • Minimum Length (mm): 535
  • Related Products: 32253, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
  • Rod Diameter (mm): 35
  • Suitable for Tractors up to: 100hp (74kW)
  • Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 5730
  • Tractor End Fixing: Ball End
  • Tractor End: Ball
Suitable For

This hydraulic top link is compatible with McCormick models: V60, V65, V70, V75, V80, V85, V90.

Manufacture Information

Please note that this product is not associated with any specific OEM part number.

Additional Product Information

Product Specifications

A (mm): 100
Brand: Sparex
Category Implement End: 2
Category Tractor End: 2
Category: 2/2
Check Valve Position: Top
Cylinder Bore (mm): 63
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 3960
Maximum Length (mm): 724
Minimum Length (mm): 535
Related products: 32253, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
Rod Ø (mm): 35
Suitable for Tractors up to HP/Kw: 100hp (74kW)
Supplied with: Hose set, chain & ball, marker label (with CBM Hook)
Tariff Code: 8412212090
Thrust kgs @180 (bar): 5730
Tractor End Fixing: Ball End
Tractor End: Ball

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

McCormick
V60, V65, V70, V75, V80, V85, V90
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Visualizza dettagli completi

Cat.2 Hydraulic Top Link with Ball & QR Hook - Sparex S.331291

- **Heavy-duty hydraulic top link with a robust 63mm cylinder bore**
- **High lift capacity of 3960 kgs @ 180 bar**
- **Versatile length adjustment from 535mm to 724mm**
- **Q.R CBM Hook for quick and easy attachment**
- **Suitable for tractors up to 100hp (74kW)**
