Vendor: Sparex - SKU:

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 70mm, Min. Length : 700mm. | Sparex Part No.S.331011

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 70mm, Min. Length : 700mm. | Sparex Part No.S.331011

SKU:SP-S.331011

Prezzo di listino €549,95 EUR
Prezzo di listino Prezzo scontato €549,95 EUR
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

Scorte ridotte: ne restano 9

Quantità
Default Title

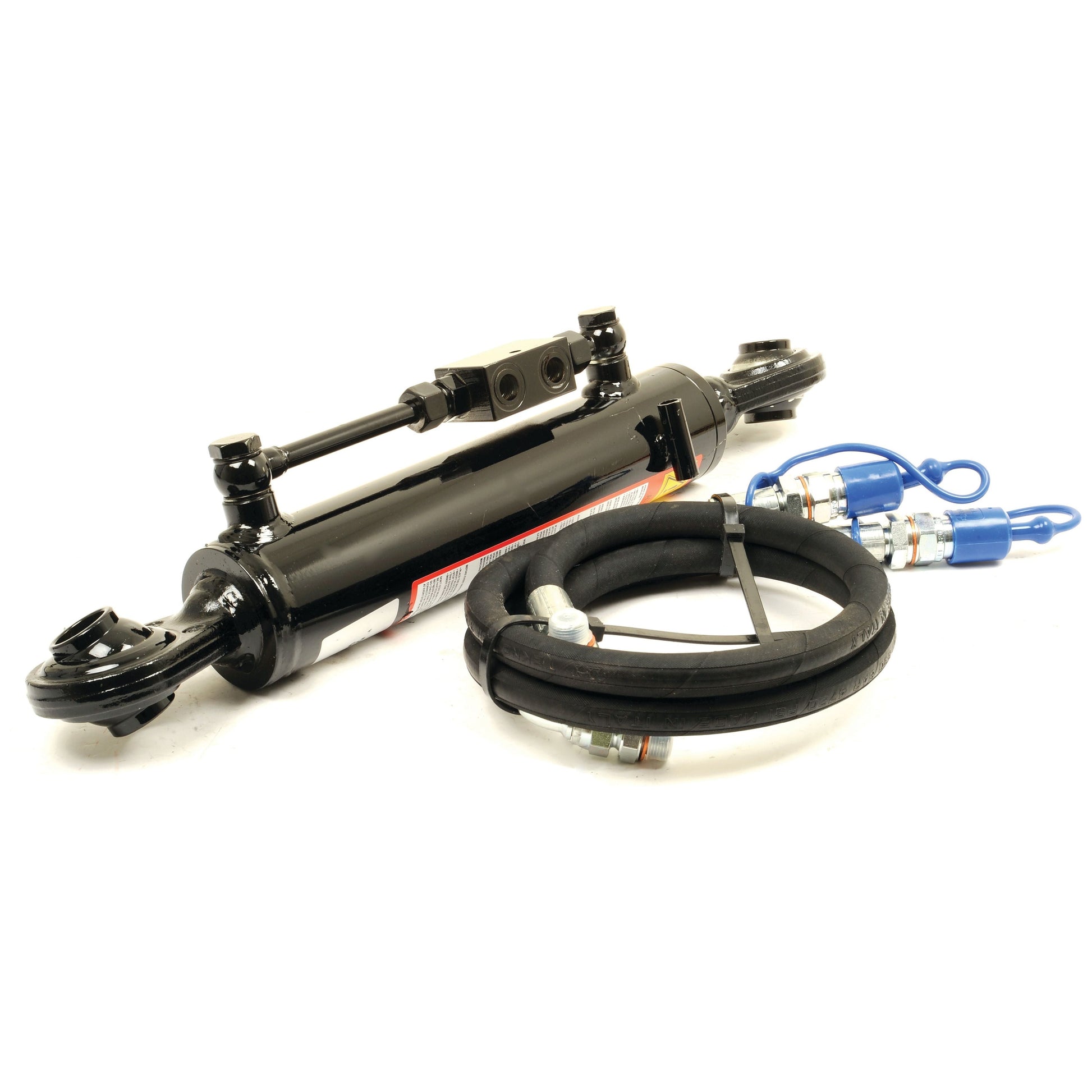

Hydraulic Top Link (Cat.2/2) Ball and Ball, Cylinder Bore: 70mm | Sparex Part No. S.331011

Enhance your tractor's performance with the Hydraulic Top Link from Sparex. Designed for durability and efficiency, this top link features a minimum length of 700mm and a maximum length of 1093mm. It comes complete with a Hose Set for easy installation and immediate use.

Product Specifications
  • Alternative to: 331001
  • Brand: Sparex
  • Category Implement End: 2
  • Category Tractor End: 2
  • Category: 2/2
  • Check Valve Position: Top
  • Cylinder Bore: 70mm
  • Implement End: Ball
  • Lift Capacity @ 180 bar: 5310 kg
  • Maximum Length: 1093mm
  • Minimum Length: 700mm
  • Related Products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 164591
  • Rod Diameter: 35mm
  • Suitable for Tractors up to: 150hp (110kW)
  • Supplied with: Hose Set
  • Tariff Code: 8412212090
  • Thrust @ 180 bar: 7080 kg
  • Tractor End Fixing: Ball End
  • Tractor End: Ball
Compatibility Information

This hydraulic top link is compatible with a variety of tractor models:

  • Case IH / International Harvester: FARMALL 105A, FARMALL 115A, FARMALL 65A, FARMALL 75A, FARMALL 85A, FARMALL 95A, FARMALL JX100, FARMALL JX110, FARMALL JX75, JX60, JX70
  • Ford / New Holland: TD5.100, TD5.105, TD5.110, TD5.115, TD5.65, TD5.75, TD5.80, TD5.85, TD5.90, TD5.95, TD5010, TD5020, TD5030, TD5040, TD5050, TD55D, TD60D, TD65D, TD70D, TD75D, TD80D, TD85D, TD90D, TD95D
  • Kubota: M110GX, M135GX
  • Landini: MYTHOS 100, MYTHOS 105, MYTHOS 110, MYTHOS 115, MYTHOS 90
Manufacturer Information

Part Number: Ford / New Holland 5095817

Additional Product Information

Product Specifications

Alternative to: 331001
Brand: Sparex
Category Implement End: 2
Category Tractor End: 2
Category: 2/2
Check Valve Position: Top
Cylinder Bore (mm): 70
Implement End: Ball
Lift kgs @180 bar: 5310
Maximum Length (mm): 1093
Minimum Length (mm): 700
Related products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 164591
Rod Ø (mm): 35
Suitable for Tractors up to HP/Kw: 150hp (110kW)
Supplied with: Hose Set
Tariff Code: 8412212090
Thrust kgs @180 (bar): 7080
Tractor End Fixing: Ball End
Tractor End: Ball

OEM Manufacture Information

Ford / New Holland
5095817

Suitable For Information

Case IH / International Harvester
FARMALL 105A, FARMALL 115A, FARMALL 65A, FARMALL 75A, FARMALL 85A, FARMALL 95A, FARMALL JX100, FARMALL JX110, FARMALL JX75, JX60, JX70
Ford / New Holland
TD5.100, TD5.105, TD5.110, TD5.115, TD5.65, TD5.75, TD5.80, TD5.85, TD5.90, TD5.95, TD5010, TD5020, TD5030, TD5040, TD5050, TD55D, TD60D, TD65D, TD70D, TD75D, TD80D, TD85D, TD90D, TD95D
Kubota
M110GX, M135GX
Landini
MYTHOS 100, MYTHOS 105, MYTHOS 110, MYTHOS 115, MYTHOS 90
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Visualizza dettagli completi

Hydraulic Top Link (Cat.2/2) - 70mm Bore, 700mm Min. Length

- **Heavy-duty hydraulic top link for tractors up to 150hp (110kW)**
- **Compatible with popular tractor models from Case IH, Ford/New Holland, Kubota, and Landini**
- **High lift capacity of 5310kg @ 180 bar**
- **Durable construction with a 70mm cylinder bore and 35mm rod diameter**
- **Includes a hose set for easy installation**
