Vendor: Sparex - SKU:

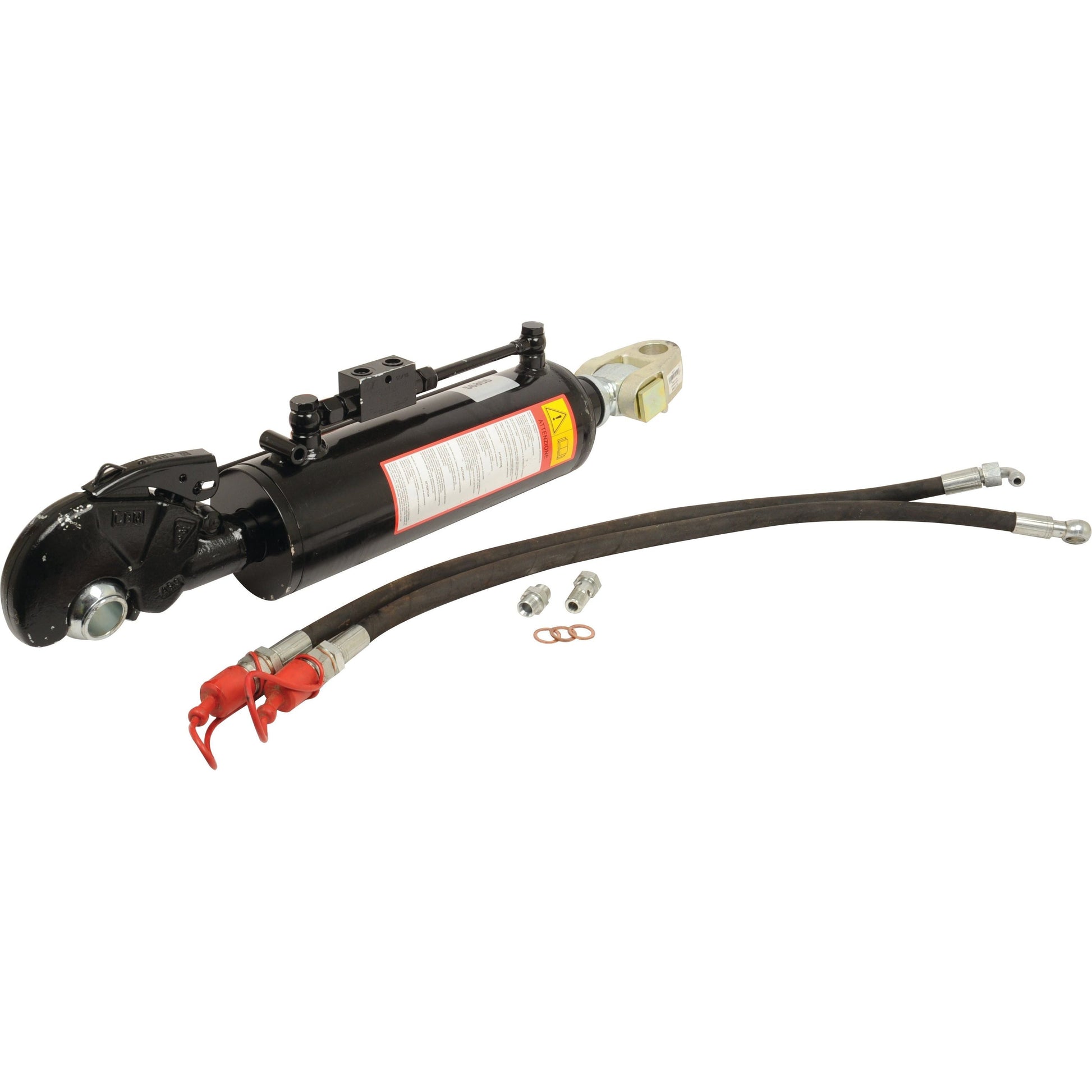

Hydraulic Top Link (Cat.28mm/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 550mm. | Sparex Part No.S.399903

Hydraulic Top Link (Cat.28mm/2) Knuckle and Q.R CBM Hook, Cylinder Bore: 63mm, Min. Length : 550mm. | Sparex Part No.S.399903

SKU:SP-S.399903

Prezzo di listino €588,95 EUR
Prezzo di listino Prezzo scontato €588,95 EUR
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

Scorte ridotte: ne restano 5

Quantità
Default Title

Introducing the Hydraulic Top Link (Cat.28mm/2) by Sparex, designed for optimal performance and versatility in agricultural applications. With a minimum length of 550mm and a maximum length of 728mm, this hydraulic top link is perfect for tractors up to 100hp (74kW). It comes complete with a hose set, chain & ball, and a marker label featuring a knuckle and pin for easy installation.

Product Specifications
  • A (mm): 140
  • Alternative to: 56790
  • Brand: Sparex
  • Category Implement End: 2
  • Category Tractor End: 28mm
  • Category: 28mm/2
  • Check Valve Position: Top
  • Cylinder Bore (mm): 63
  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 3960
  • Maximum Length (mm): 728
  • Minimum Length (mm): 550
  • Related Products: 10289, 10292, 33008, 33017, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 148199
  • Rod Diameter (mm): 35
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 5730
  • Tractor End Fixing: S.10289
  • Tractor End: Knuckle
Compatibility Information

This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring broad compatibility across various applications.

Additional Product Information

Product Specifications

A (mm): 140
Alternative to: 56790
Brand: Sparex
Category Implement End: 2
Category Tractor End: 28mm
Category: 28mm/2
Check Valve Position: Top
Cylinder Bore (mm): 63
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 3960
Maximum Length (mm): 728
Minimum Length (mm): 550
Related products: 10289,10292,33008,33017,33137,33144,33158,33201,39965,39966,39967,39968,148199
Rod Ø (mm): 35
Suitable for Tractors up to HP/Kw: 100hp (74kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code:8412212090
Thrust kgs @180 (bar): 5730
Tractor End Fixing: S.10289
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

This product is not associated with any particular make or model
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Visualizza dettagli completi

Hydraulic Top Link - Cat.2, 63mm Bore, Sparex S.399903

- **Heavy-duty hydraulic top link with a 3960kg lift capacity**
- **Universal fitment for tractors up to 100hp (74kW)**
- **Sparex brand, known for quality and reliability**
- **Features a quick-release CBM hook for easy implement attachment**
- **Includes a hose set, chain & ball, and a marker label for convenient installation**
