Hydraulic Top Link (Cat.2/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 565mm. | Sparex Part No.S.399892

Hydraulic Top Link (Cat.2/3) Knuckle and Q.R CBM Hook, Cylinder Bore: 90mm, Min. Length : 565mm. | Sparex Part No.S.399892

SKU:SP-S.399892

Prezzo di listino £572.40 GBP
Prezzo di listino £572.40 GBP Prezzo scontato £572.40 GBP
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

Scorte ridotte: ne restano 4

Quantità
Default Title

Hydraulic Top Link (Cat.2/3) with Knuckle and Q.R CBM Hook - Sparex Part No. S.399892

Enhance your tractor's performance with the Hydraulic Top Link from Sparex, designed for durability and efficiency. This top link features a minimum length of 565mm and a maximum length of 706mm, making it versatile for various applications. It comes complete with a hose set, chain & ball, and a marker label with knuckle & pin for easy installation and operation.

Product Specifications
  • A (mm): 152
  • Alternative to: 56800
  • Brand: Sparex
  • Category Implement End: 3
  • Category Tractor End: 2
  • Category: 2/3
  • Check Valve Position: Top
  • Cylinder Bore (mm): 90

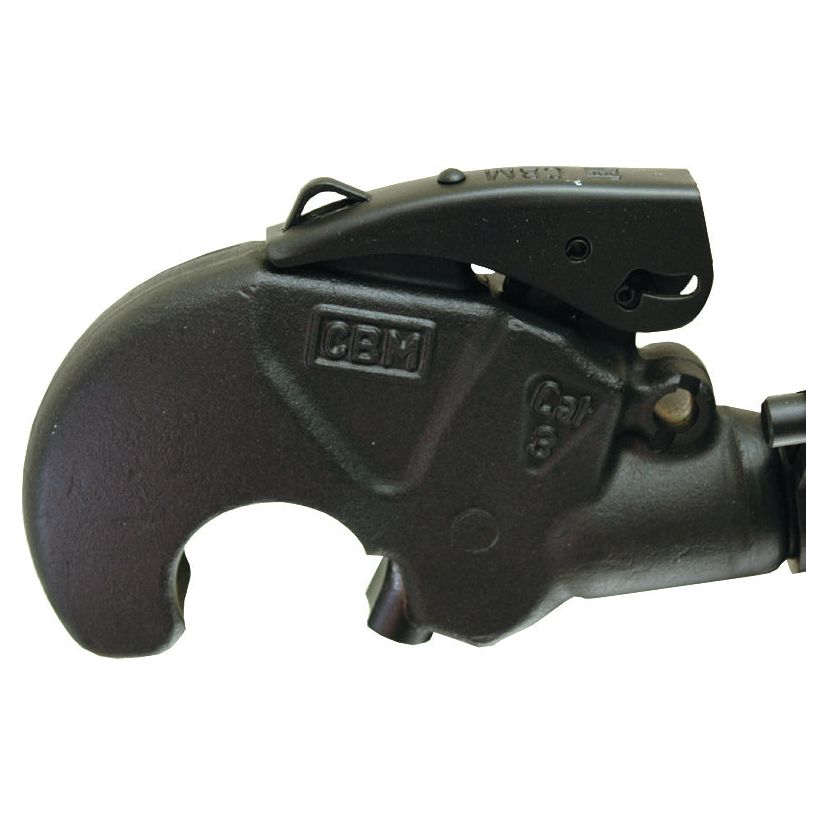

  • Implement End: Q.R CBM Hook
  • Lift Capacity (kgs @ 180 bar): 8770
  • Maximum Length (mm): 706
  • Minimum Length (mm): 565
  • Related Products: 10287, 10292, 32257, 33004, 33010, 33017, 33137, 33144, 33158, 33202, 39965, 39966, 39967, 39968, 148196, 148197
  • Rod Diameter (mm): 45
  • Suitable for Tractors up to: 180hp (135kW)
  • Supplied with: Hose set, chain & ball, marker label with knuckle & pin
  • Tariff Code: 8412212090
  • Thrust (kgs @ 180 bar): 11700
  • Tractor End Fixing: S.10287

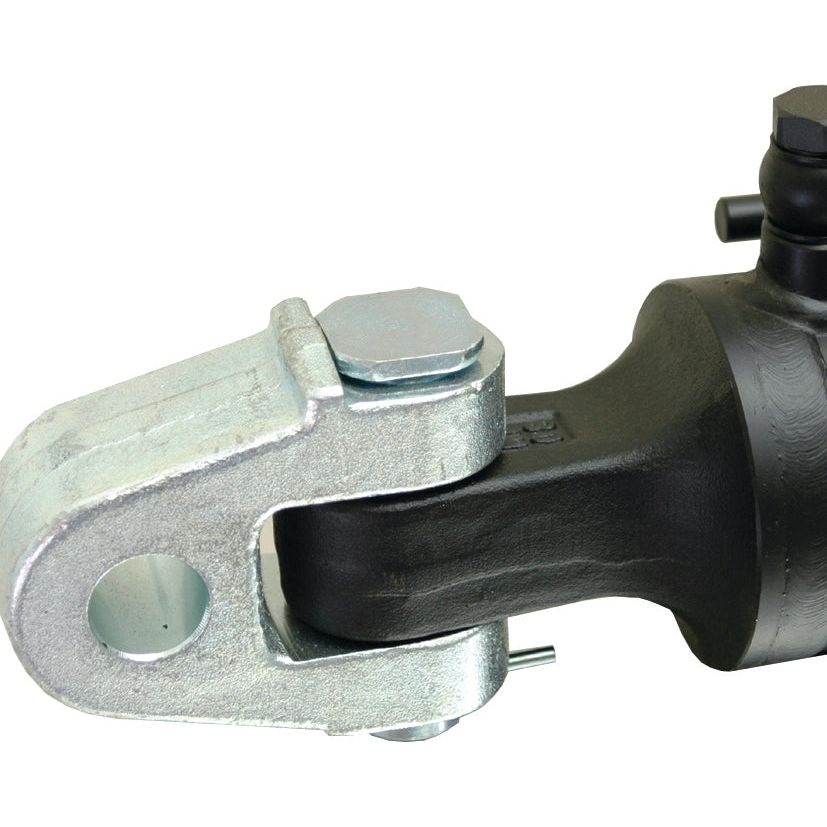

  • Tractor End: Knuckle
Suitable For

This hydraulic top link is compatible with John Deere models: 6410SE, 6420SE, 6510SE, 6520SE, 6610SE, and 6620SE.

Manufacture Information

Please note that this product is not associated with any specific OEM part number, ensuring a reliable alternative for your agricultural needs.

Additional Product Information

Product Specifications

A (mm): 152
Alternative to: 56800
Brand: Sparex
Category Implement End: 3
Category Tractor End: 2
Category: 2/3
Check Valve Position: Top
Cylinder Bore (mm): 90
Implement End: Q.R CBM Hook
Lift kgs @180 bar: 8770
Maximum Length (mm): 706
Minimum Length (mm): 565
Related products: 10287,10292,32257,33004,33010,33017,33137,33144,33158,33202,39965,39966,39967,39968,148196,148197
Rod Ø (mm): 45
Suitable for Tractors up to HP/Kw: 180hp (135kW)
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
Tariff Code:8412212090
Thrust kgs @180 (bar): 11700
Tractor End Fixing: S.10287
Tractor End: Knuckle

OEM Manufacture Information

This product is not associated with any particular OEM part number

Suitable For Information

John Deere
6410SE, 6420SE, 6510SE, 6520SE, 6610SE, 6620SE
For Exact Fitment Confirmation Please Contact Our Support Team Before Ordering As Fitment May Be Dependant The Vehicle Serial Number For Exact OEM Match - Suitable For Information Is Not Guaranteed Unless Recommended By Our Support Team @ Info@masseytractorparts.com

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

Visualizza dettagli completi

Hydraulic Top Link - Cat.2/3, 90mm Bore, Sparex S.399892

- **Heavy-duty hydraulic top link for tractors up to 180hp (135kW)**
- **Category 2/3 compatibility for versatile use**
- **Knuckle and Q.R CBM Hook for secure implement attachment**
- **Large cylinder bore (90mm) for powerful lifting capacity (8770 kgs @ 180 bar)**
- **Includes hose set, chain & ball, and marker label for easy installation and operation**
