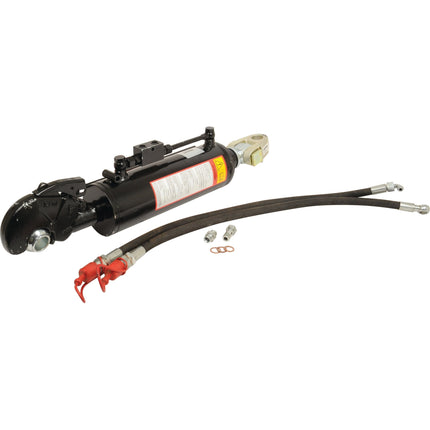

Hydraulic Top Link (Cat.3/2) with Knuckle and Q.R CBM Hook
Introducing the Hydraulic Top Link from Sparex, designed for optimal performance in agricultural applications. This versatile top link features a minimum length of 560mm and a maximum length of 725mm, making it suitable for a variety of tractor configurations. It comes complete with a hose set, chain & ball, and a marker label with knuckle & pin for easy installation and use.
Product Specifications
-
A (mm): 152
-
Alternative to: 56793
-
Brand: Sparex
-
Category Implement End: 2
-
Category Tractor End: 3
-
Category: 3/2
-
Check Valve Position: Top
-
Cylinder Bore (mm): 80
-
Implement End: Q.R CBM Hook
-
Lift Capacity (kgs) @ 180 bar: 6930
-
Maximum Length (mm): 725
-
Minimum Length (mm): 560
-
Related Products: 10288, 10292, 32255, 33008, 33017, 33137, 33144, 33158, 39965, 39966, 39967, 39968
-
Rod Diameter (mm): 40
-
Suitable for Tractors up to: 180hp (135kW)
-
Supplied with: Hose set, chain & ball, marker label with knuckle & pin
-
Tariff Code: 8412212090
-
Thrust (kgs) @ 180 bar: 9240
-
Tractor End Fixing: S.10288
-
Tractor End: Knuckle
Compatibility Information
This hydraulic top link is designed for universal fitment and is not associated with any specific make or model.
Manufacturer Information
This product is not linked to any particular OEM part number, ensuring broad compatibility across various applications.
