Vendor: Sparex - SKU: SP-359380

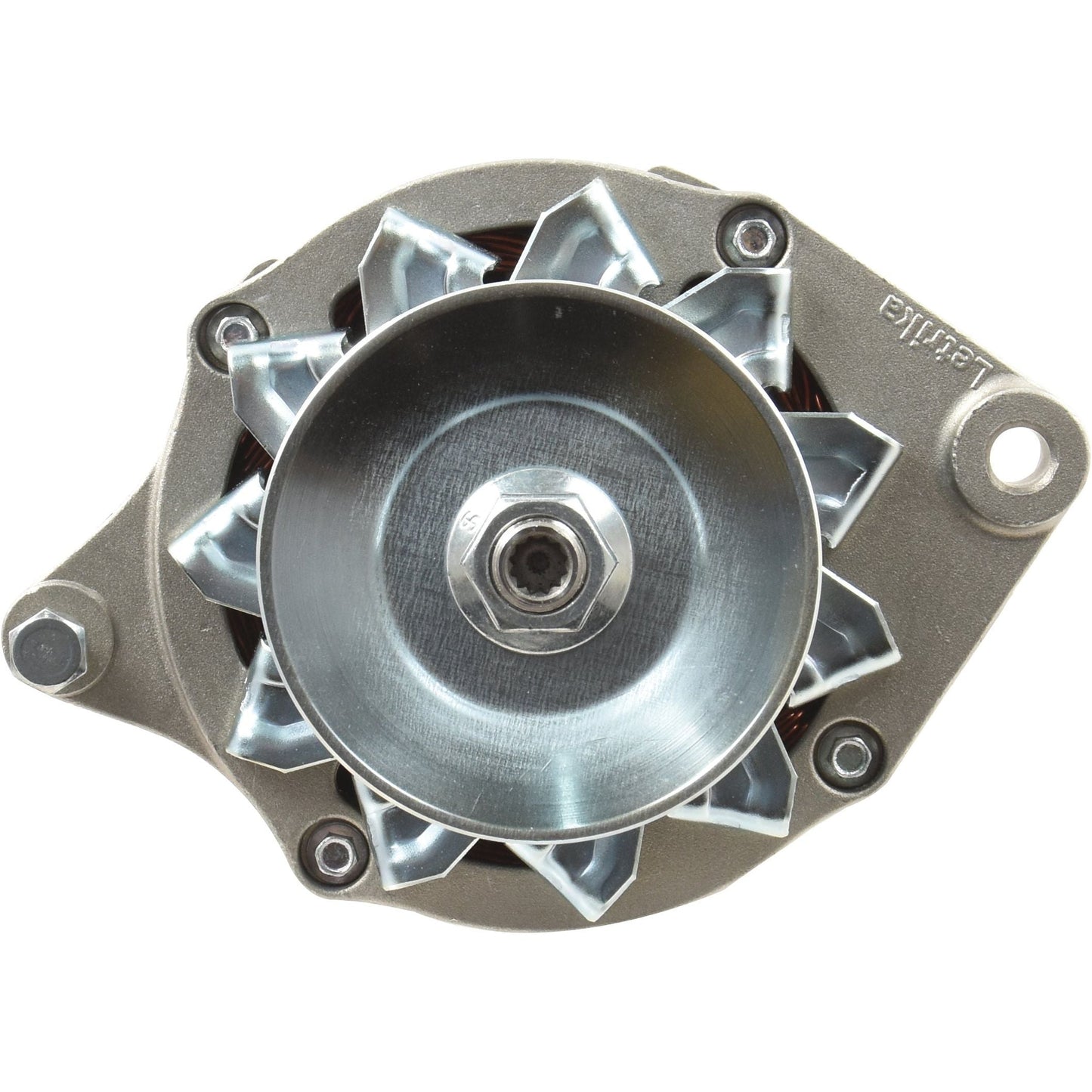

Alternator (Mahle) - 14V, 65 Amps | Sparex Part No.S.359380

Alternator (Mahle) - 14V, 65 Amps | Sparex Part No.S.359380

SKU:SP-S.359380

Regular price £186.30 GBP
Regular price £207.00 GBP Sale price £186.30 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 3 left

Quantity

Alternator (Mahle) - 14V, 65 Amps | Sparex Part No. S.359380

Upgrade your machinery with the high-performance Mahle Alternator, designed to deliver reliable power with a voltage of 14V and an impressive 65 Amps. This alternator features a Single Groove Pulley with a diameter of 90mm, ensuring optimal functionality for your equipment.

Product Specifications
  • A (mm): 27
  • Alternative to: 359381
  • Amps: 65
  • B (mm): 10.3
  • Belt Pulley Width (mm): 23
  • Brand: Mahle
  • C (mm): 83
  • Connection Type: Connector
  • D (mm): 32.5
  • Fan Type: External
  • Height (mm): 158.8
  • Length (mm): 209.6
  • Mounting Hole (mm): 10.3
  • Number of Holes: Two
  • Nut: Hex Nut
  • Pulley Type: Single Groove
  • Pulley Ø (mm): 90
  • Related Products: 35914
  • Shaft Length (mm): 40
  • Shaft Type: Splined
  • Supplied with Fan: Yes
  • Tariff Code: 8511500090
  • Volts: 14V
  • Width (mm): 177.8
Suitable For

This alternator is compatible with a variety of machinery, including:

  • Landini: LARGE 16000, LARGE 16500
  • Massey Ferguson: 135, 140, 142, 145, 148, 152, 155, 158, 168, 174, 194, 20, 20F, 240, 245, 253, 254, 255, 2620, 2640, 265, 2680, 2720, 2725, 274, 275, 283, 284, 285 (FR), 290, 298, 30, 3050, 3060, 3065, 3070, 3080, 3090, 30B, 30D, 30E, 30H, 3303, 360, 3610, 3630, 3650, 3680, 375, 375E BRAZILIAN, 383, 390, 390E BRAZILIAN, 390T, 398, 399, 40B, 40E, 50A, 550, 560, 565, 575, 590, 675, 690, 698
  • Perkins: A4.212, A4.236, A4.248, AD3.152, AD4.203
  • Renault: 103-12, 103-14, 103-54, 106-54, 110-14, 113-12, 113-14, 120-14, 133-14, 155-54, 160-94, 180-94, 489, 58-12, 58-14, 58-32, 58-34, 600M, 65-12, 65-14, 65-32, 650MI, 75-12, 75-14, 75-32, 75-34, 750MI, 754MI, 80-12, 80-14, 800M, 85-12, 85-32, 85-34, 850MI, 854MI, 89, 90-32, 90-34, 900, 904, 92, 94, 95-12, 95-14
Manufacturer Information

This alternator is manufactured by:

  • Iskra: IA0693, Landini: 1895398M91, 3405390M1, 3381352M91, 3619490M00, 3581387M1
  • Lester: 12099, 12122, 12043, 12173, 12103
  • Lucas: LRA220, LRA964, LRA00964, LRA00959, LRA00961, LRA00380, LRA961, LRA380, 24088, 24204
  • Massey Ferguson: 1699872R1, 1699872T, 1699881M91, 908487M1, 3619490M00, 3581387M1, 2541131, 1895398M91, 3467043R91, 3405390R1, 1691795R92, 3405390M1, 3381352M91, 3467043M91, 1895398R1, 3933144M91
  • Renault: 7700017041, 6005003157, 6005701123, 7700012969
  • Valeo: 541131, 436264

Ensure your machinery runs smoothly with the Mahle Alternator. Order now to experience enhanced performance and reliability!

Additional Product Information

Product Specifications

A (mm): 27
Alternative to: 359381
Amps: 65
B (mm): 10.3
Belt pulley width (mm): 23
Brand: Mahle
C (mm): 83
Connection Type: Connector
D (mm): 32.5
Fan Type: External
Height (mm): 158.8
Length (mm): 209.6
Mounting Hole mm: 10.3
Number of holes: Two
Nut: Hex Nut
Pulley type: Single Groove
Pulley Ø (mm): 90
Related products: 35914
Shaft Length (mm): 40
Shaft Type: Splined
Supplied with Fan: Yes
Tariff Code:8511500090
Volts: 14V
Width (mm): 177.8

OEM Manufacture Information

Iskra
IA0693
Landini
1895398M91, 3405390M1, 3381352M91, 3619490M00, 3581387M1
Lester
12099, 12122, 12043, 12173, 12103
Lucas
LRA220, LRA964, LRA00964, LRA00959, LRA00961, LRA00380, LRA961, LRA380, 24088, 24204
Massey Ferguson
1699872R1, 1699872T, 1699881M91, 908487M1, 3619490M00, 3581387M1, 2541131, 1895398M91, 3467043R91, 3405390R1, 1691795R92, 3405390M1, 3381352M91, 3467043M91, 1895398R1, 3933144M91
Renault
7700017041, 6005003157, 6005701123, 7700012969
Valeo
541131, 436264

Suitable For Information

Landini
LARGE 16000, LARGE 16500
Massey Ferguson
135, 140, 142, 145, 148, 152, 155, 158, 168, 174, 194, 20, 20F, 240, 245, 253, 254, 255, 2620, 2640, 265, 2680, 2720, 2725, 274, 275, 283, 284, 285 (FR), 290, 298, 30, 3050, 3060, 3065, 3070, 3080, 3090, 30B, 30D, 30E, 30H, 3303, 360, 3610, 3630, 3650, 3680, 375, 375E BRAZILIAN, 383, 390, 390E BRAZILIAN, 390T, 398, 399, 40B, 40E, 50A, 550, 560, 565, 575, 590, 675, 690, 698
Perkins
A4.212, A4.236, A4.248, AD3.152, AD4.203
Renault
103-12, 103-14, 103-54, 106-54, 110-14, 113-12, 113-14, 120-14, 133-14, 155-54, 160-94, 180-94, 489, 58-12, 58-14, 58-32, 58-34, 600M, 65-12, 65-14, 65-32, 650MI, 75-12, 75-14, 75-32, 75-34, 750MI, 754MI, 80-12, 80-14, 800M, 85-12, 85-32, 85-34, 850MI, 854MI, 89, 90-32, 90-34, 900, 904, 92, 94, 95-12, 95-14

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Mahle Alternator - 14V, 65 Amps | Sparex S.359380

- **High-Performance Mahle Alternator:** Delivers reliable power with 14V and 65 Amps.
- **Single Groove Pulley:** Ensures optimal functionality with a 90mm diameter.
- **Wide Compatibility:** Suitable for various machinery brands including Landini, Massey Ferguson, Perkins, and Renault.
- **External Fan:** Provides efficient cooling for optimal performance.
- **Direct Replacement:** Alternative to part number 359381.
