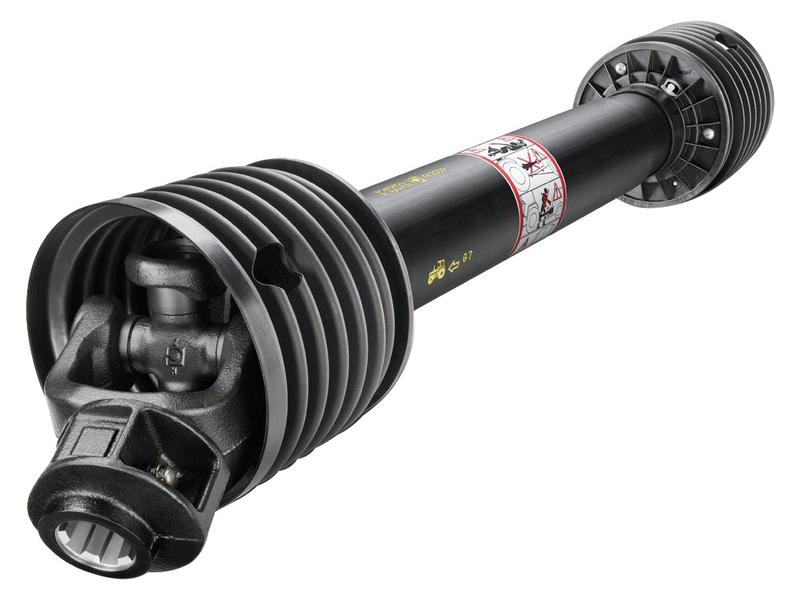

Bondioli & Pavesi PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165137

Bondioli & Pavesi PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165137

SKU:SP-S.165137

Regular price £355.32 GBP
Regular price £394.80 GBP Sale price £355.32 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 17 left

Quantity
Default Title

Bondioli & Pavesi PTO Shaft - 1210mm Length, 1 3/8'' x 6 Spline Q.R.

Introducing the Bondioli & Pavesi PTO Shaft, a high-performance component designed for durability and efficiency. This PTO shaft is part of the renowned Global G4 Series, ensuring compatibility and reliability for your agricultural machinery.

Key Specifications:

  • Brand: Bondioli & Pavesi
  • Guard Type: Global
  • HP Rating @ 540RPM: 35 HP
  • HP Rating @ 1000RPM: 55 HP
  • HP Rating Range @ 540RPM: Up to 54 HP
  • Kilowatt Power Rating @ 540RPM: 26 kW
  • Kilowatt Power Rating @ 1000RPM: 40 kW
  • Lz Length: 1210 mm
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Torque: 335 - 1240 Nm (460 Nm nominal)
  • Tube Profile: Triangle
  • Universal Joint Dimensions: 27 x 74.5 mm
  • Reference: 7G4N121CE007007
  • Tariff Code: 8483908990

Compatibility:

This PTO shaft is designed for universal fitment and is not associated with any specific make or model, making it a versatile choice for various applications.

Related Products:

  • 24207
  • 165078
  • 165114

Upgrade your machinery with the Bondioli & Pavesi PTO Shaft for enhanced performance and reliability. Order now and experience the quality that comes with the Global G4 Series.

Additional Product Information

Product Specifications

Brand: Bondioli & Pavesi
Guard Type: Global
HP Rating @ 540RPM: 35
HP Rating @ 1000RPM: 55
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: Global G4
Kilowatt Power Rating @ 540RPM: 26
Kilowatt Power Rating @ 1000RPM: 40
Lz Length (mm): 1210
PTO Series: Global G4
Reference: 7G4N121CE007007
Related products: 24207, 165078, 165114
Tariff Code: 8483908990
Torque (Nm): 460
Torque: 335 - 1240Nm
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Triangle
Tube Ref: 12507/12508
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

Bondioli & Pavesi
7G4N121CE007007

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Bondioli & Pavesi PTO Shaft - 1210mm, 1 3/8" x 6 Spline Q.R.

- **Bondioli & Pavesi Global G4 Series PTO Shaft:** Ensuring compatibility and reliability for your agricultural machinery.
- **1210mm Length:** Provides versatility for various applications.
- **1 3/8'' x 6 Spline Q.R. Implement and Tractor End:** Standard size for easy compatibility with most equipment.
- **High HP Rating:** 35 HP @ 540 RPM and 55 HP @ 1000 RPM, suitable for demanding tasks.
- **Durable Triangle Tube Profile:** Ensures strength and longevity.
