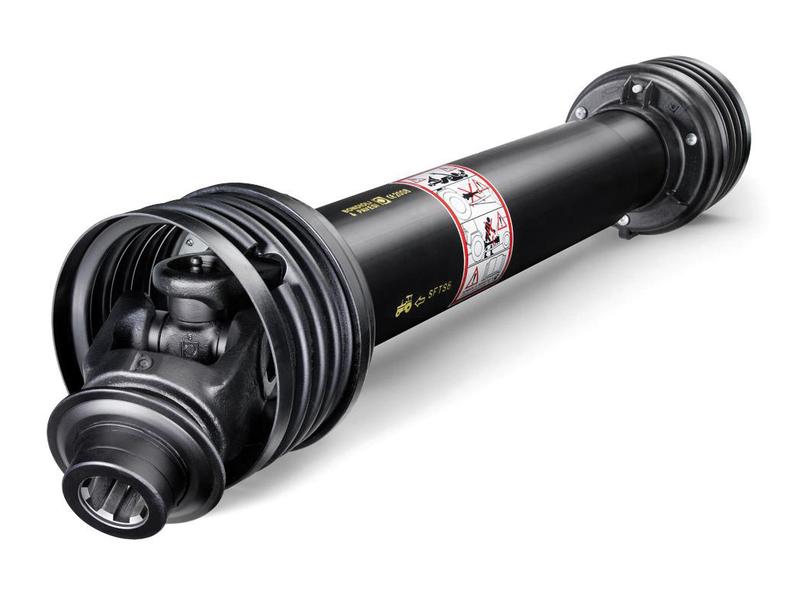

Bondioli & Pavesi PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165139

Bondioli & Pavesi PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165139

SKU:SP-S.165139

Regular price £467.64 GBP
Regular price £519.60 GBP Sale price £467.64 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 11 left

Quantity
Default Title

Bondioli & Pavesi PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165139

Enhance your agricultural machinery with the Bondioli & Pavesi PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft is perfect for various applications, ensuring efficient power transfer from your tractor to implements.

Product Specifications

  • Brand: Bondioli & Pavesi
  • Guard Type: SFT
  • HP Rating @ 540RPM: 38 HP
  • HP Rating @ 1000RPM: 57 HP
  • HP Rating Range @ 540RPM: Up to 54 HP
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: SFT S4
  • Kilowatt Power Rating @ 540RPM: 28 kW
  • Kilowatt Power Rating @ 1000RPM: 42 kW
  • Lz Length: 1210 mm
  • PTO Series: SFT S4
  • Reference: CS4N121CE007007
  • Related Products: 24207, 165078, 165093, 165096, 165113, 165153, 165154
  • Tariff Code: 8483908990
  • Torque: 494 Nm (335 - 1240 Nm)
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Square
  • Tube Reference: 12241/12242
  • Universal Joint Dimensions: 27 x 74.5 mm

This PTO shaft is engineered to meet the highest standards of quality and performance, making it an essential component for your agricultural equipment. With its robust design and reliable specifications, the Bondioli & Pavesi PTO Shaft is the ideal choice for farmers and machinery operators looking for efficiency and durability.

For more information or to purchase, refer to the Sparex Part Number: S.165139.

Additional Product Information

Product Specifications

Brand: Bondioli & Pavesi
Guard Type: SFT
HP Rating @ 540RPM: 38
HP Rating @ 1000RPM: 57
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: SFT S4
Kilowatt Power Rating @ 540RPM: 28
Kilowatt Power Rating @ 1000RPM: 42
Lz Length (mm): 1210
PTO Series: SFT S4
Reference: CS4N121CE007007
Related products: 24207, 165078, 165093, 165096, 165113, 165153, 165154
Tariff Code: 8483908990
Torque (Nm): 494
Torque: 335 - 1240Nm
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Square
Tube Ref: 12241/12242
Universal Joint Dimensions: 27 x 74.5mm

OEM Manufacture Information

Bondioli & Pavesi
CS4N121CE007007

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Bondioli & Pavesi PTO Shaft - 1210mm, 1 3/8" x 6 Spline Q.R.

- **High-Quality Bondioli & Pavesi PTO Shaft:** Engineered for optimal performance and durability.
- **1210mm Length:** Suitable for various applications and implements.
- **1 3/8'' x 6 Spline Q.R. Connections:** Ensures secure and efficient power transfer.
- **SFT S4 Series:** Known for its robust design and reliability.
- **Sparex Part Number: S.165139:** Easy identification and ordering.
