Bondioli & Pavesi PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165144

Bondioli & Pavesi PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165144

SKU:SP-S.165144

Regular price £535.68 GBP
Regular price £595.20 GBP Sale price £535.68 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Quantity
Default Title

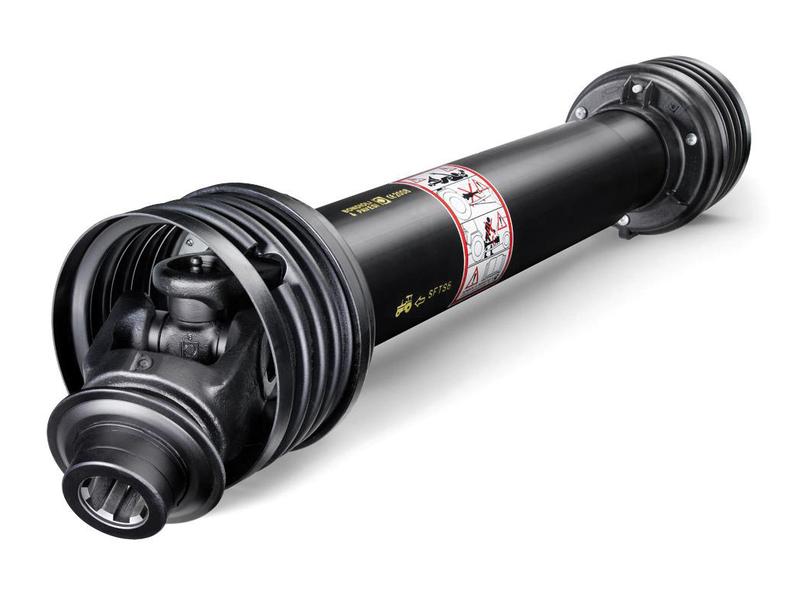

Bondioli & Pavesi PTO Shaft - 1210mm Length, 1 3/8'' x 6 Spline Q.R.

Introducing the Bondioli & Pavesi PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1210mm and is equipped with 1 3/8'' x 6 Spline Quick Release (Q.R.) connections on both ends, ensuring compatibility with a wide range of agricultural implements.

Key Specifications:

  • Brand: Bondioli & Pavesi
  • Guard Type: SFT
  • HP Rating @ 540RPM: 70 HP
  • HP Rating @ 1000RPM: 106 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Kilowatt Power Rating @ 540RPM: 51 kW
  • Kilowatt Power Rating @ 1000RPM: 78 kW
  • Torque: 335 - 1240 Nm (Max Torque: 911 Nm)
  • Tube Profile: Square
  • Universal Joint Dimensions: 30.2 x 91.5 mm
  • Reference: CH7N121CE007007
  • Tariff Code: 8483908990

Compatibility:

This PTO shaft is part of the SFT H7 Italian Series and is designed for universal fitment, making it suitable for various agricultural applications. It is not associated with any specific make or model, providing flexibility for your machinery needs.

Related Products:

Explore additional options with our related products: 111848, 165081, 165104, 165105, 165117, 165163, 165164.

Upgrade your agricultural equipment with the reliable and efficient Bondioli & Pavesi PTO Shaft. Order now and experience enhanced performance in your farming operations!

Additional Product Information

Product Specifications

Brand: Bondioli & Pavesi
Guard Type: SFT
HP Rating @ 540RPM: 70
HP Rating @ 1000RPM: 106
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: SFT H7
Kilowatt Power Rating @ 540RPM: 51
Kilowatt Power Rating @ 1000RPM: 78
Lz Length (mm): 1210
PTO Series: SFT H7
Reference: CH7N121CE007007
Related products: 111848, 165081, 165104, 165105, 165117, 165163, 165164
Tariff Code: 8483908990
Torque (Nm): 911
Torque: 335 - 1240Nm
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Square
Tube Ref: 12251/12209
Universal Joint Dimensions: 30.2 x 91.5mm

OEM Manufacture Information

Bondioli & Pavesi
CH7N121CE007007

Suitable For Information

This product is not associated with any particular make or model
