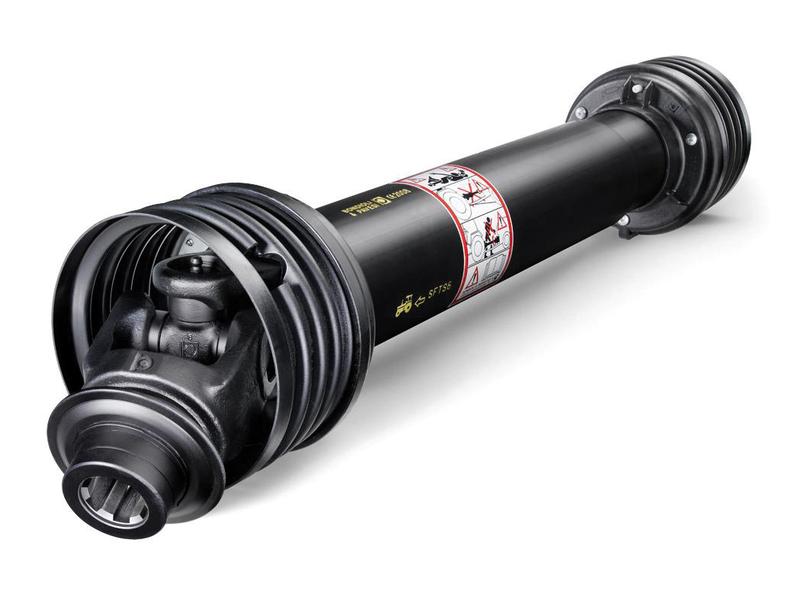

Bondioli & Pavesi PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165147

Bondioli & Pavesi PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165147

SKU:SP-S.165147

Regular price £709.56 GBP
Regular price £788.40 GBP Sale price £709.56 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Quantity
Default Title

Bondioli & Pavesi PTO Shaft - 1210mm Length, 1 3/8'' x 6 Spline Q.R.

Introducing the Bondioli & Pavesi PTO Shaft, a high-performance solution designed for agricultural and industrial applications. This PTO shaft features a robust construction and is engineered to deliver exceptional power and torque, making it an essential component for your machinery.

Product Specifications

  • Brand: Bondioli & Pavesi
  • Guard Type: SFT
  • HP Rating @ 540RPM: 90 HP
  • HP Rating @ 1000RPM: 136 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: SFT S8
  • Kilowatt Power Rating @ 540RPM: 66 kW
  • Kilowatt Power Rating @ 1000RPM: 100 kW
  • Lz Length: 1210 mm
  • PTO Series: SFT S8
  • Reference: CS8N121CE007007
  • Tariff Code: 8483908990
  • Torque: 1171 Nm (335 - 1240 Nm)
  • Tractor End: 1 3/8'' x 6 Spline Q.R.
  • Tube Profile: Square
  • Tube Reference: 12251/12209
  • Universal Joint Dimensions: 34.9 x 93.5 mm

Related Products

Explore our range of compatible products: 24216, 165083, 165104, 165105, 165123, 165171, 165172.

For reliable performance and durability, choose the Bondioli & Pavesi PTO Shaft. This product is designed to meet the highest standards of quality and efficiency, ensuring optimal operation for your equipment.

Supplier: Sparex | SKU: SP-165147

Additional Product Information

Product Specifications

Brand: Bondioli & Pavesi
Guard Type: SFT
HP Rating @ 540RPM: 90
HP Rating @ 1000RPM: 136
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: SFT S8
Kilowatt Power Rating @ 540RPM: 66
Kilowatt Power Rating @ 1000RPM: 100
Lz Length (mm): 1210
PTO Series: SFT S8
Reference: CS8N121CE007007
Related products: 24216, 165083, 165104, 165105, 165123, 165171, 165172
Tariff Code: 8483908990
Torque (Nm): 1171
Torque: 335 - 1240Nm
Tractor End: 1 3/8'' x 6 Spline Q.R.
Tube Profile: Square
Tube Ref: 12251/12209
Universal Joint Dimensions: 34.9 x 93.5mm

OEM Manufacture Information

Bondioli & Pavesi
CS8N121CE007007

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Bondioli & Pavesi PTO Shaft - 1210mm, 1 3/8" x 6 Spline Q.R.

- **High-Performance Bondioli & Pavesi PTO Shaft:** Engineered for agricultural and industrial applications, delivering exceptional power and torque.
- **Robust Construction:** Built to withstand demanding conditions and ensure long-lasting durability.
- **1210mm Length:** Ideal for various machinery and equipment configurations.
- **1 3/8'' x 6 Spline Q.R. Connections:** Compatible with a wide range of implements and tractors.
- **High HP Rating:** 90 HP @ 540RPM and 136 HP @ 1000RPM, providing ample power for demanding tasks.
