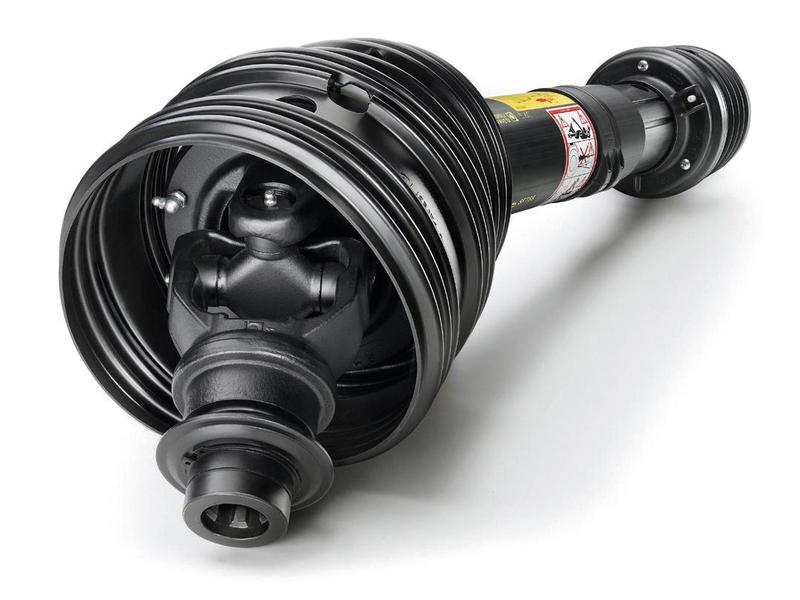

Bondioli & Pavesi PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165140

Bondioli & Pavesi PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165140

SKU:SP-S.165140

Regular price £1,053.00 GBP
Regular price £1,170.00 GBP Sale price £1,053.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Quantity
Default Title

Bondioli & Pavesi PTO Shaft - Wide Angle

Introducing the Bondioli & Pavesi PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a wide angle design, making it an essential component for various agricultural applications.

Product Specifications

  • Brand: Bondioli & Pavesi
  • Guard Type: SFT
  • HP Rating @ 540RPM: 38 HP
  • HP Rating @ 1000RPM: 57 HP
  • HP Rating Range @ 540RPM: Up to 54 HP
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: SFT S4-80°
  • Kilowatt Power Rating @ 540RPM: 28 kW
  • Kilowatt Power Rating @ 1000RPM: 42 kW
  • Lz Length: 1210 mm
  • PTO Series: SFT S4-80°
  • Reference: CS4R121CEWR7007
  • Tariff Code: 8483908990
  • Torque: 335 - 1240 Nm
  • Torque (Nm): 494 Nm
  • Tractor End: 1 3/8'' x 6 Spline 80° W.A.
  • Tube Profile: Square
  • Tube Ref: 2453G/12243
  • Universal Joint Dimensions: 22 x 86 mm

Related Products

Explore our range of compatible products: 24207, 165072, 165077, 165078, 165085, 165094, 165095, 165116, 165126, 165149, 165156, 166074.

Product Information

Supplier: Sparex

Product Type: PTO Shaft

Product SKU: SP-165140

OEM Fitment Information: Bondioli & Pavesi, CS4R121CEWR7007

Machine Fitment Information: This product is not associated with any particular make or model.

Upgrade your agricultural equipment with the reliable and efficient Bondioli & Pavesi PTO Shaft. Designed for high performance, this PTO shaft is perfect for a variety of tasks, ensuring you get the job done right.

Additional Product Information

Product Specifications

Brand: Bondioli & Pavesi
Guard Type: SFT
HP Rating @ 540RPM: 38
HP Rating @ 1000RPM: 57
HP Rating Range @ 540RPM: up to 54
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: SFT S4-80°
Kilowatt Power Rating @ 540RPM: 28
Kilowatt Power Rating @ 1000RPM: 42
Lz Length (mm): 1210
PTO Series: SFT S4-80°
Reference: CS4R121CEWR7007
Related products: 24207, 165072, 165077, 165078, 165085, 165094, 165095, 165116, 165126, 165149, 165156, 166074
Tariff Code: 8483908990
Torque (Nm): 494
Torque: 335 - 1240Nm
Tractor End: 1 3/8'' x 6 Spline 80° W.A.
Tube Profile: Square
Tube Ref: 2453G/12243
Universal Joint Dimensions: 22 x 86mm

OEM Manufacture Information

Bondioli & Pavesi
CS4R121CEWR7007

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Bondioli & Pavesi PTO Shaft - 1210mm, 80° Wide Angle

- **Wide Angle Design:** Ensures optimal performance and durability for various agricultural applications.
- **High HP Rating:** 38 HP @ 540 RPM and 57 HP @ 1000 RPM, suitable for demanding tasks.
- **Bondioli & Pavesi Quality:** Known for their high-quality and reliable agricultural components.
- **1210mm Length:** Provides flexibility for various tractor and implement combinations.
- **Sparex Part Number S.165140:** Ensures easy identification and ordering.
