Vendor: Sparex - SKU:

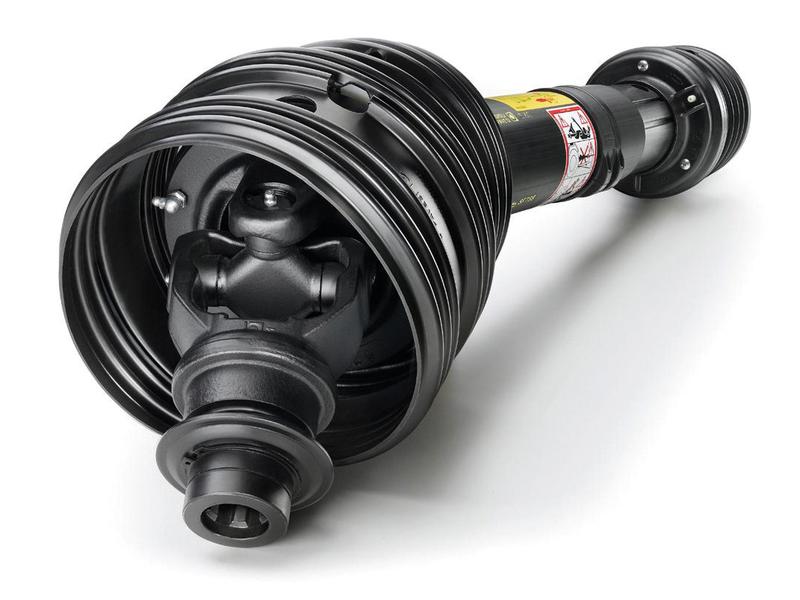

Bondioli & Pavesi PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165145

Bondioli & Pavesi PTO Shaft - Wide Angle - One End, (Lz) Length: 1210mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. | Sparex Part Number: S.165145

SKU:SP-S.165145

Regular price £1,176.12 GBP
Regular price £1,306.80 GBP Sale price £1,176.12 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

Quantity
Default Title

Bondioli & Pavesi PTO Shaft - Wide Angle

Introducing the Bondioli & Pavesi PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a wide angle design, making it an essential component for various agricultural applications.

Product Specifications:

  • Brand: Bondioli & Pavesi
  • Guard Type: SFT
  • HP Rating @ 540RPM: 70 HP
  • HP Rating @ 1000RPM: 106 HP
  • HP Rating Range @ 540RPM: 55 to 119 HP
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Italian Series: SFT H7-80°
  • Kilowatt Power Rating @ 540RPM: 51 kW
  • Kilowatt Power Rating @ 1000RPM: 78 kW
  • Lz Length: 1210 mm
  • PTO Series: SFT H7-80°
  • Reference: CH7R121CEWR7007
  • Tariff Code: 8483908990
  • Torque: 335 - 1240 Nm
  • Torque (Nm): 911 Nm
  • Tractor End: 1 3/8'' x 6 Spline 80° W.A.
  • Tube Profile: Square
  • Tube Ref: 2454D/12225
  • Universal Joint Dimensions: 27 x 100 mm

Related Products:

Explore our range of compatible products: 111848, 165074, 165080, 165081, 165106, 165107, 165120, 165130, 165163, 165166, 166076.

Supplier Information:

Supplier: Sparex

Product SKU: SP-165145

OEM Fitment Information: This product is not associated with any particular make or model.

Machine Fitment Information: This product is not associated with any particular make or model.

Upgrade your agricultural equipment with the reliable and efficient Bondioli & Pavesi PTO Shaft. Perfect for enhancing the performance of your machinery!

Additional Product Information

Product Specifications

Brand: Bondioli & Pavesi
Guard Type: SFT
HP Rating @ 540RPM: 70
HP Rating @ 1000RPM: 106
HP Rating Range @ 540RPM: 55 to 119
Implement End: 1 3/8'' x 6 Spline Q.R.
Italian Series: SFT H7-80°
Kilowatt Power Rating @ 540RPM: 51
Kilowatt Power Rating @ 1000RPM: 78
Lz Length (mm): 1210
PTO Series: SFT H7-80°
Reference: CH7R121CEWR7007
Related products: 111848, 165074, 165080, 165081, 165106, 165107, 165120, 165130, 165163, 165166, 166076
Tariff Code: 8483908990
Torque (Nm): 911
Torque: 335 - 1240Nm
Tractor End: 1 3/8'' x 6 Spline 80° W.A.
Tube Profile: Square
Tube Ref: 2454D/12225
Universal Joint Dimensions: 27 x 100mm

OEM Manufacture Information

This product is not associated with any particular make or model

Suitable For Information

This product is not associated with any particular make or model

Start A Return Or Exchange

Contact Our Online Sales Team If You Have Any Questions

View full details

Bondioli & Pavesi PTO Shaft - 1210mm, 80° Wide Angle

- **Bondioli & Pavesi PTO Shaft:** High-quality, durable, and designed for optimal performance.
- **Wide Angle Design:** Essential for various agricultural applications.
- **High HP Rating:** 70 HP @ 540 RPM, 106 HP @ 1000 RPM.
- **Wide HP Rating Range:** 55 to 119 HP @ 540 RPM.
- **1 3/8'' x 6 Spline Q.R. Implement End:** Compatible with a wide range of implements.
